Keychron Q60 Max QMK/VIA Wireless Custom Mechanical Keyboard

Sale price$349.00

Type:
Color:Retro
Switches:

The fully assembled version includes:
    • The keyboard PCB, screw-in stabs, and the steel plate
    • Cherry Dye-Sub PBT keycaps (included Mac & Windows keycaps).
    • Gateron Jupiter switches

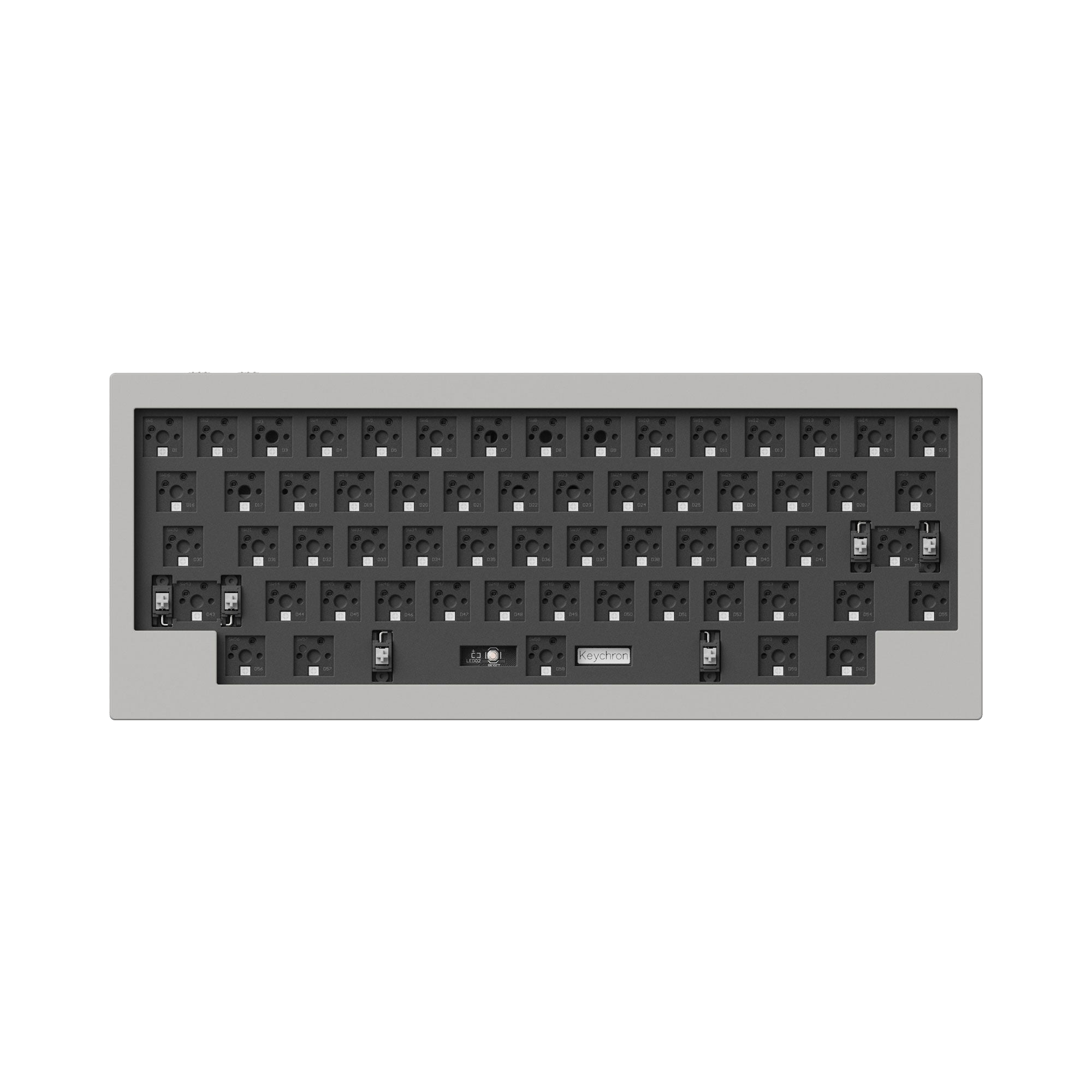

The barebone version does not include the keycaps and switches.

No discount codes can be used for Q60 Max.

Please drop your email on "Notify Me When Available" if the product model is out of stock.




Keychron Q60 Max QMK/VIA Wireless Custom Mechanical Keyboard
Keychron Q60 Max QMK/VIA Wireless Custom Mechanical Keyboard Sale price$349.00

FREE SHIPPING Over $100

30-DAY MONEY-BACK GUARANTEE

HASSLE-FREE GUARANTEE

LIFETIME CUSTOMER SERVICE

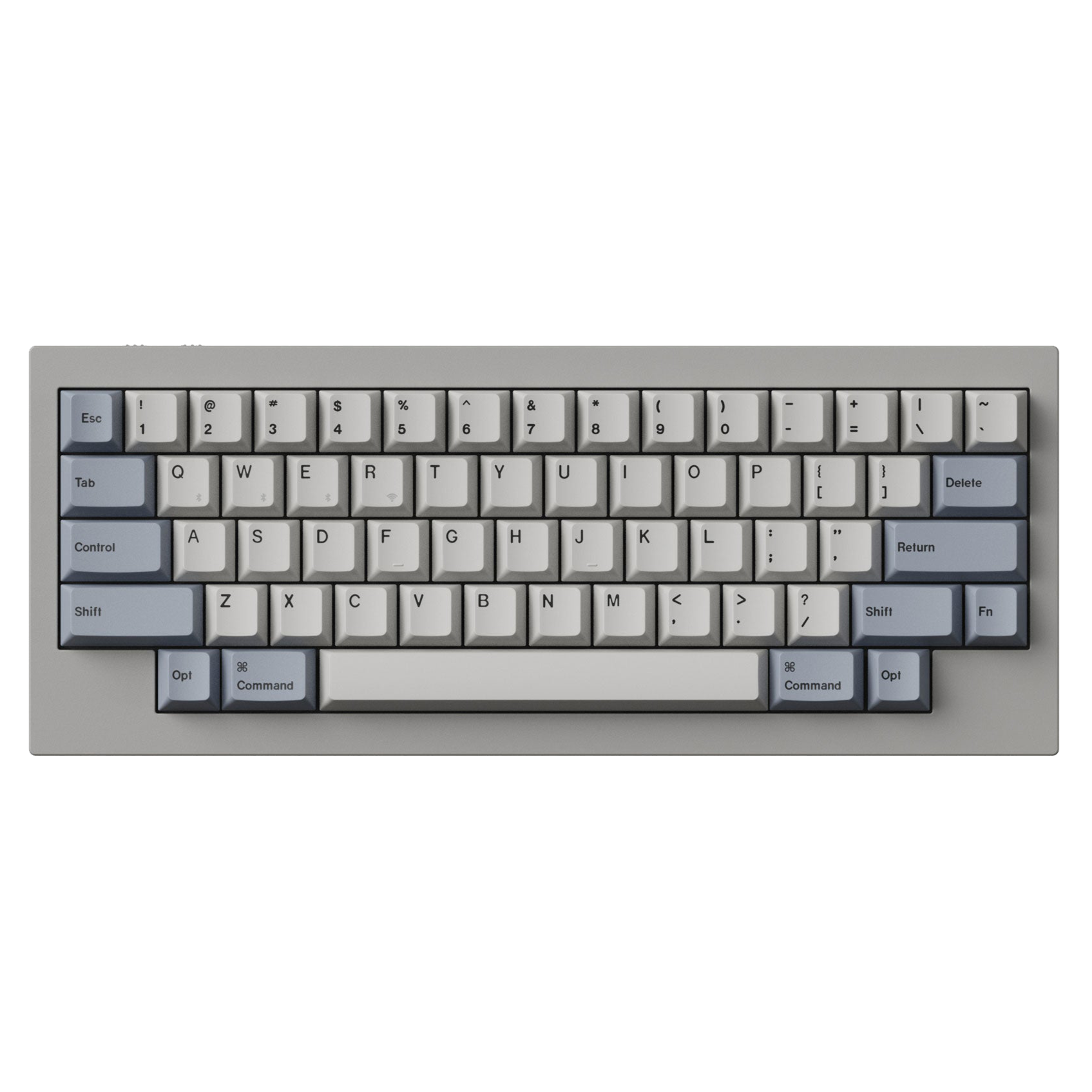

Keychron Q60 Max

Keychron Q60 QMK VIA Custom Mechanical Keyboard

The Q60 Max Keyboard offers 2.4G wireless, Bluetooth, and Type-C wired connections, you can seamlessly pair the keyboard with a computer, tablet, or smartphone. The special 60% HHKB layout, combined with the 1000Hz polling rate, provides an efficient and ergonomic design that will enhance your typing efficiency.

Features of Keychron Q60 Max QMK VIA Custom Mechanical Keyboard
Customize Your Q60 Max

Choose the switches and more keyboard accessories for your Q60 Max

2.4 GHz & Bluetooth Connection

Get ready for a brand new gaming experience with the  Q60 Max’s 2.4 GHz wireless connection with a 1000 Hz polling rate. You can also connect the Q60 Max  with up to 3 devices through its stable Bluetooth 5.1 for seamless multitasking across your computer, phone, and tablet. Switch among them swiftly.

Keychron Q60 Max QMK VIA Custom Mechanical Keyboard

A Refined Piece of Metal Art

The keyboard case is made from strong and durable 6063 aluminum, precisely shaped through CNC machining for high-quality construction. It features a powder coating finish that surpasses traditional painting in resisting wear, tear, chipping, and scratching. This comprehensive manufacturing process results in a sturdy and visually appealing keyboard case, ideal for regular use.

Keychron Q60 Max QMK VIA Custom Mechanical Keyboard

Significantly Enhanced Acoustic Foams

Elevate the typing experience with a combination of premium acoustic foams such as IXPE, PET, and Latex. Each keystroke becomes enjoyable, making every tap a delight for the senses.

Easy Assemble


We designed every component to be able to assemble easily so you can customize and adjust each component with ease to create your ultimate typing experience.

Q60-Max-structure.jpg__PID:6199c8a3-ed43-4c6e-bfe2-7d40a3a975e1
Q60-Max-structure-mobile.jpg__PID:966199c8-a3ed-430c-ae7f-e27d40a3a975

Double Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the acoustic resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

Double Gasket Design of Keychron Q60 Max Custom Mechanical Keyboard
Keychron Q60 Max QMK VIA Custom Mechanical Keyboard

An Epic Core Inside The Keyboard

A powerful ARM Cortex-M4 chip (MCU) equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box on 2.4 GHz and wired modes (90 Hz on Bluetooth mode), which makes the latency hardly noticeable even in competitive games.

Section
Drop element here

Cherry Profile Dye-Sub PBT  Keycaps

Q60 Max comes in Cherry Profile for a classic feel and features dye-sublimated technology that ensures the legends are beautifully printed on the keycaps, while the legends will not shine or wear out for decades. And it's fully compatible with MX mechanical switches.

Keychron Q60 Max QMK VIA Custom Mechanical Keyboard
Section
Drop element here
Keychron Q60 Max QMK VIA Custom Mechanical Keyboard

Switch layouts between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility with Windows devices, the Keychron Q60 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Section
Drop element here

Program Q60 Max with QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, and more.

Keychron Q60 Max QMK VIA Custom Mechanical Keyboard

Get the Q60 Max keymap working on VIA

Since the VIA code for the Q60 Max is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the Q60 Max keymap working on VIA.

Special Extra Keycaps

Q60 Max is equipped with special extra keycaps, two "System" Keycaps and two "Alt" Keycaps,  for the Windows system to better satisfy your needs.

Keychron Q60 Max QMK VIA Custom Mechanical Keyboard

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install KSA or Cherry-profile alternative keycaps on the keyboard.

Gateron Jupiter Switch

Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

Gateron Jupiter Switch Features of Keychron Q60 Max Wireless Mechanical Keyboard
All New Screw In PCB Stabilizers

All New Screw-in PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron Q60 Max also supports third-party screw-in PCB stabilizers.

Hot-Swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

Keychron Q60 Max QMK VIA Custom Mechanical Keyboard
Section
Drop element here

What's in the box?

Keychron Q60 Max Custom Mechanical Keyboard
Keychron Q60 Max Custom Mechanical Keyboard

Specs

Width121 mm
Length303.4 mm
Front Height20 mm (without keycaps)
Back Height33.8 mm (without keycaps)
Feet Height2.7 mm
Angle6.5°
Aluminum Case Finishing Coating
Body MaterialFull CNC aluminum
Plate MaterialSteel
Polling Rate1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
Weight1519.6g (Fully Assembled Version)
1353g (Barebone Version)
Backlight 22 types of RGB backlight options plus endless possibilities
Battery4000 mAh Rechargeable li-polymer battery
Stabilizer  Screw-in PCB stabilizer
Switches Gateron Jupiter (Fully Assembled Version)
Backlight South-facing RGB LED
Cable Length 1.8 m
N-Key Rollover (NKRO)  Yes for both wireless and wired modes
Bluetooth Version 5.1
Connectivity 2.4 GHz/Bluetooth / Type-C wired
Charging Time  Around 5 hours
Charging Port  USB type-C
Operating Environment-10℃ to 50℃
Compatible System  Windows/macOS/Linux
 CableType-C cable + Type-A to Type-C adapter
MCUARM Cortex-M4 32-bit STM32F402 (256KB Flash)
Hot-swappable   Yes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc.
Bluetooth Operating Distance Within 10 meters (Open space)
Bluetooth Device NameKeychron Q60 Max
Wireless Working Time (RGB) Up to 30 hours (Lowest brightness)
Wireless Working Time (Backlit off) Up to 180 hours (Lab test result may vary by actual use)
Keychron Q60 Max User Guide

Learn more about the Keychron Q60 Max such as the Q60 Max shortcuts, assembling the Q60 Max, factory reset, and more in the FAQ section.
