Keychron Thunderbolt 5 Dock (14-in-1)
Built for worldwide use with a universal 100–240V AC input, supporting both region-specific IEC C7 power cords and compatible travel adapters.
Choose options
Keychron Thunderbolt 5 Dock (14-in-1)

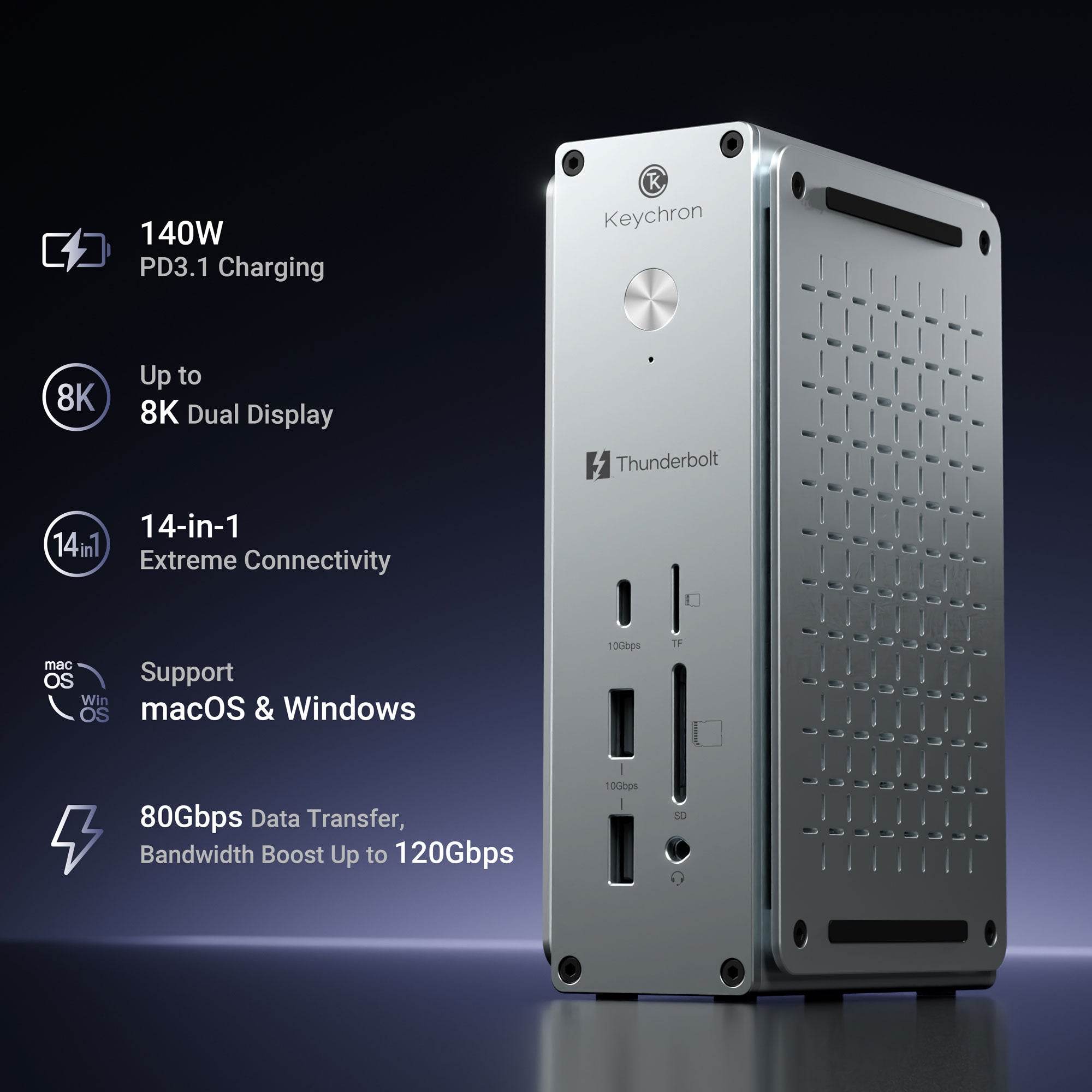

Keychron’s first dock is built for the next generation of desktop connectivity. Crafted from premium CNC-machined aluminum, this refined 14-in-1 docking station delivers a clean, Mac-style aesthetic and redefines how your professional workspace connects. Powered by Thunderbolt 5, it delivers lightning-fast 80Gbps bidirectional data transfer, Bandwidth Boost up to 120Gbps for professional workflows, stunning dual 8K display support, and up to 140W laptop charging. It brings massive desktop expansion into a single high-speed setup, unlocking maximum productivity across macOS and Windows devices.
SPECS
| Product Name | Keychron Thunderbolt 5 Dock |
|---|---|
| Host Interface | 1x Thunderbolt 5 Upstream Port |
| Thunderbolt Bandwidth | Up to 80Gbps bi-directionalbandwidth, Bandwidth Boost up to120Gbps |

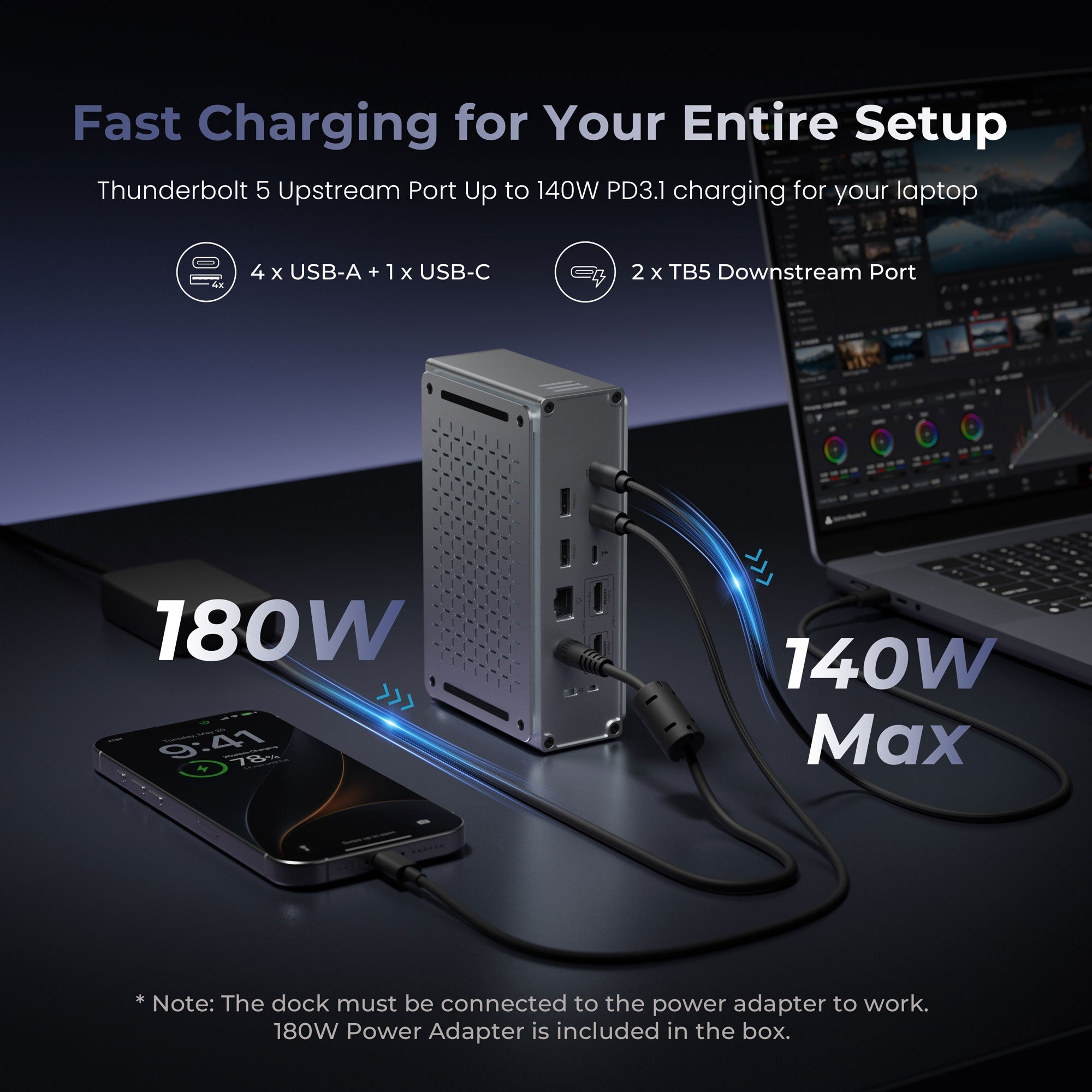

| Host Charging | Up to 140W Power Delivery (PD 3.1) |

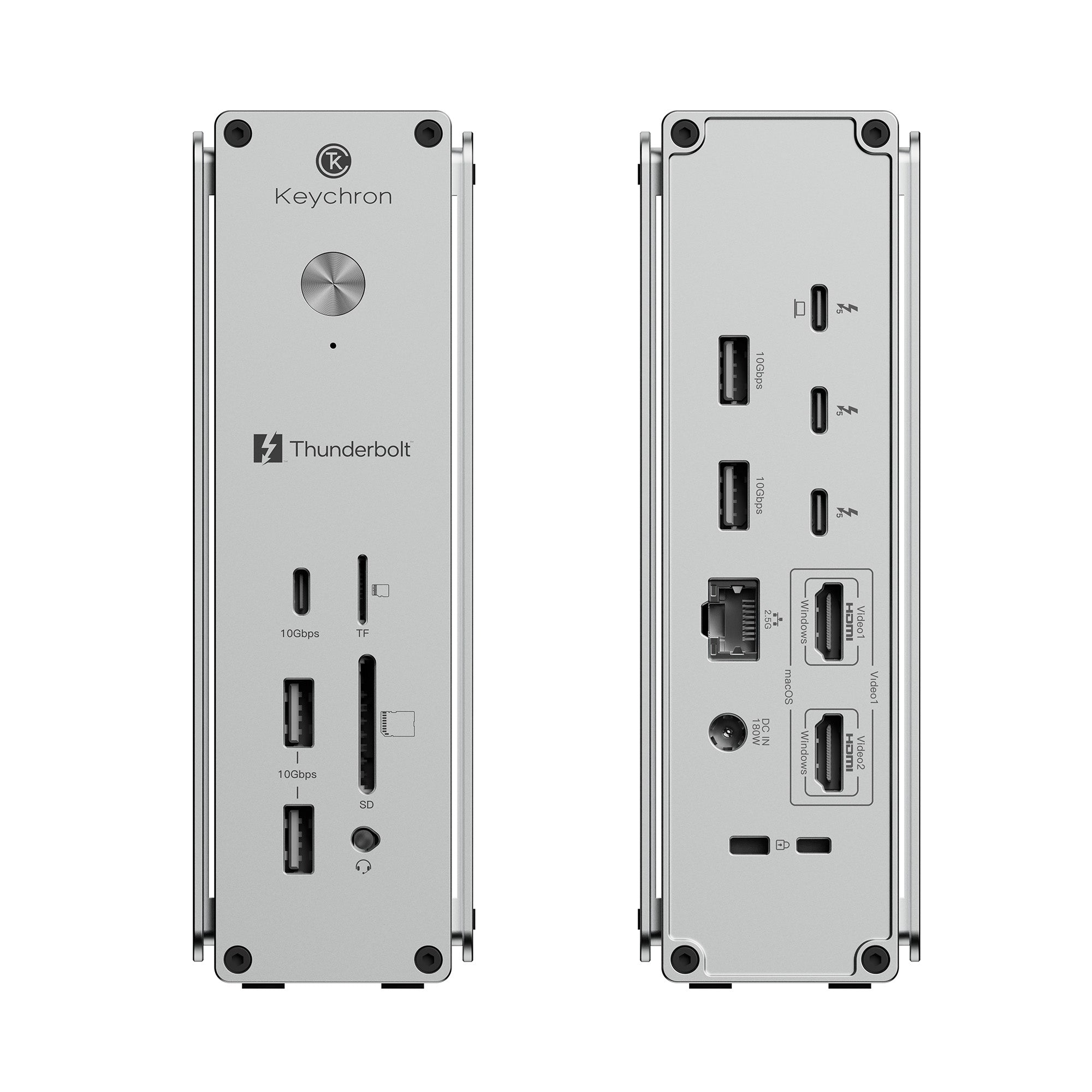

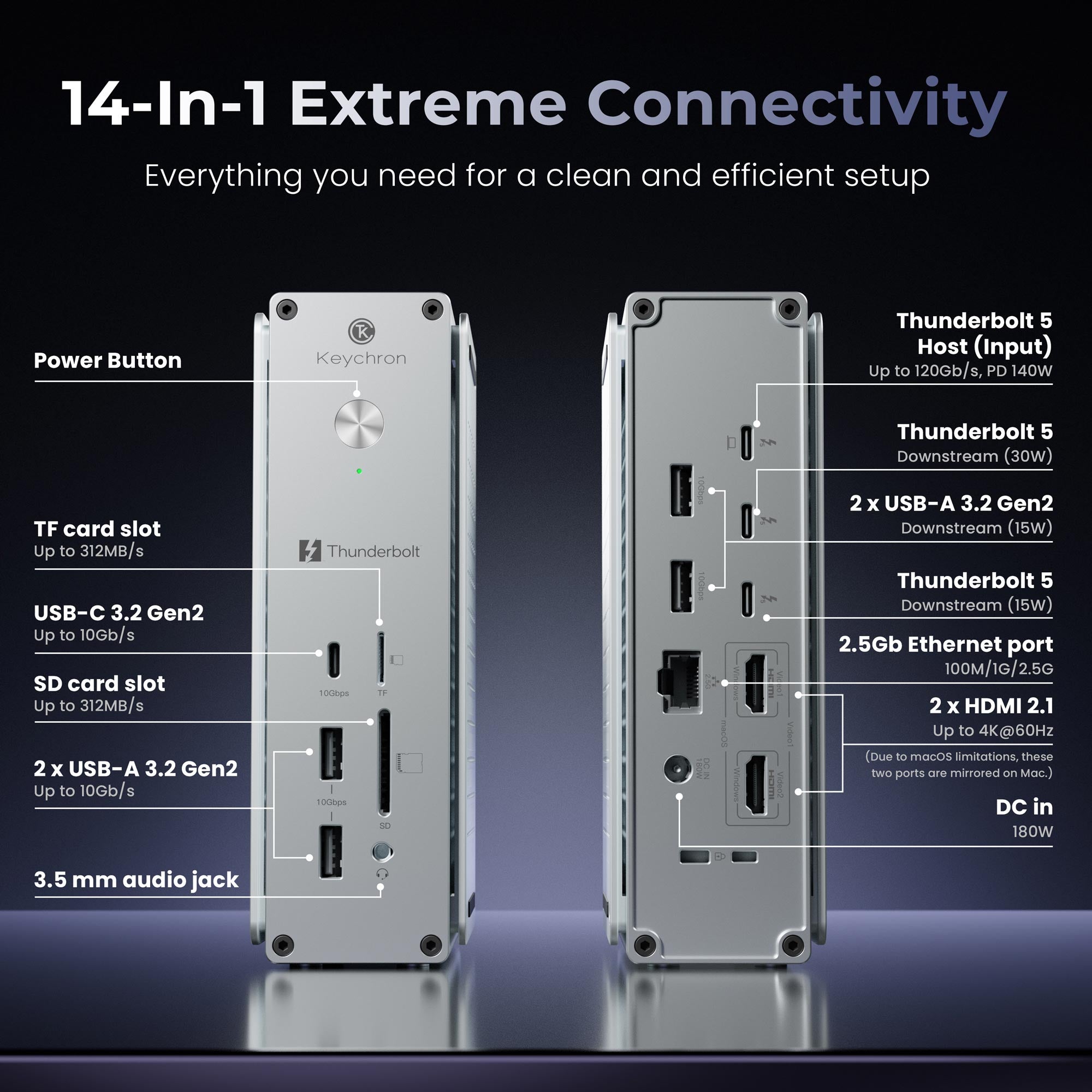

| Total Ports | 14 |
| Thunderbolt Ports | 1 × Thunderbolt 5 Upstream (140W PD) 1 × Thunderbolt 5 Downstream (30w) 1 × Thunderbolt 5 Downstream (15W) |
| USB Ports | 4 × USB-A 3.2 Gen 2 (10Gbps) 1 × USB-C 3.2 Gen 2 (10Gbps) |
| Video Outputs | 2 × Thunderbolt 5 (Up to 8K@ 60Hz) 2 × HDMI 2.1 (UD to 4K@60Hz) |
| Ethernet | 1 x2.5Gb Ethernet Port |
| Card Reader | SD / microSD (TF) UHS-II, up to 312MB/s |
| Audio | 3.5mm Audio Combo Jack |
| Power Input | DC 180W |
| Material | Aluminum Alloy |
| Dimensions | 164.5 x 97.5 x 52.9 mm |
| Weight | 856g (+-10g) |
| Supported OS | Windows 7/8/10/11 macOs 10.12 or later |
| Operating Environment | Temperature: 0°C to 40°°C Humidity: 20% to 85% (no condensation) |
| Storage Environment | Temperature: -20°C to 45°C Humidity: 10% to 90% (no condensation) |
