Keychron V10 Max QMK/VIA Wireless Custom Mechanical Keyboard

(0.0)
Sale price$159.00

Type:
Color:Carbon Black
Switches:

FREE SHIPPING Over $100

30-DAY MONEY-BACK GUARANTEE

HASSLE-FREE GUARANTEE

LIFETIME CUSTOMER SERVICE

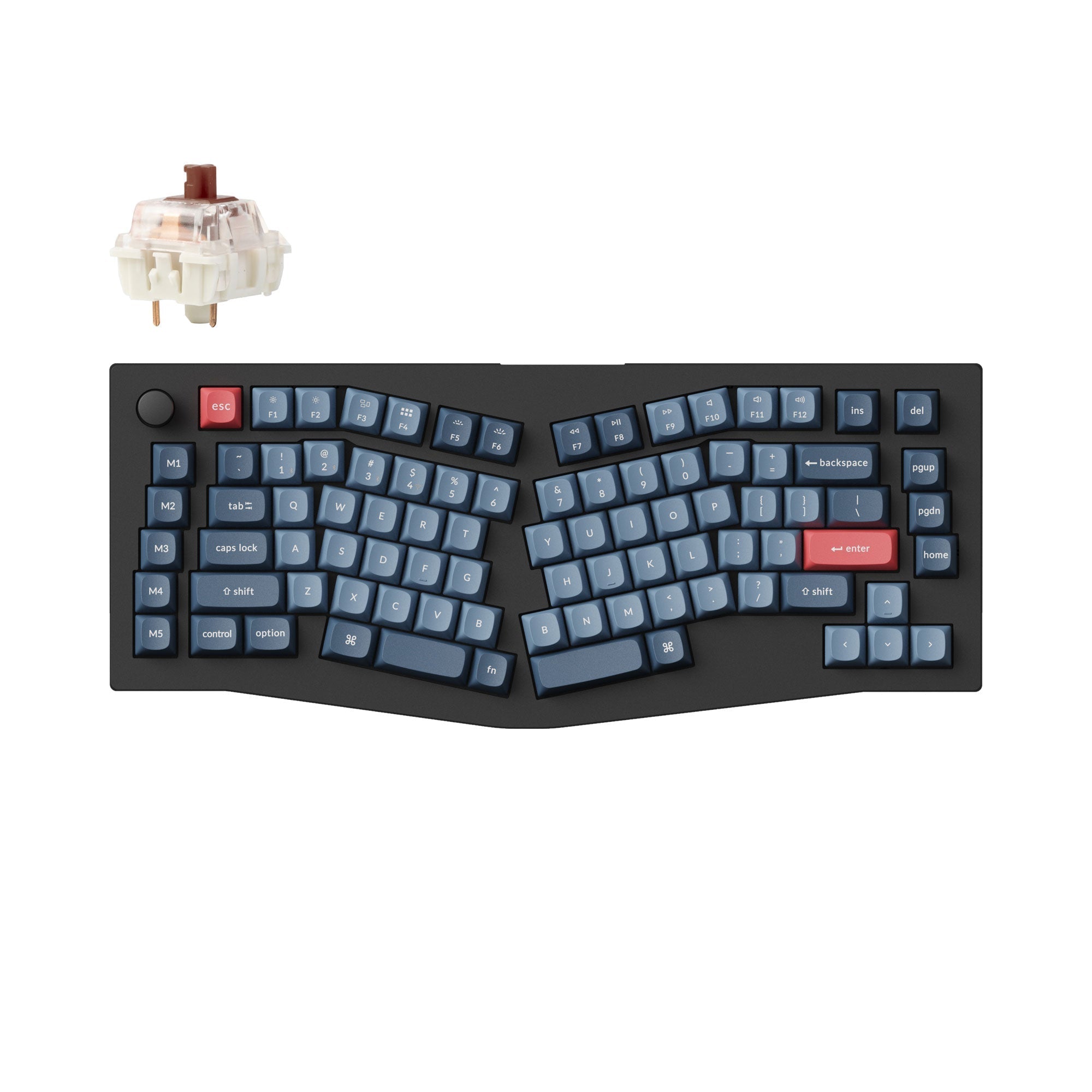

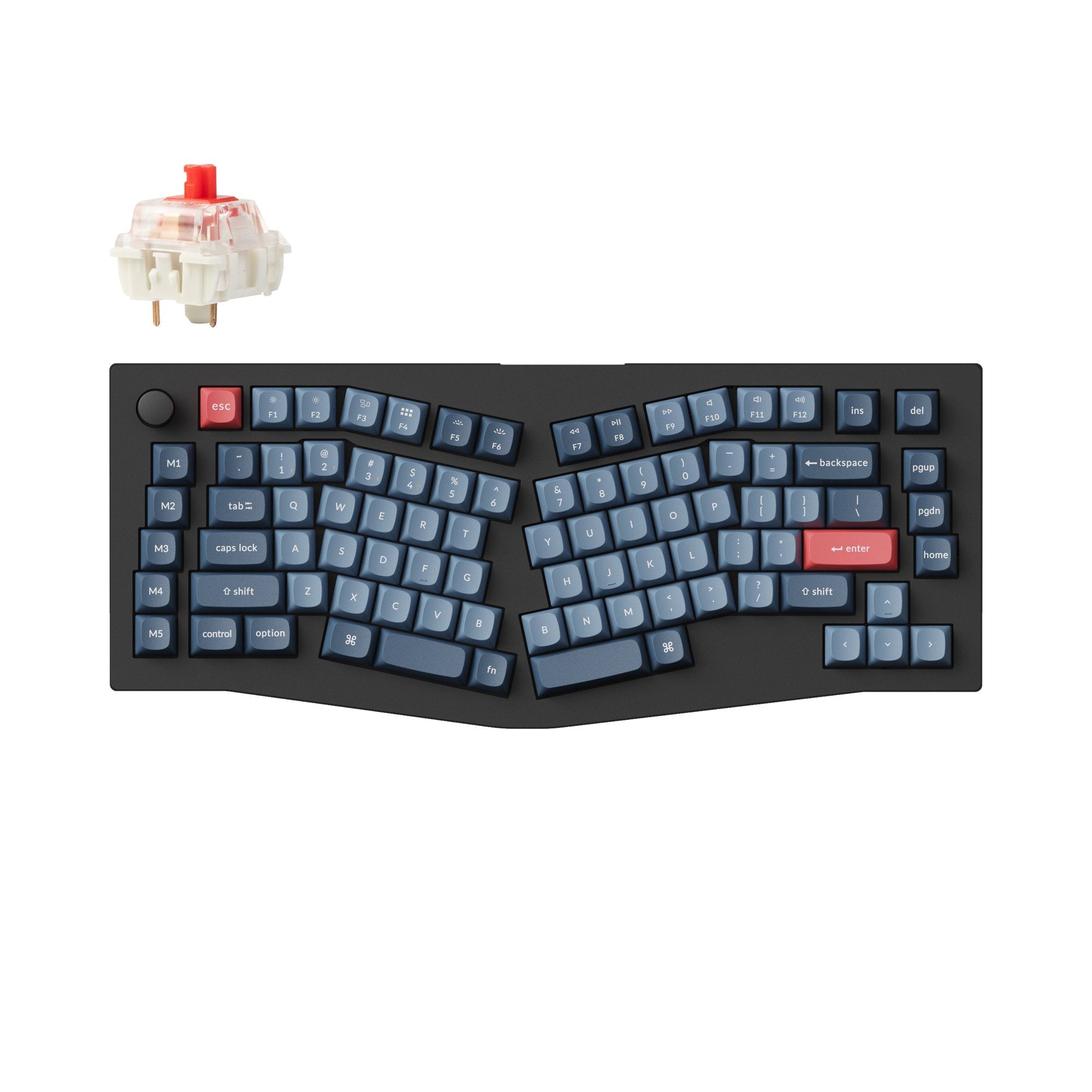

Keychron V10 Max 2.4G wireless QMK mechanical keyboard

Keychron V10 Max

The V10 Max is a premium, customizable mechanical keyboard that offers both 2.4 GHz wireless and Bluetooth 5.1 connectivity. With its 75% Alice layout, gasket mount construction, sound-absorbing foam, and double-shot PBT keycaps, it ensures a superior typing experience, delivering enhanced comfort and efficiency.

Keychron V10 Max 2.4G wireless QMK mechanical keyboard
Keychron V10 Max 2.4G wireless QMK mechanical keyboard
Section
Drop element here

2.4 GHz & Bluetooth Connection

Achieve optimal gaming performance with the 2.4 GHz wireless connection, featuring a swift 1000 Hz polling rate. For smooth multitasking between your computer, phone, and tablet, the V10 Max allows for easy connection to three devices via Bluetooth 5.1.

Keychron V10 Max 2.4G wireless QMK mechanical keyboard

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every parts the way you want.

Keychron V10 Max 2.4G wireless QMK mechanical keyboard
Section
Drop element here

Dual Receivers

For a better 2.4 GHz wireless experience, the V10 Max comes with Type-C and Type-A receivers. Enjoy the quick plug-and-play time. Or, put them away in the keyboard magnetic storage slot at the top right corner.

Keychron V10 Max 2.4G wireless QMK mechanical keyboard
Keychron V10 Max 2.4G wireless QMK mechanical keyboard

An Epic Core Inside The Keyboard

A powerful ARM architecture MCU equipped with 256K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.

OSA Profile Double-shot PBT Keycaps

These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

Keychron V10 Max 2.4G wireless QMK mechanical keyboard
Keychron V10 Max 2.4G wireless QMK mechanical keyboard

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V10 Max comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

Gasket Mount Design

By adopting a gasket mount design along with a PC (Polycarbonate) plate, the V10 Max reduces acoustic resonance, delivering a softer and quieter typing experience with enhanced flexibility.

Keychron V10 Max 2.4G wireless QMK mechanical keyboard

Program V10 Max with QMK & VIA

With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.

Get the V10 Max keymap working on VIA

Since the VIA code for the V10 Max is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the V10 Max keymap working on VIA.

Download V10 Max Knob ANSI (US) Keymap JSON File

Hot-swappable

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

Keychron V10 Max 2.4G wireless QMK mechanical keyboard

South-facing RGB LED Lights

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Gateron Jupiter Switch

Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.
The banana switch provides an early tactile bump at the top with a uniquely smooth experience like those Panda switches on the market.

Gateron Jupiter Switch Features of Keychron V10 Max Custom Mechanical Keyboard

Screw-In PCB Stabilizers

Even small part matters for your fingertip feel. We’ve integrated the PCB-mounted screw-in stabilizers for a smoother typing experience with less wobbliness on the big keys such as space bar, shift, enter, and delete. The Keychron V10 Max also supports third-party screw-in PCB stabilizers.

Looking for ISO Layout?

The V1 ISO collection comes with fully assembled keyboards with 🇬🇧UK, 🇩🇪German, 🇩🇰🇫🇮🇮🇸🇳🇴🇸🇪Nordic, 🇨🇭Swiss, 🇫🇷French, and 🇪🇸 Spanish layout.

Check The V1 ISO Layout Collection

What's in the box?

Package list of Keychron V10 Max Custom Mechanical Keyboard
Package list of Keychron V10 Max Custom Mechanical Keyboard

Specyfikacja

Width146.5 / 163.5 mm
Length389.6 mm
Front Height18.7 mm  (without keycaps)
Back Height27.2 mm (without keycaps)
Feet Height3 mm
Angle3.5° / 7.5° / 9.5°
Weight958 ± 10 g (Fully Assembled Version)
Body MaterialABS Plastic
Plate MaterialPC
Polling Rate1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
Mount StyleGasket Mount Design
Battery4000 mAh Rechargeable li-polymer battery
Wireless Working Time (Backlit off)Up to 225 hours (Lab test result may vary by actual use)
Wireless Working Time (RGBUp to 100 hours (Lowest brightness)
Charging TimeAround 5 hours
Bluetooth Version5.1
Compatible SystemWindows/macOS/Linux
N-Key Rollover (NKRO) Yes for both wireless and wired modes
Hot-swappableYes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX, Kailh, etc.
Keycaps (Fully Assembled Version)
Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
SwitchesGateron Jupiter (Fully Assembled Version)
MCUARM Cortex-M4 32-bit STM32F402 (256KB Flash)
BacklightSouth-facing RGB LED
StabilizerScrew-in PCB stabs
Charging PortUSB Typ-C
CableType-C cable + Type-A to Type-C adapter
Operating Environment-10℃ to 50℃
Bluetooth Device NameKeychron V10 Max
Section
Drop element here
Keychron V10 Max User Guide

Learn more about the Keychron V10 Max such as the V10 Max shortcuts, assembling the V10 Max, factory reset, and more in the FAQ section.
