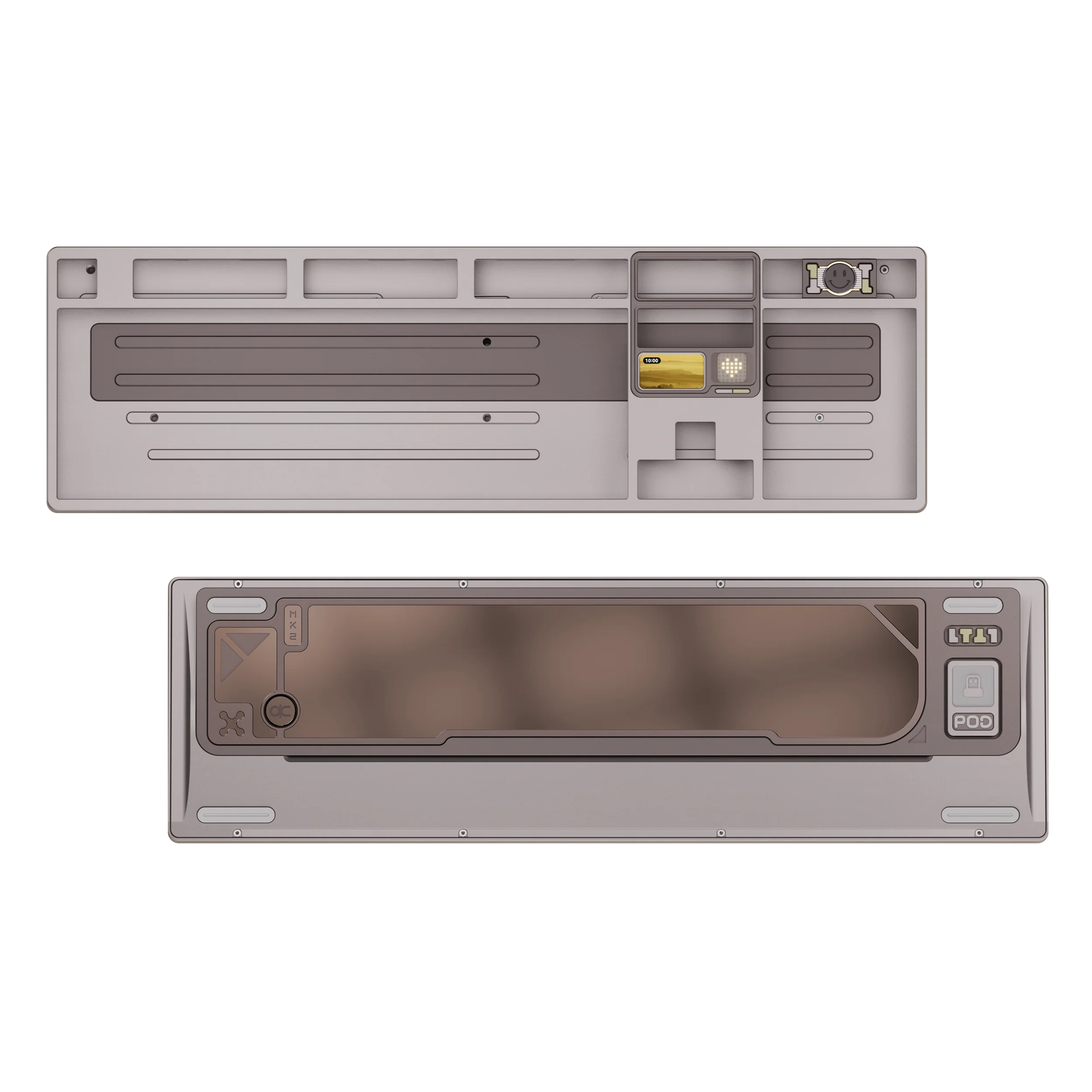

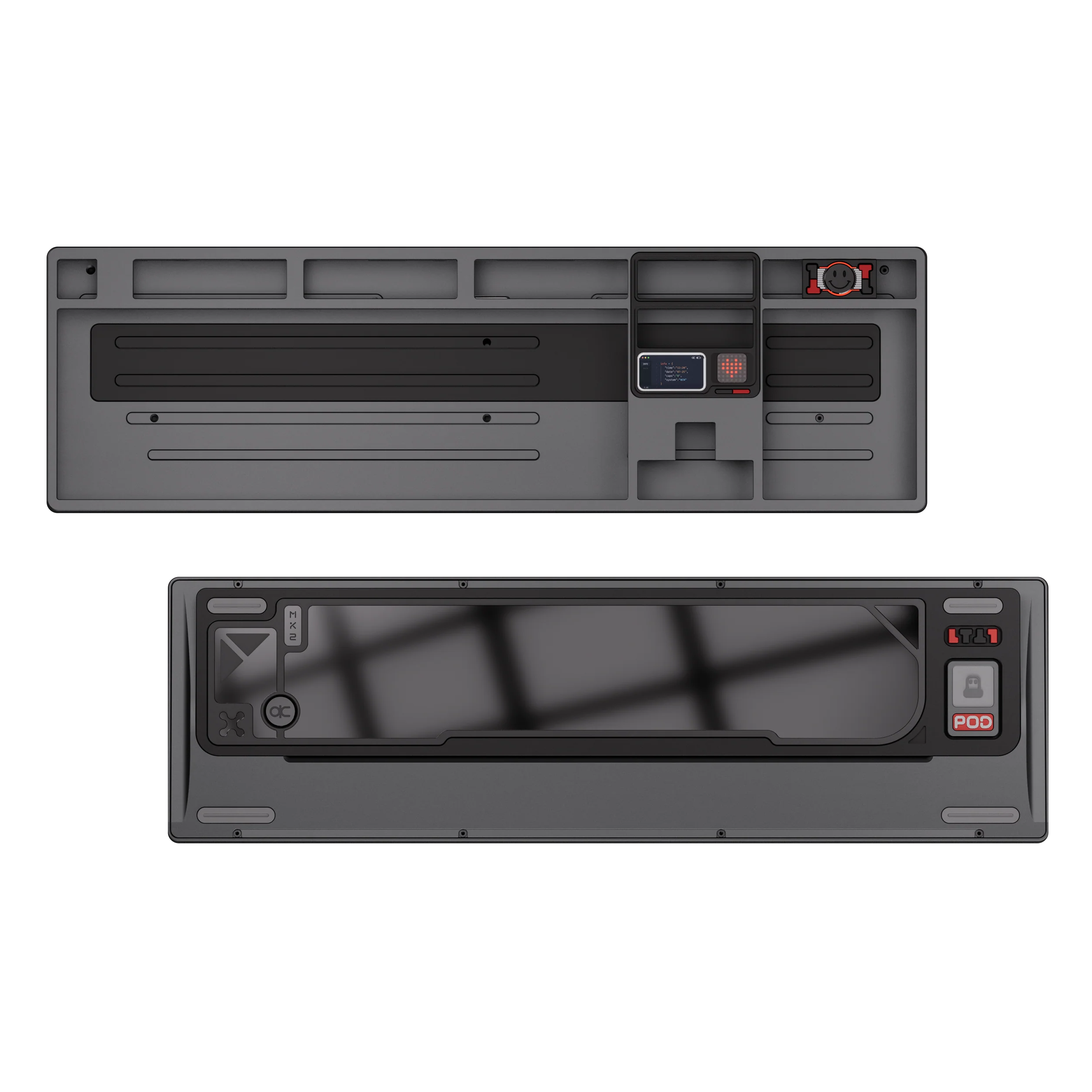

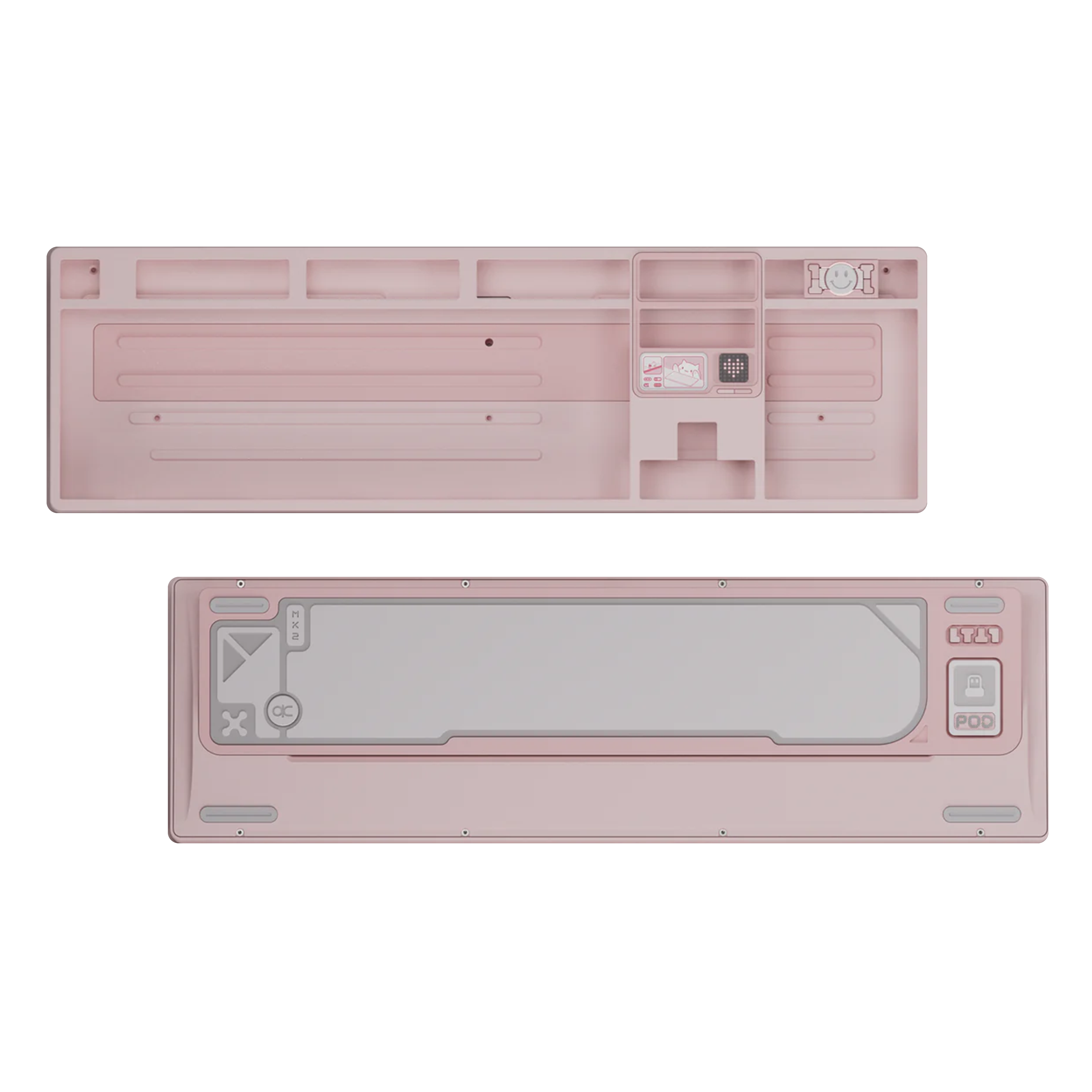

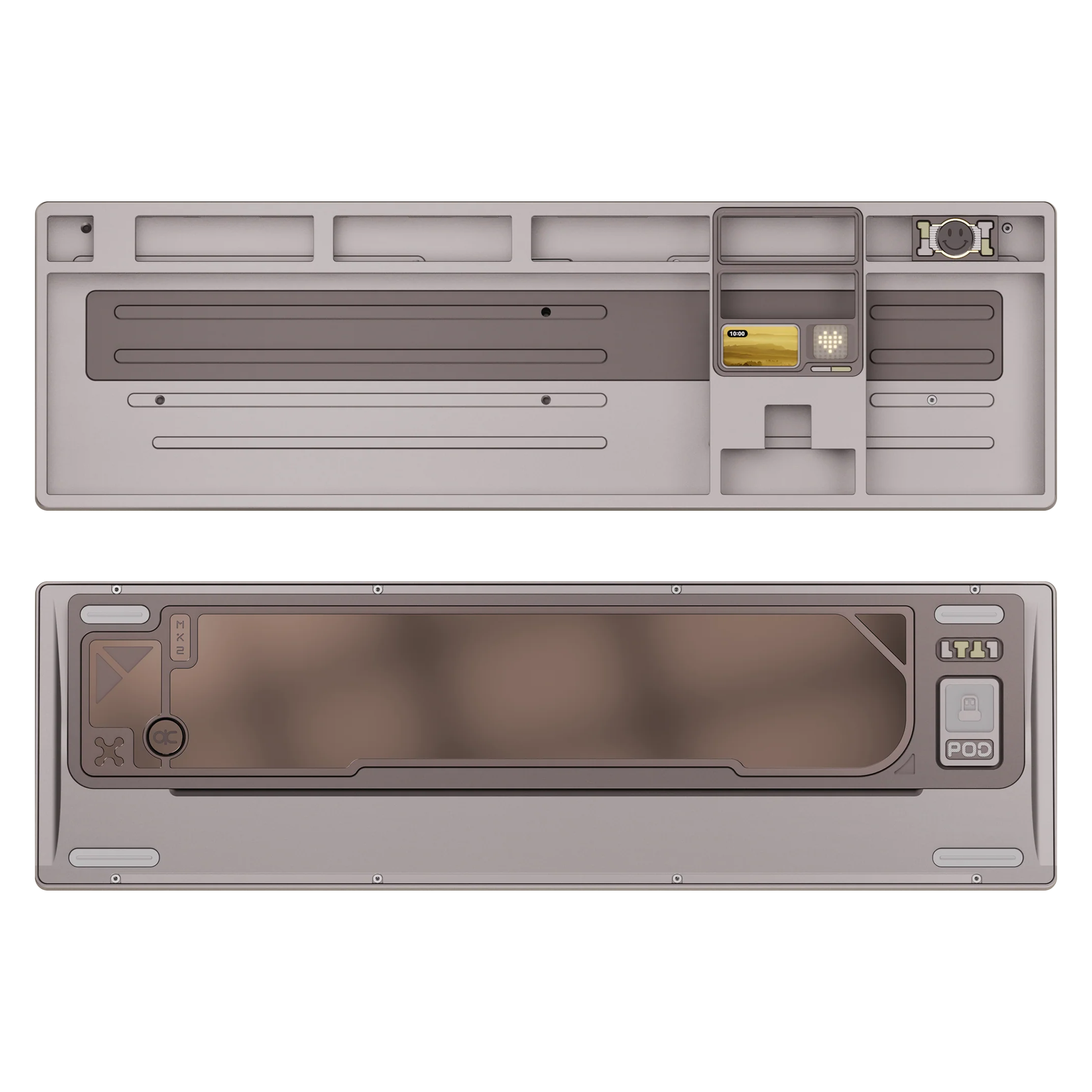

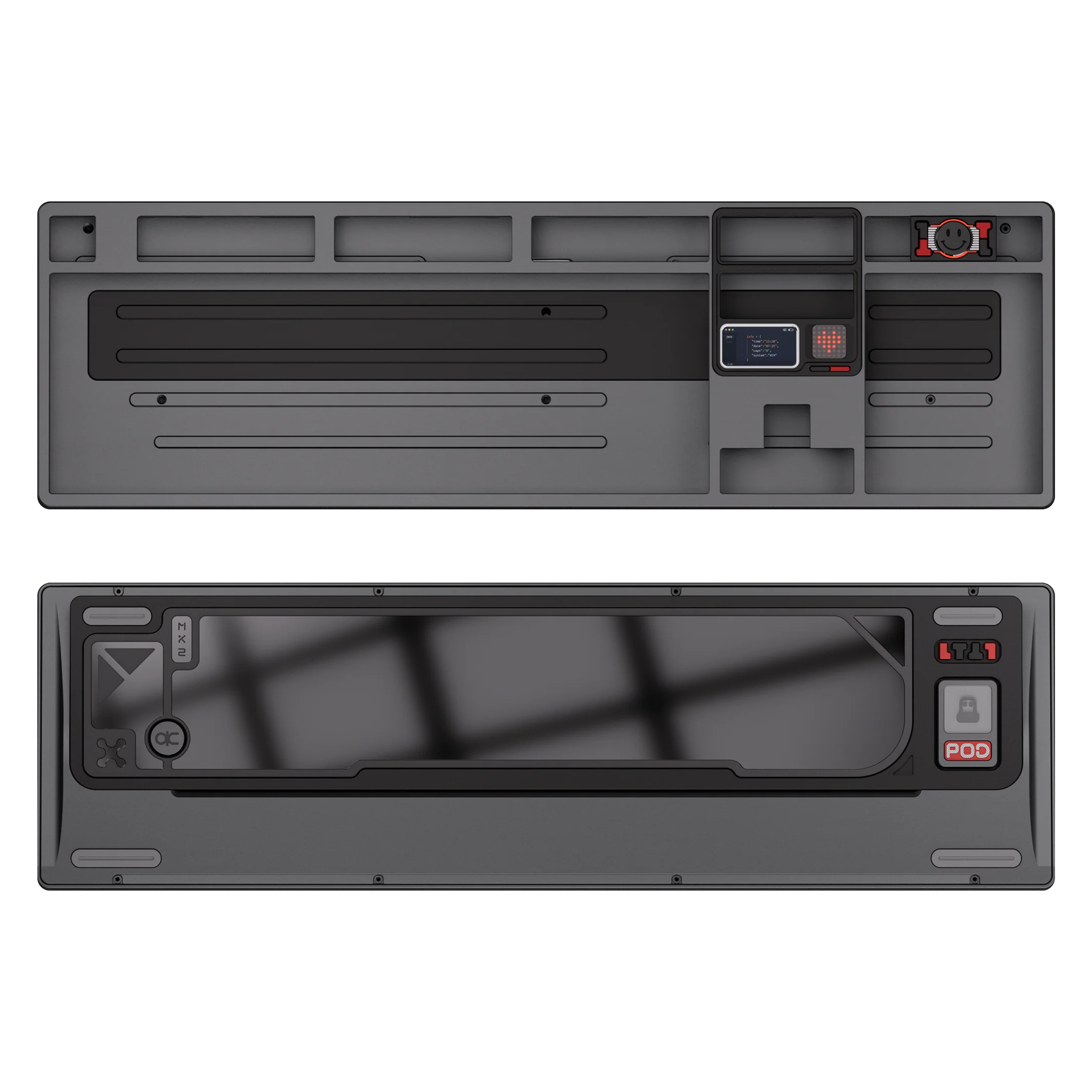

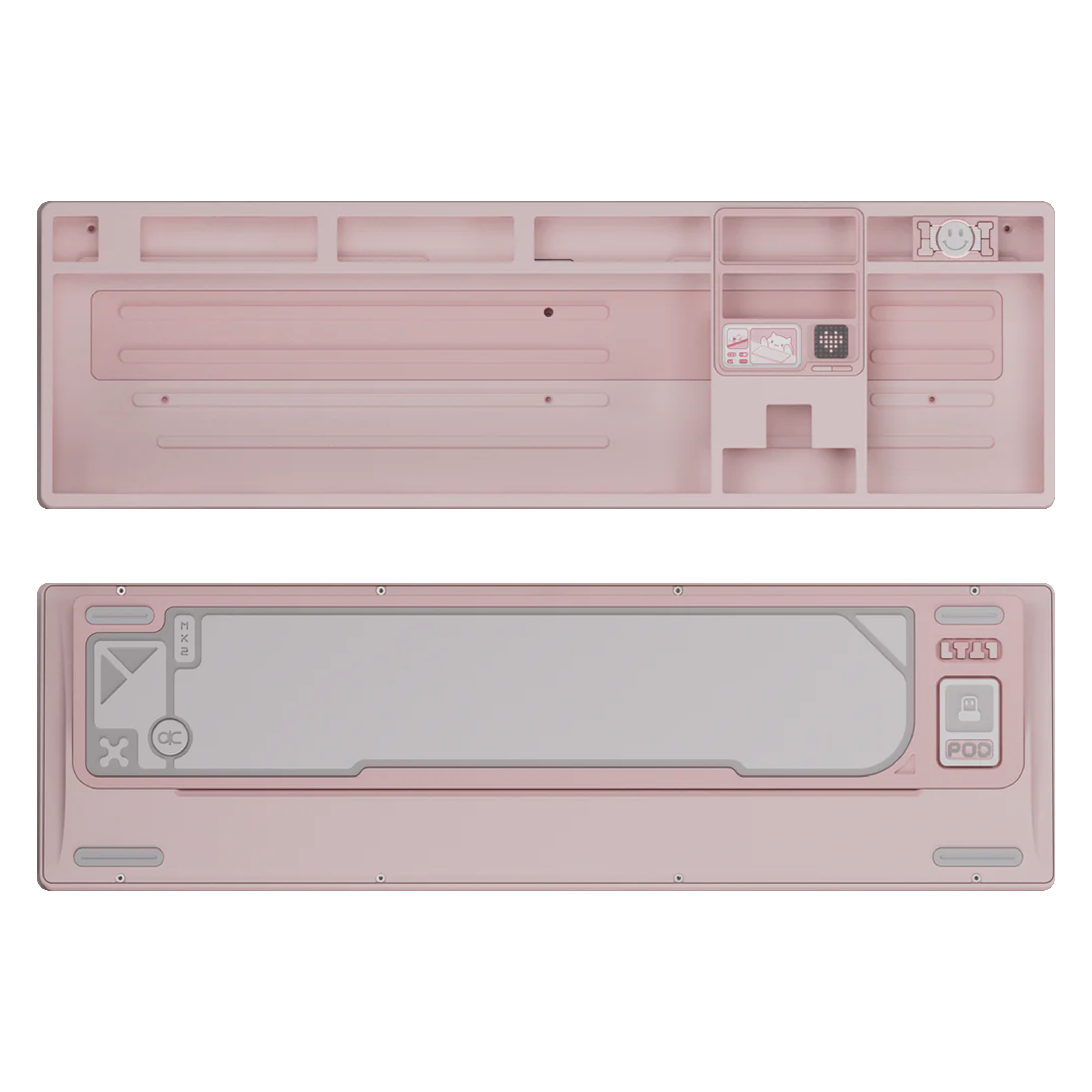

Qwertykeys QK101 Custom Wireless Mechanical Keyboard Barebone with WK+1.2mm Tri-mode Flex-cut Hotswap PCB with RGB+FR4 plate with cushion
- RGB Lighting
- Customizable Screen
- Wireless Support
- ISO Support
Pickup currently unavailable at Mastex Corporation
Qwertykeys QK101 Custom Wireless Mechanical Keyboard Barebone with WK+1.2mm Tri-mode Flex-cut Hotswap PCB with RGB+FR4 plate with cushion
Spray-coated Black
Mastex Corporation
Unit 12, 163-179 Forster Road
Mount Waverley VIC 3149
Australia
Choose options
QK101
Custom Wireless Mechanical Keyboard Barebone
(WK1.2mm Tri-mode Flex-cut Hotswap PCB (with RGB)+FR4 plate with cushion (PCB-stab)
Stunning Color Options
Thoughtful Design, Premium Quality
Dual-Mounting System
Bouncy Gasket Mount
The PCB gasket mount features enhanced flexibility while maintaining a consistent typing feel.
Firm Gasket Mount
For a firmer typing experience, you can flip the gasket mount over. This creates more contact between the gasket and bottom case, resulting in a more rigid feel.
Top Mount
For those seeking the firmest setup, the top mount option secures screws directly into the top case, providing maximum stability and an extremely solid typing experience.
Customizable Screen
Support custom GIFs for the foreground and background separatelyThe GIFs' playback speed automatically adjusts to match your typing speedBesides the themes available on the QK80 MK2, the QK101 features enhanced screen customization through its new dynamic theme
Back Design
Similar to the QK80 MK2, the QK101 also features Magnetic Badges Dongle Pod on the back, with a weight design that maintains the same theme. However, the QK101 has eliminated the rear RGB lighting found on the QK80 MK2, replacing it with four "T" and "L" badges that better complement the front design.
Interchangeable Badges
Above the number pad, we've added magnetic badges that spell out "101". These customizable badges offer several interchangeable options:
Circular badge: The circular badge on the front features a smiley face to bring positivity and joy, and can be swapped with the circular logo badge on the weight.
"1" badges: The two "1" badges on the front can be swapped with the "T" and "L" badges on the right side of the back.
Exceptional Craftsmanship
Plate Cushion
Plate cushion above the plate enhances the sound profile of different switches
Tri-mode Connectivity
Support wired, Bluetooth, and 2.4GHz connectivity
220-mesh Sandblasting Process
Enjoy an extremely smooth and vivid finish
Product Layout
Essential Information
Specifications
Typing angle：7 degree
Front height：19 mm
Size：133mm * 442 mm
Weight：1.855kg before build
Tri-mode Flex-cut Hotswap PCB w/Per-key RGB
- 1.2mm thick
- Per-key RGB
All PCBs:
1. Support USB-C, Bluetooth, and 2.4GHz connections
2. Compatible with both ANSI and ISO layouts (ISO layout requires PCB-mount stabilizer plate)
3. Support both WK and WKL layouts
4. Compatible with both 6.25u and 7u spacebars (7U requires PCB-mount stabilizer plate)
5. Using QK's custom VIA web configurator for keymapping and screen customization, as standard VIA doesn't support advanced screen functions
Content List
Keyboard case
- Includes pre-installed screen module and screen daughterboard
- Includes two pre-installed 4000 mAh batteries
- Includes four pre-installed rubber feet
- Includes pre-installed PCB daughterboard with magnetic connector
- Includes 2.4GHz USB dongle stored under the back badge
PCB Kit
- PCB of your choice
- PET sheet (included only with per-key RGB PCB)
- IXPE sheet
- PCB foam
Plate of your choice
Case foam and anti-static protective filmSilicone gaskets
LED diffusers
Top-mount mounting screws
Free Gifts(Disclaimer: If any of these gifts is missing or is damaged, they will not be re-shipped or replaced):
- Phillips screwdriver and Torx screwdriver
- Keyboard Protective case
- Keycap & Switch puller
- Stabilizers (type varies based on plate selection)
- Complimentary front badge
- Backup rubber feet
- USB-C cable
Please note:
- Plates designed for plate-mount stabilizers only support the 6.25u spacebar ANSI layout. For 7u spacebar or ISO layout builds, please choose PCB-stab plates.
- Although the plate-stabilizer plate is compatible with the WKL case, the bottom row must be built in a 1.5u + 1.25u + 6.25u + 1.25u + 1.25u + 1.5u layout. For most users' typing preferences, we recommend using PCB-stabilizer plates with the WKL case.
- Spray-coated Black* case contains micro-glitter.
- Per-key RGB lighting significantly increases power consumption, substantially reducing the keyboard's battery life in wireless modes. If you're not a big fan of per-key RGB, we strongly recommend choosing the non-RGB PCB for better battery performance.
- Renders are for reference only. Please note that actual product colors may vary under different lighting conditions. Color differences between the render and the actual product will not be considered a quality issue.
- Mass-produced product uses Torx case screws instead of Phillips screws.
