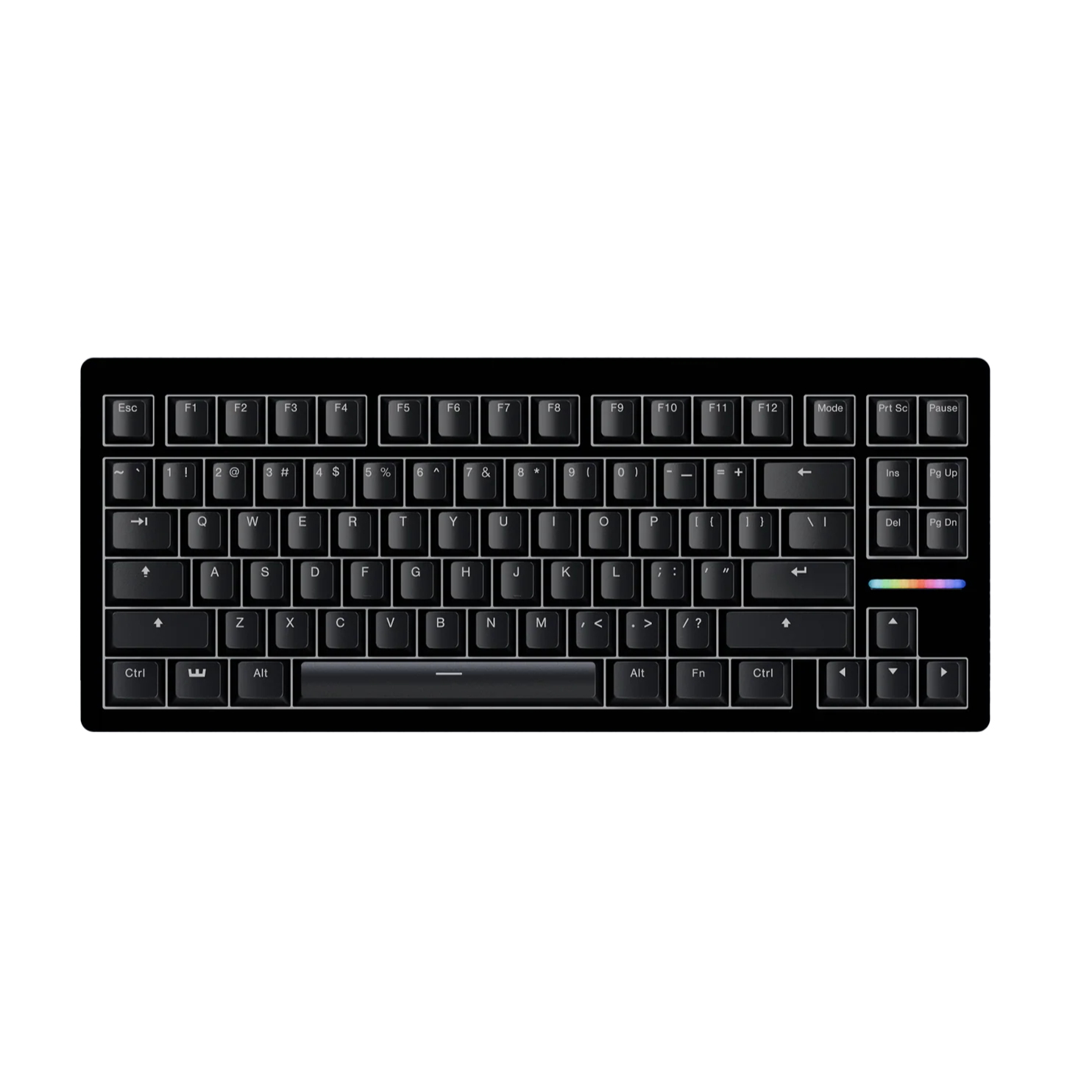

Wooting 80HE Zinc Alloy QMK Wired Magnetic Custom Keyboard

Meet the 80HE

Everything you'd expect from Wooting in an 80% layout.

We’ve applied everything we’ve learned so far, making the 80HE our most complete keyboard yet. With several new elements improving the sound, adding new features that enhance your gaming performance and implementing true 8kHz polling to make it our fastest keyboard to date.

Analog Input Unleashed

Full range switch motion.

The Wooting 80HE detects full switch motion with 0.1mm accuracy from start to end. Every single key outputs an analog signal that can be used for numerous features that enhances your typing and gaming experience.

There is no compromise to be made in what a regular ol’ keyboard might have to offer. Welcome to the future.

True 8kHz Polling Rate

0.125ms Latency.

The 80HE supports up to 8kHz USB polling while also scanning every analog key position at that same rate, providing you with a True 8kHz polling experience. This lowers your keyboard latency to only 0.125ms.

Adjustable Actuation

A pretty "sensitive" subject.

Eliminate the slowest element in input latency; the initial key press travel before key activation. You have full control over your actuation point from 0.1 to 4.0mm.

Configurable per key in 0.1mm steps, you can customize each key towards your playstyle.

Rapid Trigger

Unmatched performance.

Eliminate the second slowest element in input latency; return key press travel before key deactivation. Rapid Trigger dynamically changes the actuation and deactivation point. Your keys will activate when you intend to press them and deactivate when you intend to let go.

You can repeat a key press mid motion without needing to surpass a fixed reset or actuation point for rapid presses.

Rappy Snappy

We first brought you Rapid Trigger, now we bring you Rappy Snappy pat. pending.

Rappy Snappy monitors at least 2 selected keys and activates the key pressed the furthest. When combined with Rapid Trigger, it'll compare the keys only when in an active state. Allowing pre-pressing and faster activation on opposite key release. When both are active at the same depth, it'll resort to your selected SOCD resolution. This enhances your (counter) strafing, bunny hopping, and block/parry/combo timing in various games.

Gasket Mount

Less noise, softer feel.

The PCBA and switch plate are held together by a silicone gasket. This absorbs impact, resulting in less noise and a softer feel when you type.

PC Plate

Softer sound, more flex.

The PC plastic switch plate softens the overall typing experience by muting more of the higher frequencies and placing an emphasis on "thock".

Screw-in Stabilizers

Eliminate rattle.

The Wooting 80HE is equipped with screw-in stabilizers to eliminate rattle. They’re also replaceable with most third-party screw-in and clip-in stabilizers.

Lekker L45

Key start force：30cN
Key end force：45cN

Lekker L60

Key start force：40cN
Key end force：60cN

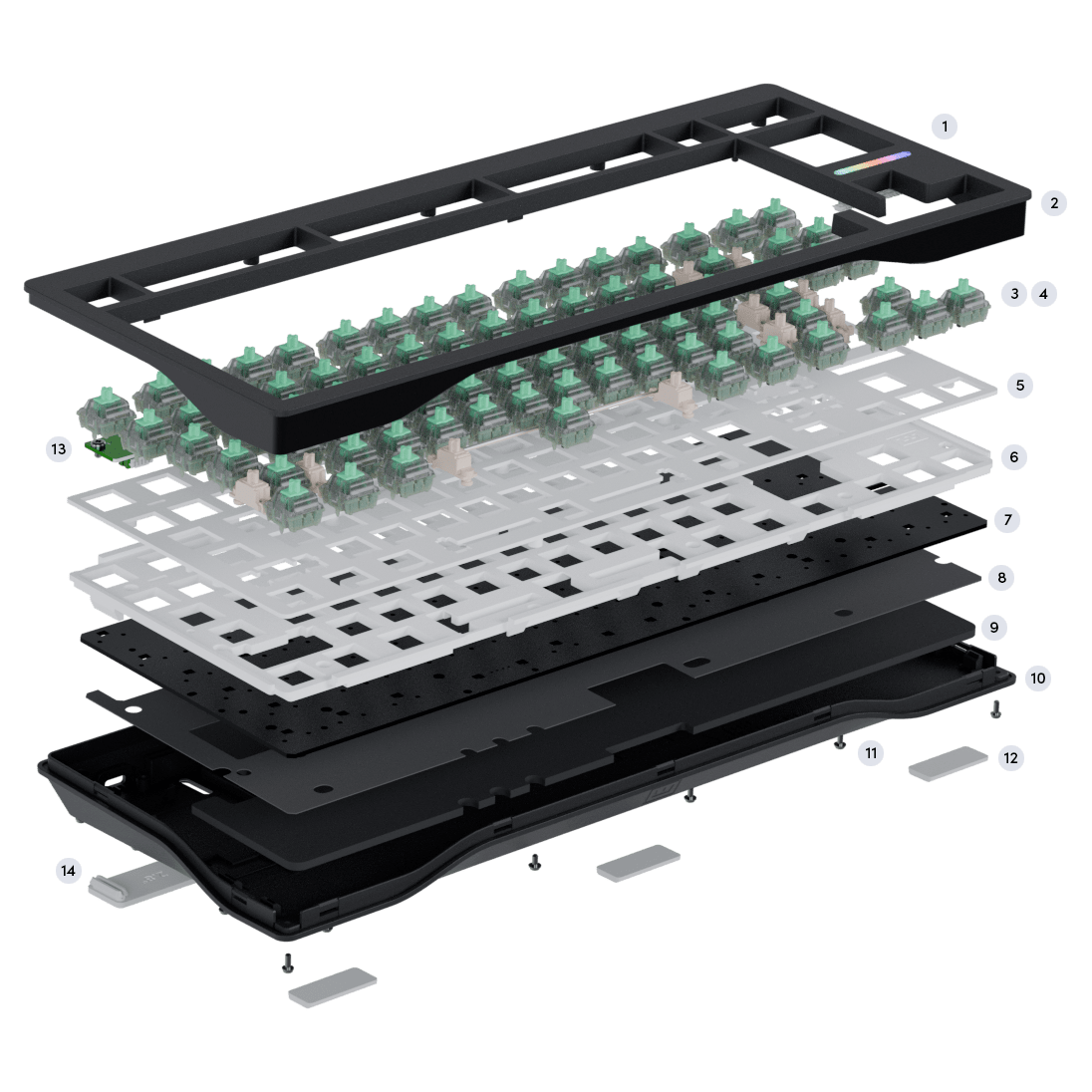

WYSIWYG

1. LED bar
2. PCR ABS Plastic top case
3. Lekker V2 L60 switches
4. Screw-in stabilizer
5. PC switch plate
6. Silicone sandwich pad & gasket-mount
7. PCBA
8. PET film "tape mod"
9. EPDM foam
10. PCR ABS Plastic bottom case
11. M2x5 Screws
12. Silicone feet
13. USB daughter board
14. Interchangeable silicone angled feet

Remap any key

You can map each key however you see fit over multiple layers and profiles. You won't be forced to learn silly function layers with non-descriptive icons and utilize every key you see fit. You have full control over your productive workflow with remap.

Advanced Keys

Set advance keys such as mod tap, DKS, and toggle key to increase your efficiency and uncover peak productivity.

Sustainability

Step by step to a sustainable future.

We're committed to learn how to and adapt our products to be environmental friendlier without compromising quality. The 80HE applied our first wave of changes.

The top and bottom case of the 80HE are made of 65% Post Consumer Recycled (PCR) ABS plastics. You’ll make an eco-friendly choice without trading it for durability. Alternatively the zinc alloy metal case is an infinitely recyclable material.

The packaging is made of FSC certified cardboard and all our "plastic" bags are made by compostable material.
