Gamdias ARGB 340mm IPS LCD Display Liquid CPU Cooler Support Intel LGA 1700/1200/1151/2011 AMD AM5/AM4

(0.0)
Sale price$199.00

NEXT GENERATION COOLING

• IPS LCD Screen
• Customize LCD Background (png / gif / jpg)
• Micro-embedded Fan for Motherboard Cooling
• CHIONE CAST Software
• LCD Screen Orientation
• Control Lighting Effects / Brightness / Speed / Direction
• Show System Information (with customized image)
• Motherboard sync ARGB
• Durable Teflon Tube with Aesthetic Nylon-braided Tube Sleeve
• High Static Pressure Hydraulic PWM fan
• USB AEOLUS Box
• Support LGA 1700 / AM5 / TR4

NEXT GENERATION COOLING

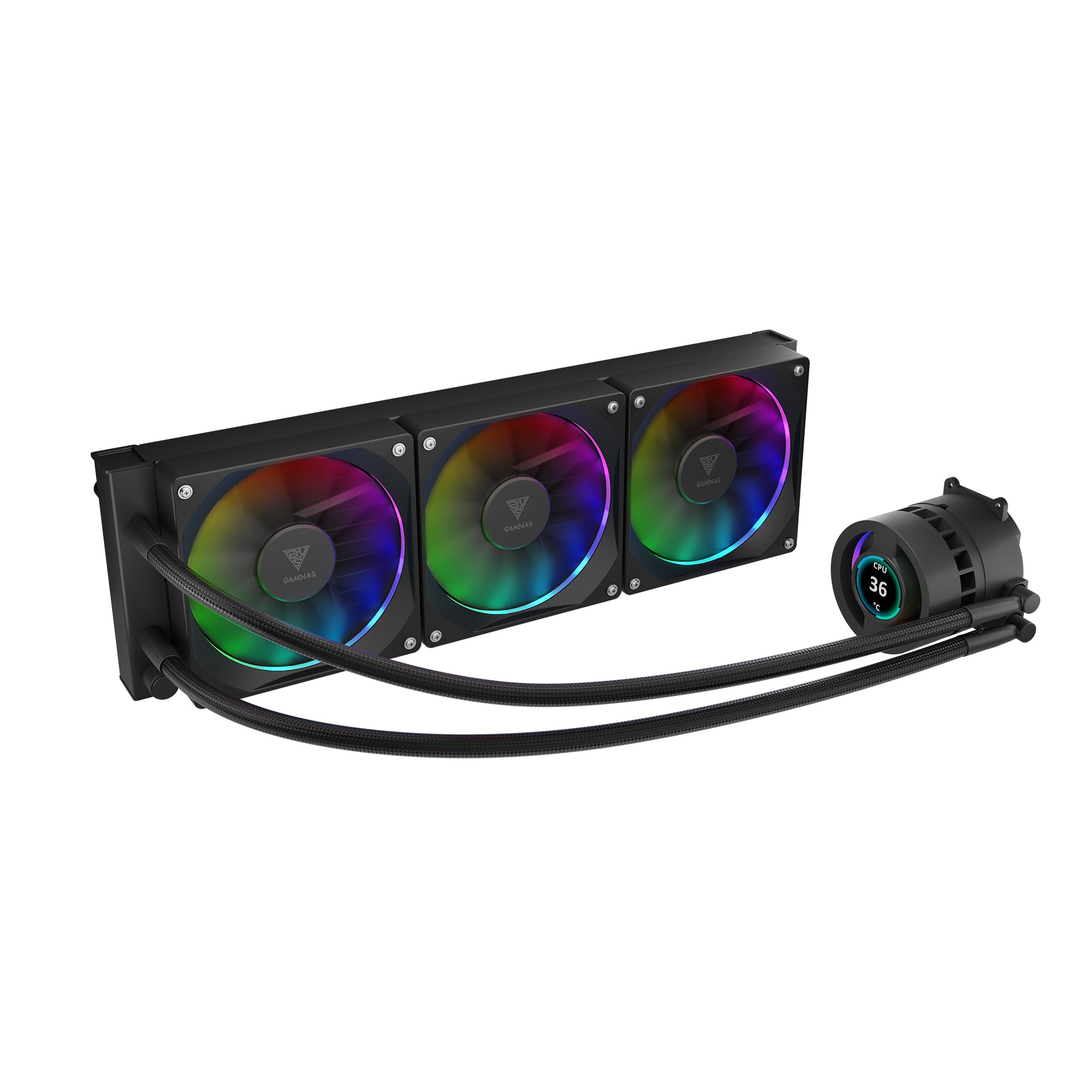

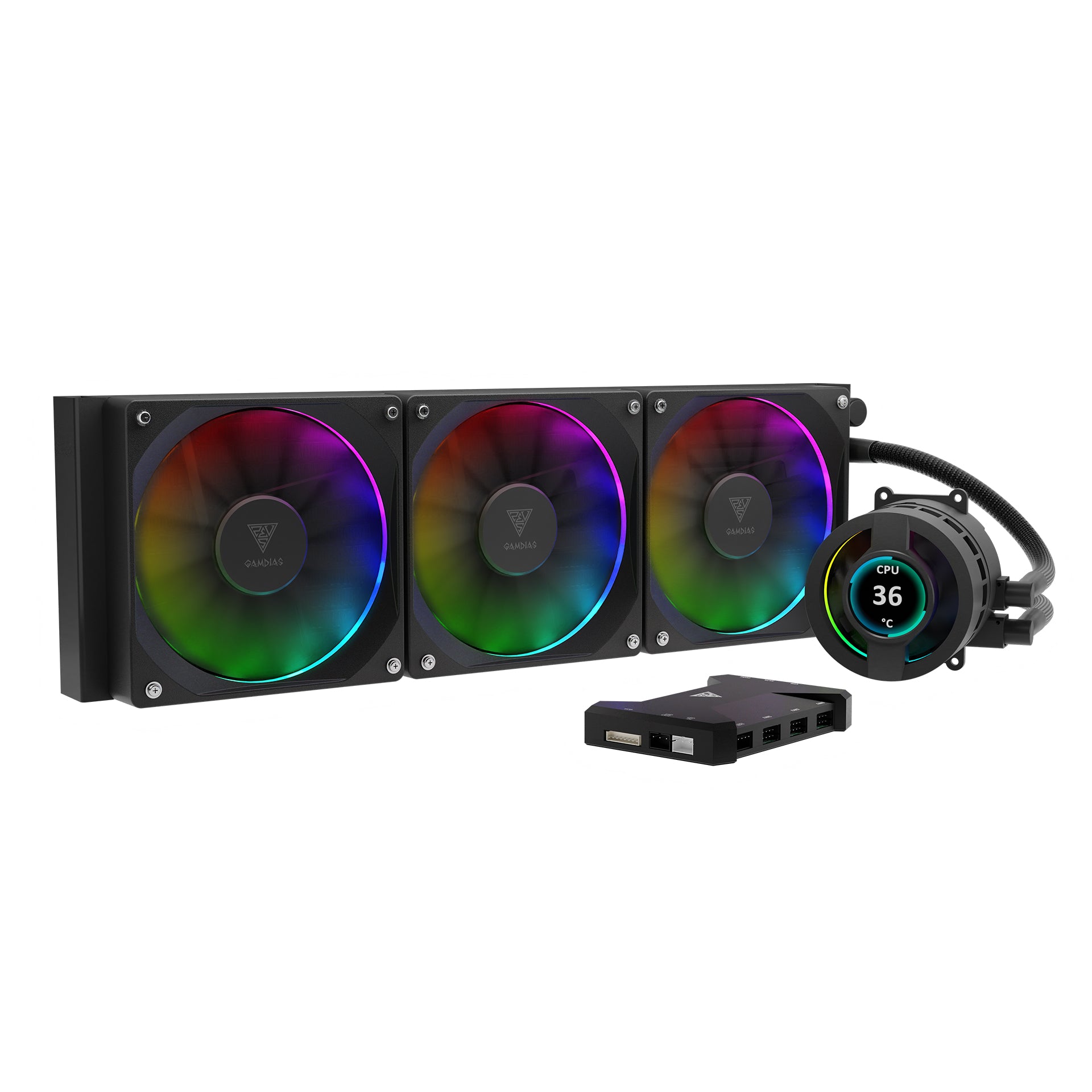

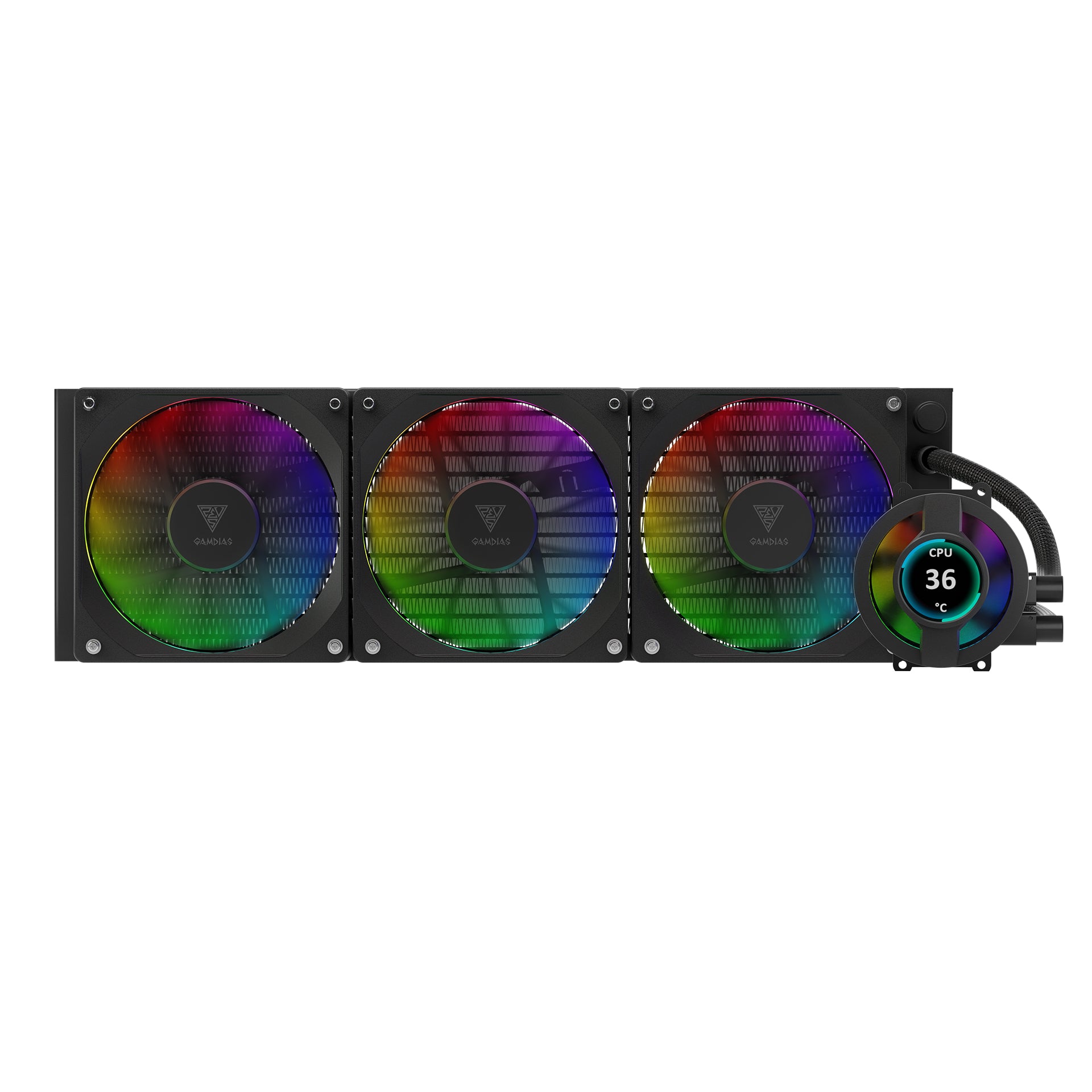

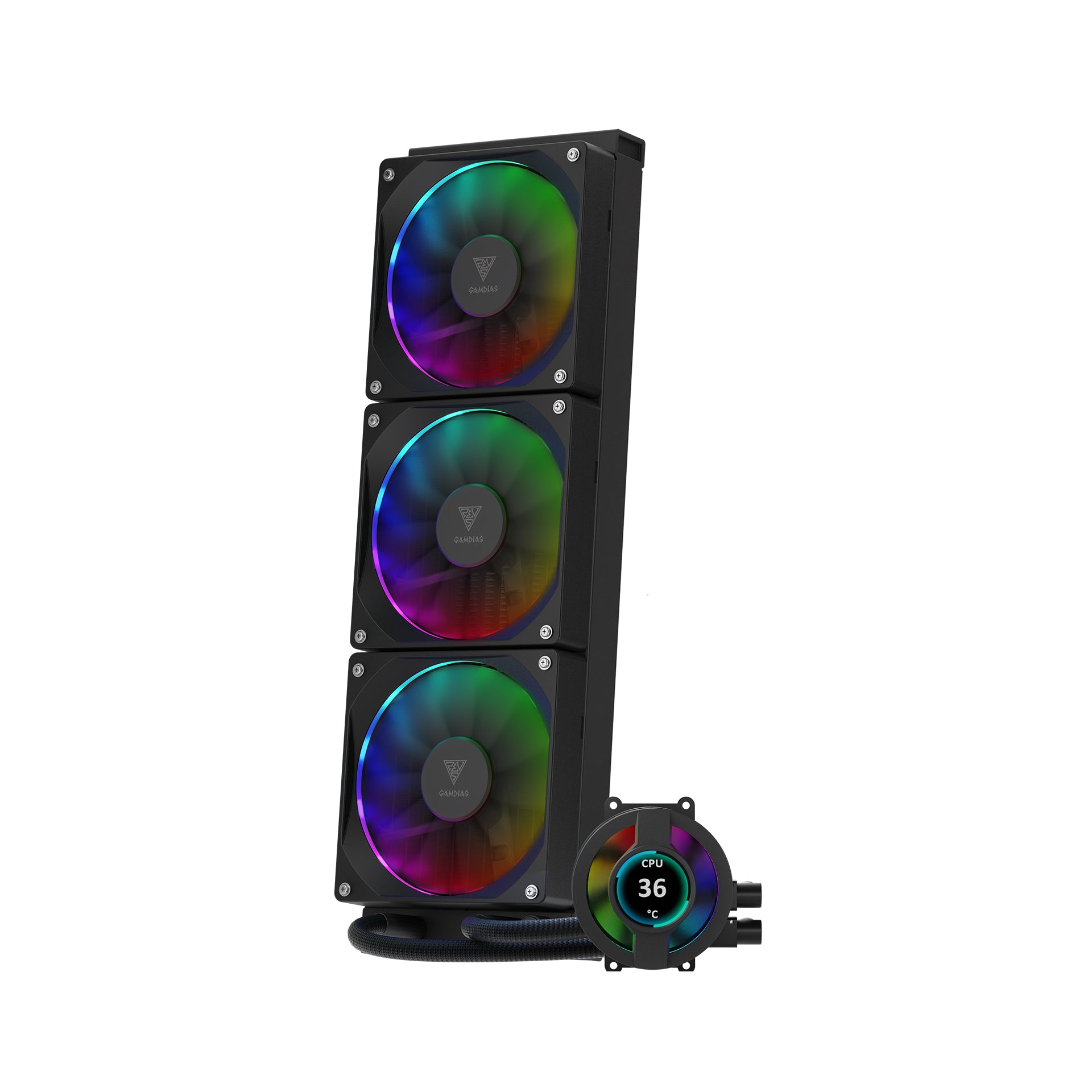

The CHIONE P3 high-performance liquid cooler is a 360mm radiator AIO fine-tuned for next-generation cooling and equipped with a personalized LCD display. The AIO features a highly customizable IPS LCD display, a motor pump with a high-performance three-phase drive, an optimized cold-plate design, a micro-embedded fan within the pump head, and three fine-tuned AEOLUS M3 PWM fans to offer top-notch cooling power on any setup.

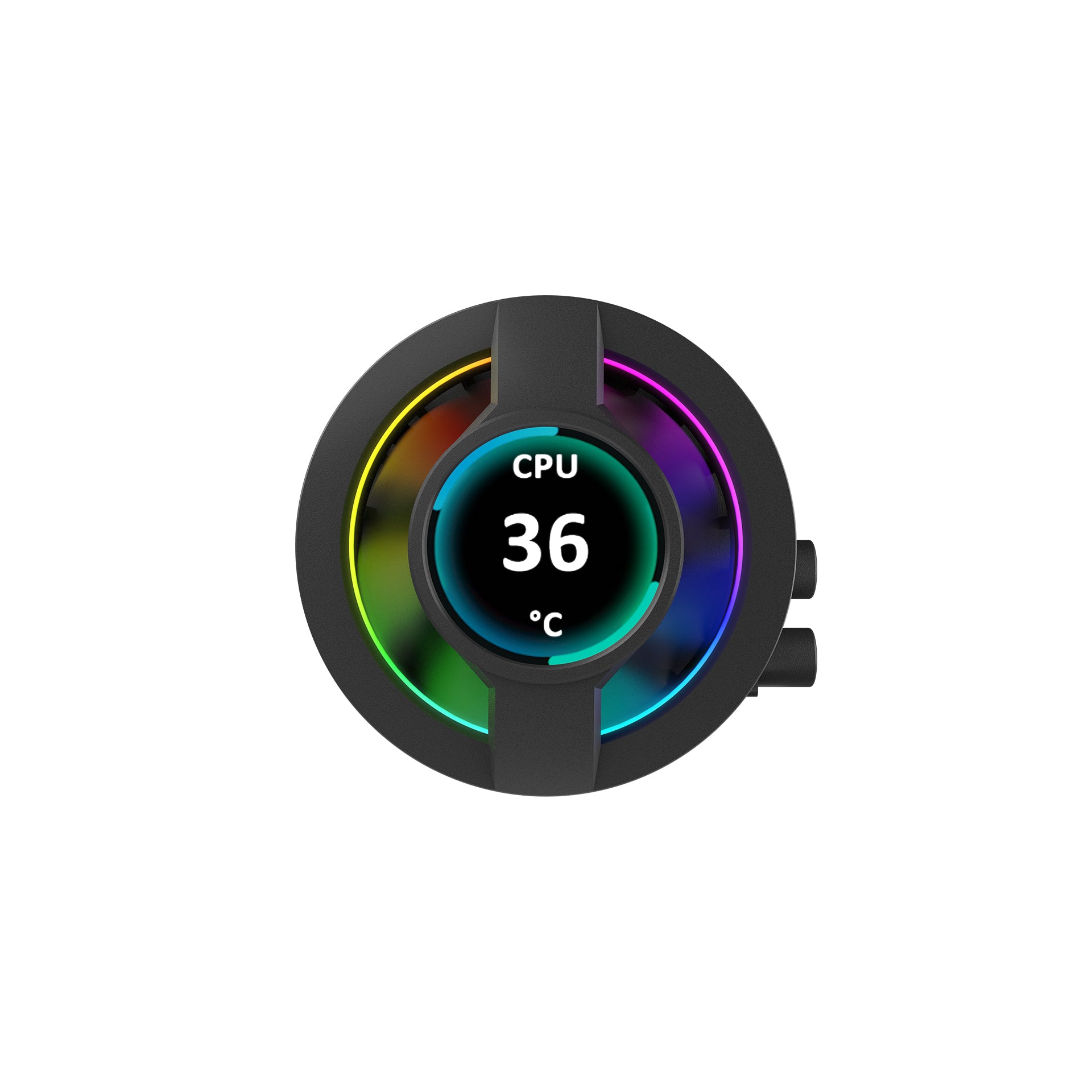

PERSONALIZED LCD DISPLAY

The CHIONE P3 Series comes with a brilliant IPS LCD display, allowing you to monitor your system performance statistics in real-time, while also personalizing the screen with any images or animated GIFs as background for system statistics. The pump head is equipped with a stunning ARGB lighting ring with pre-installed lighting modes for a dazzling display of lighting effects.

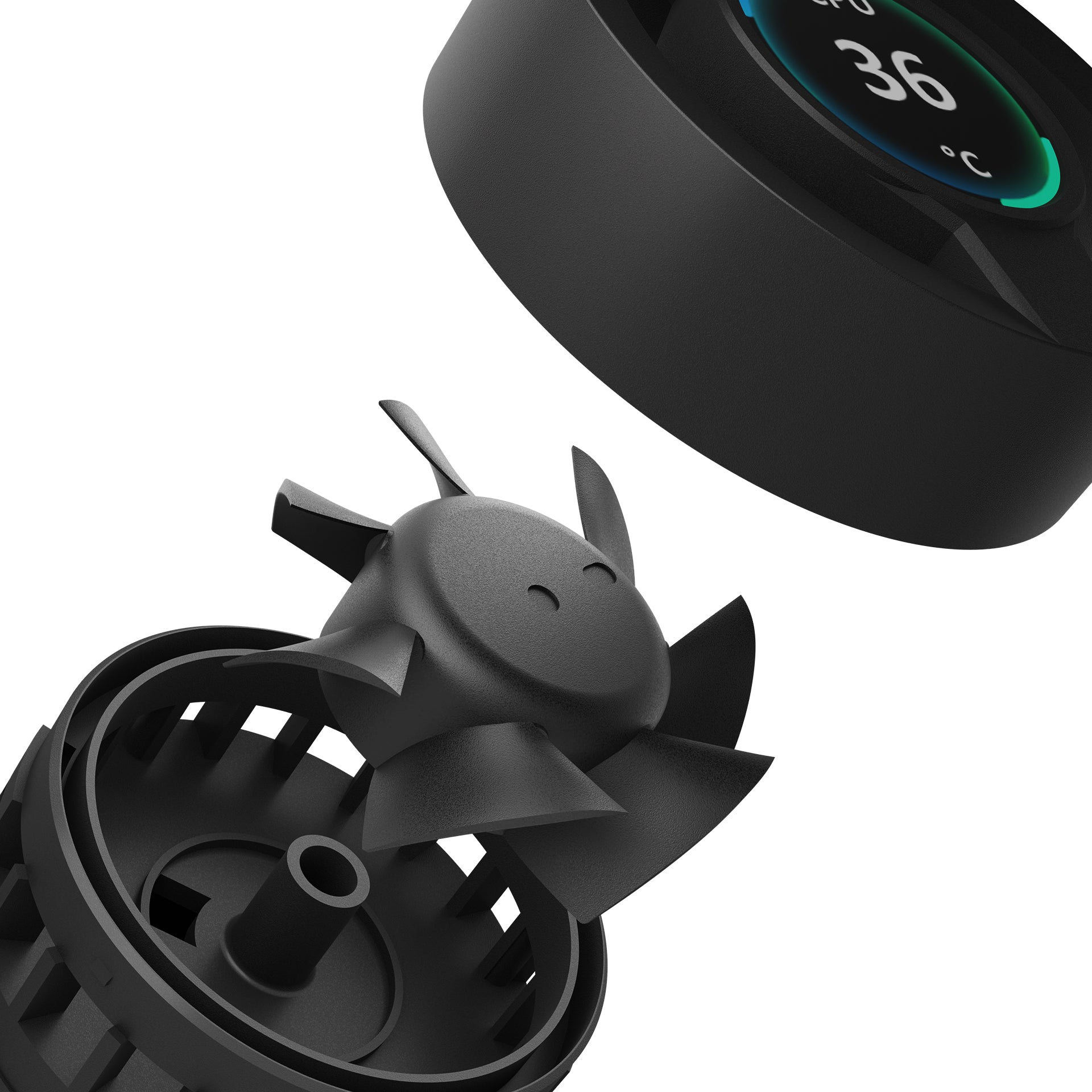

S-TIER COOLING PUMP

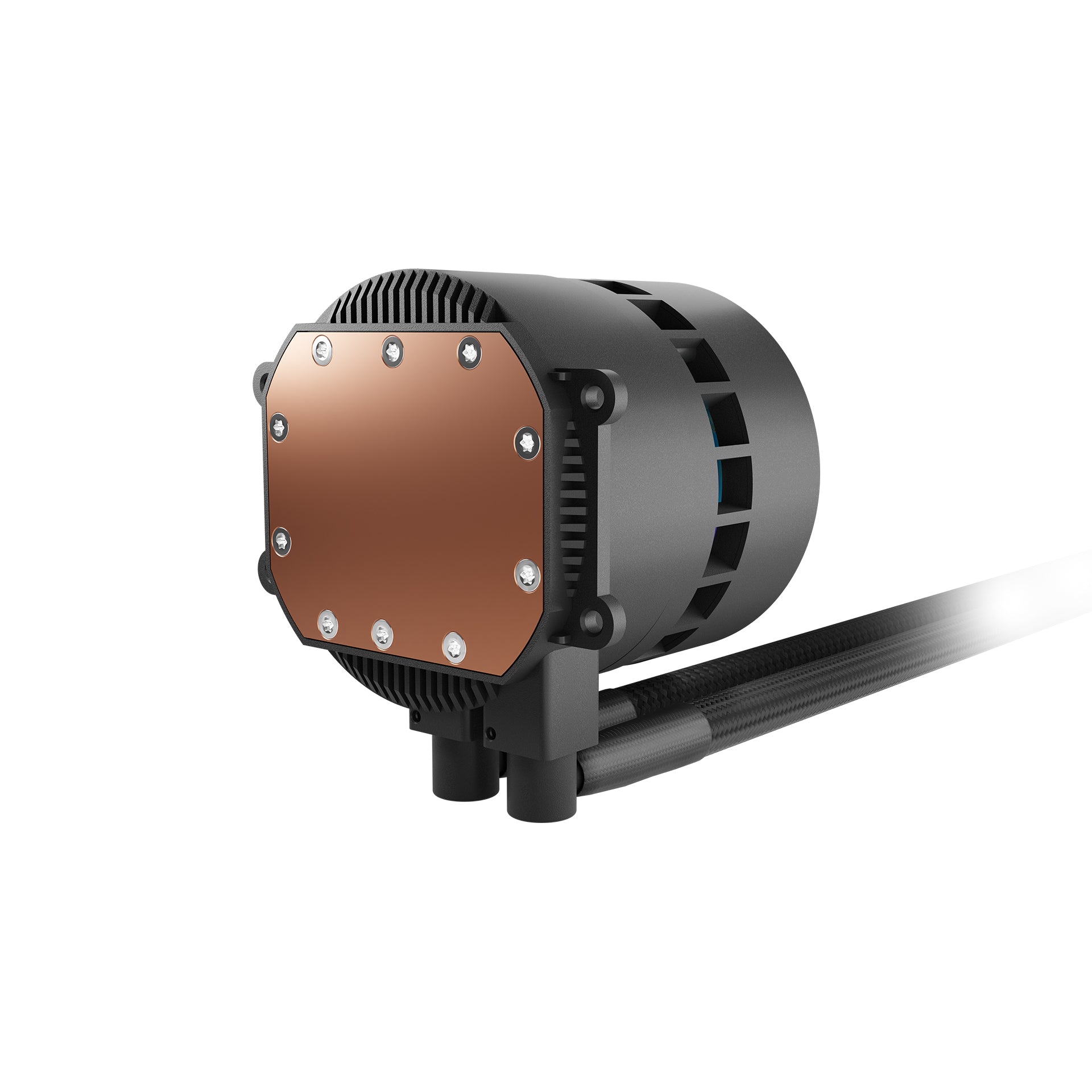

The AIO pump is enhanced by a high-performance three-phase drive motor water pump up to 2800RPM, a micro-embedded fan for enhanced heat dissipation around CPU VRMs and surrounding components, and a high-density copper base cold plate optimized for seamless CPU fittings to provide maximized cooling performance.

CHIONE_P3-240U_IMG_KeyFeature2.png__PID:2890666b-4c6e-4ba3-a484-80b01e490674

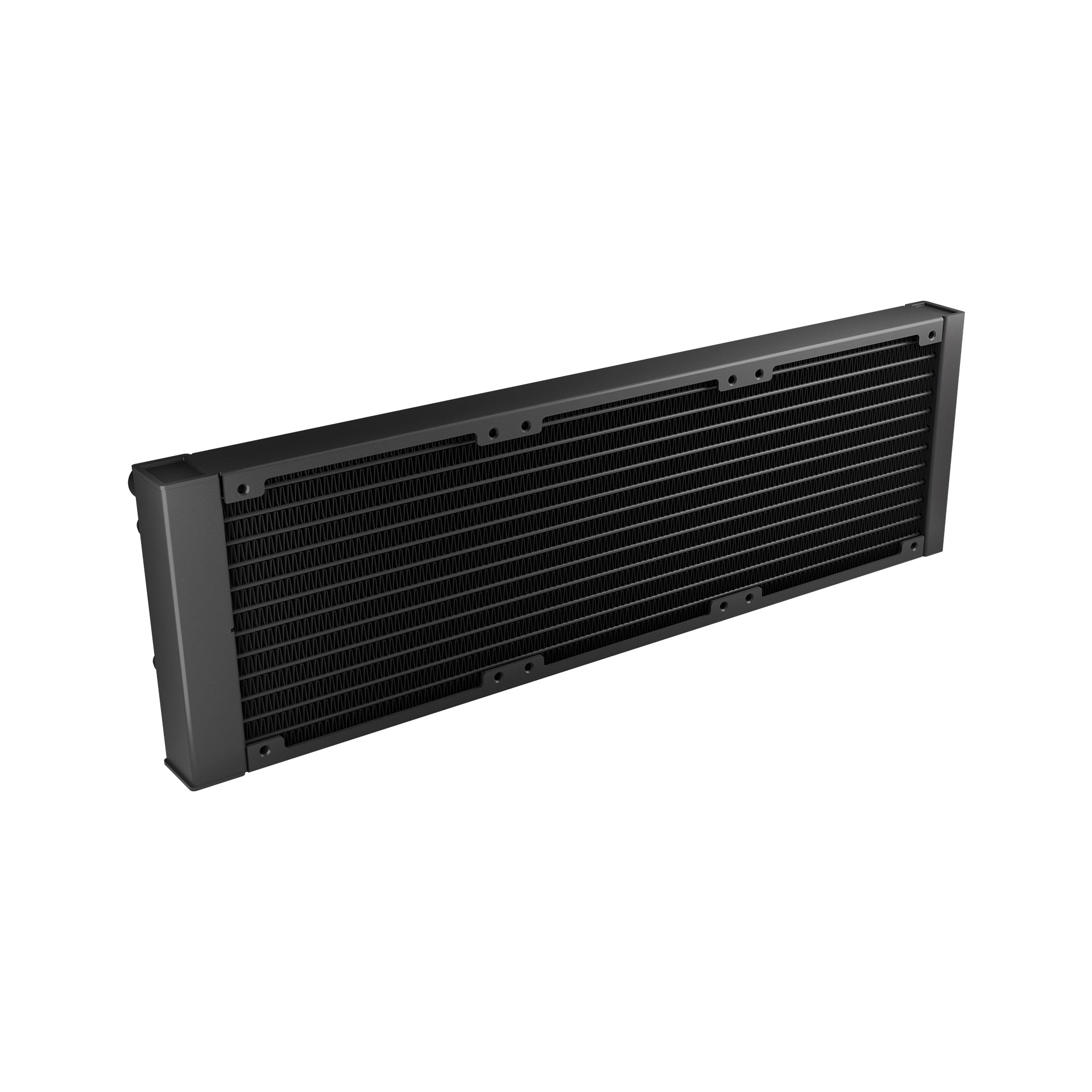

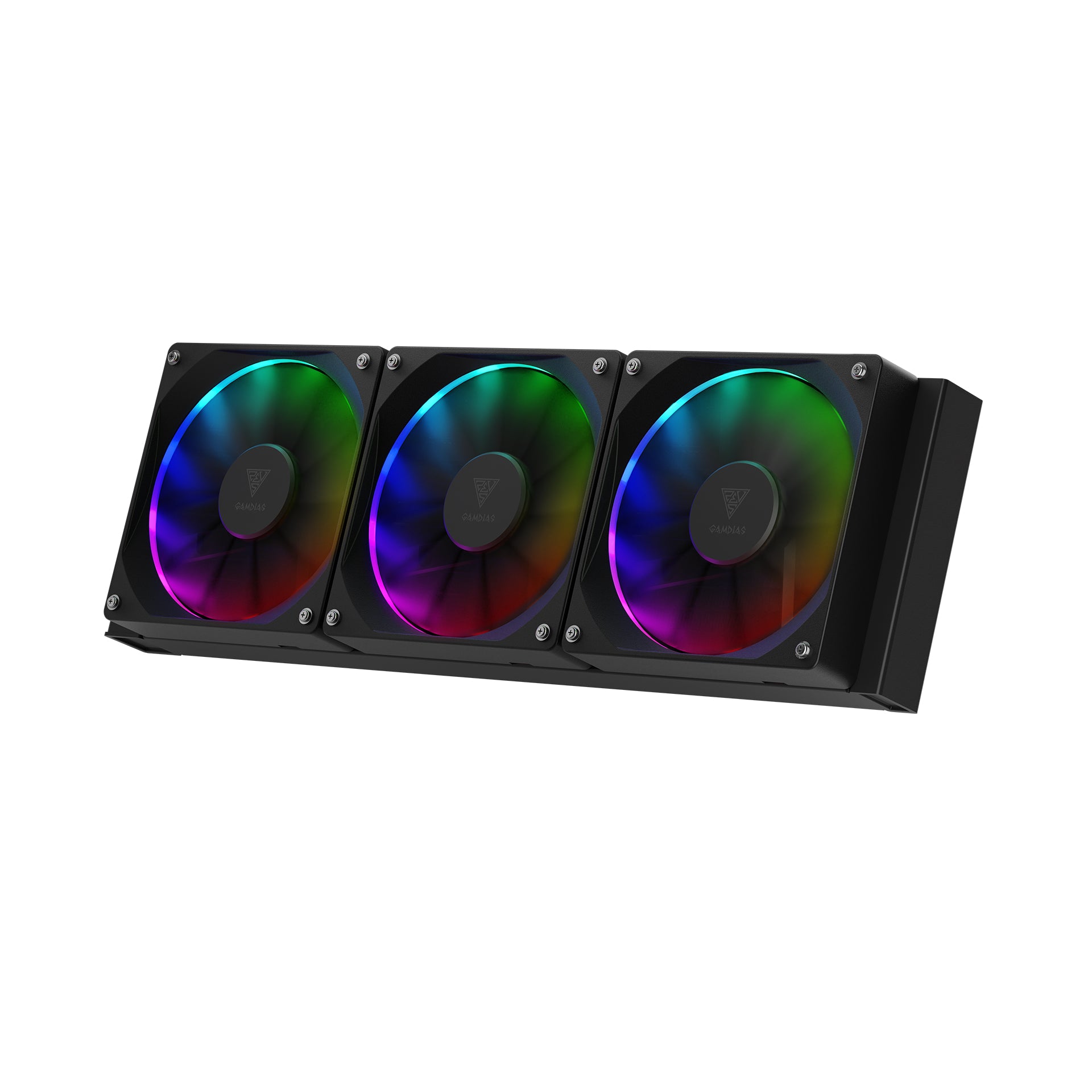

SUPERIOR RADIATOR

CHIONE P3 series is equipped with a premium-class radiator sporting a 25% increase in radiator thickness and high-density fins for a more reliable cooling ability.

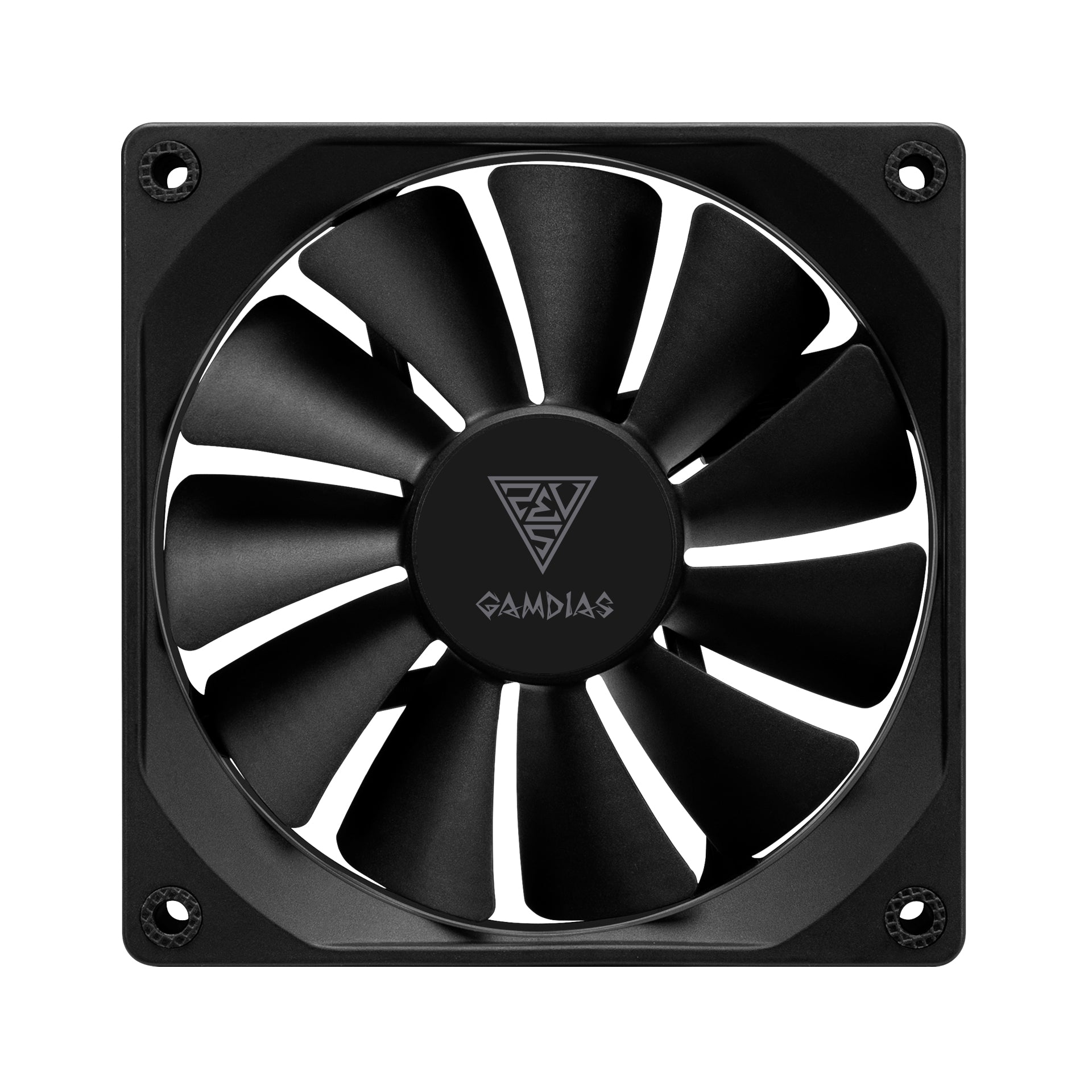

PERFORM IN STYLE

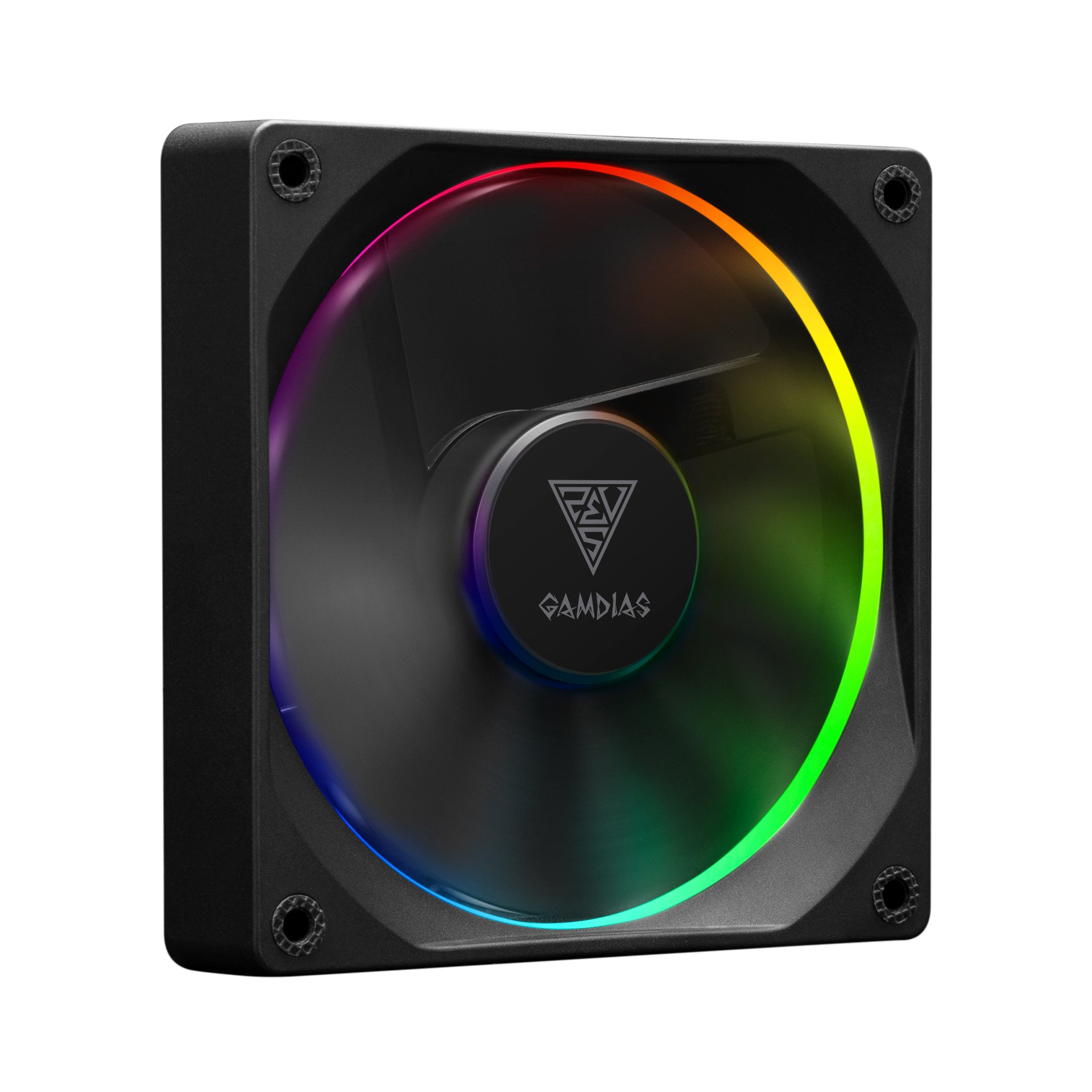

Built with an emphasis on superior airflow performance, the radiator AEOLUS M3 PWM fans provide high static pressure of up to 69.01 CFM for optimized airflow guidance. The fans feature fully addressable low-profile ARGB lighting providing a subtle and modish look.

CHIONE_P3-360U_IMG_KeyFeature4.png__PID:107138ef-bf65-4830-bffd-2ec899aa2551

PREMIUM HYDRAULIC BEARING

With near-zero friction between moving parts, the AEOLUS M3 fans make minimal noise while generating maximum airflow while having a long lifespan.

CHIONE_P3-240U_IMG_KeyFeature5.png__PID:b1769fa0-d255-48f3-9c0c-123f50865a6a

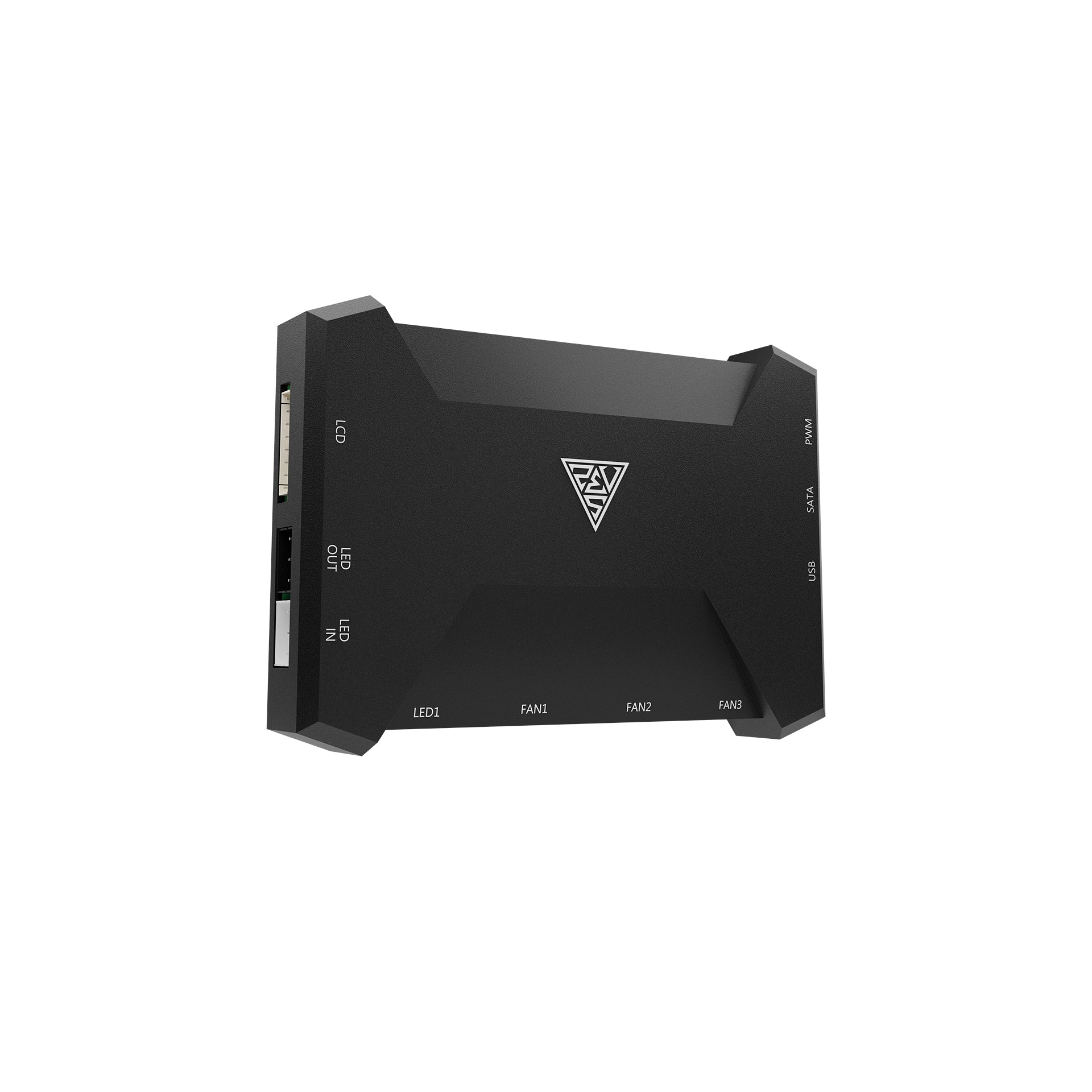

INTEGRATED CONTROL BOX

The standalone USB AEOLUS Box for the CHIONE P3 cooler can control three fans and one LED strip. While connected to the GAMDIAS AEOLUS BOX, daisy chain up to 8 additional fans and 2 LED strips to sync up your build.

CHIONE_P3-240U_IMG_KeyFeature6.png__PID:e2e21347-0e72-4342-bd2e-613ae4cef377
CHIONE_P3-240U_IMG_KeyFeature7.png__PID:f658be5b-041c-4322-9c7d-3dd8fcc502e1

REAL-TIME SYSTEM MONITORING

The CHIONE CAST software provides real-time support in monitoring essential system information on your PC once connected to the USB AEOLUS Box and the CHIONE P3 AIO header to the motherboard.

FULLY CUSTOMIZABLE SOFTWARE

Upload images or animations (PNG/JPG/GIF), display system information while showing your own custom image or animation, and freely adjust screen orientation and brightness via the CHIONE CAST software.

FULLY ADDRESSABLE RGB LIGHTING

Enjoy immersive software-controlled ARGB lighting effects or choose from a variety of built-in lighting effects. Customize lighting brightness, speed, and direction, or simply sync directly with the motherboard all through the CHIONE CAST Software.

CHIONE_P3-240U_IMG_KeyFeature9.png__PID:610cc8c3-9fde-4c56-bc31-69c44eaffd95
CHIONE_P3-240U_IMG_KeyFeature10.png__PID:98ead242-72ec-413f-bab1-ee67e0441632

UNIVERSAL COMPATIBILITY

The CHIONE P3 AIO cooler comes with an upgraded mounting kit for easy installation on both AMD and Intel platforms. (LGA 1700/AM5/TR4 Ready)

SPECIFICATIONS
ModelCHIONE P3-360U
Package ContentsCooler
Fan
USB AEOLUS Box
Thermal Grease
Mounting Kit
1
3
1
1
Yes
LIQUID COOLER - FAN
Dimensions120 x 120 x 25 mm
Speed800 - 2000 RPM±10%
Noise Level10 - 31 dBA
Air Flow 69.01 CFM
Air Pressure 2.37 mmH2O
Bearing Hydraulic
Rated Voltage12 V (Fan) / 5V(LED)
Connector8 pin
Support PWM Control Yes
LIQUID COOLER
Radiator Dimensions394 x 119 x 27 mm
Tube MaterialTeflon
Base Plate MaterialCopper
Radiator Material Aluminum
Sleeved Tube Yes
Pump Rated Voltage 12 V (Pump) / 5V(LED)
Pump Connector3 Pin
CompatibilityLGA2066 / 2011-v3 / 2011 / 1700 / 1200 / 1151 / 1150 / 1155 / 1156 / 1366 / AM5 / AM4 / AM3+ / AM3 / AM2+ / AM2 / FM2+ / FM2 / FM1 / TR4
TDP 290W ±10%
Support Motherboard RGB Sync Connectors 5V 3-pin addressable (digital) RGB header Only
Copy of LIQUID COOLER - CONTROL BOX
ModelUSB AEOLUS Box
Dimensions83 x 59 x 14 mm
Power ConnectorSATA
Support LED type 5V 3-pin Addressable (Digital) LED
Support Daisy Chain Yes
Built-In Magnet Yes
