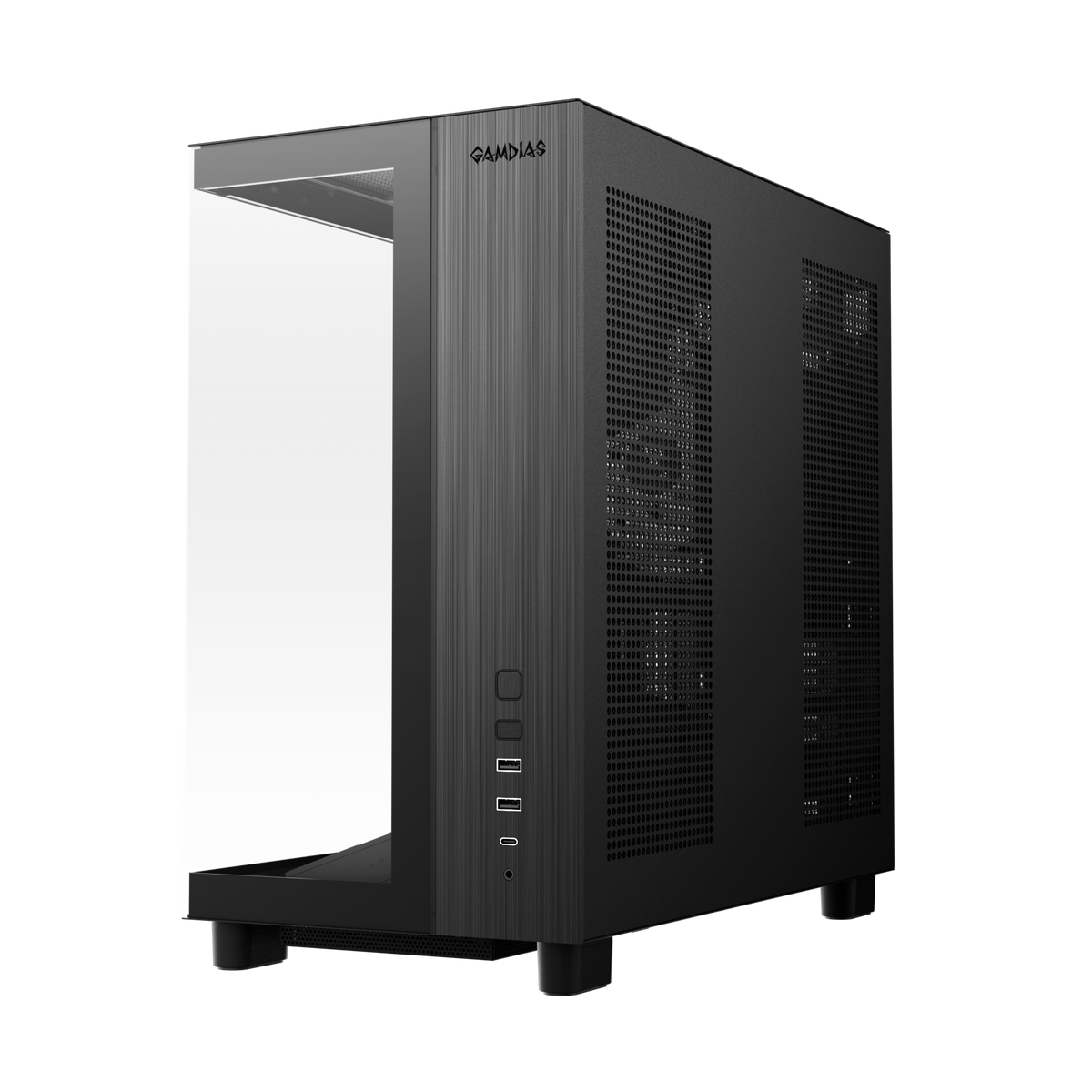

GAMDIAS ATLAS M4 ATX Mid-Tower PC CASE with 4 ARGB Fans
IMMERSIVE VISUALS, DYNAMIC AIRFLOW
- Seamless Tempered Glass Display

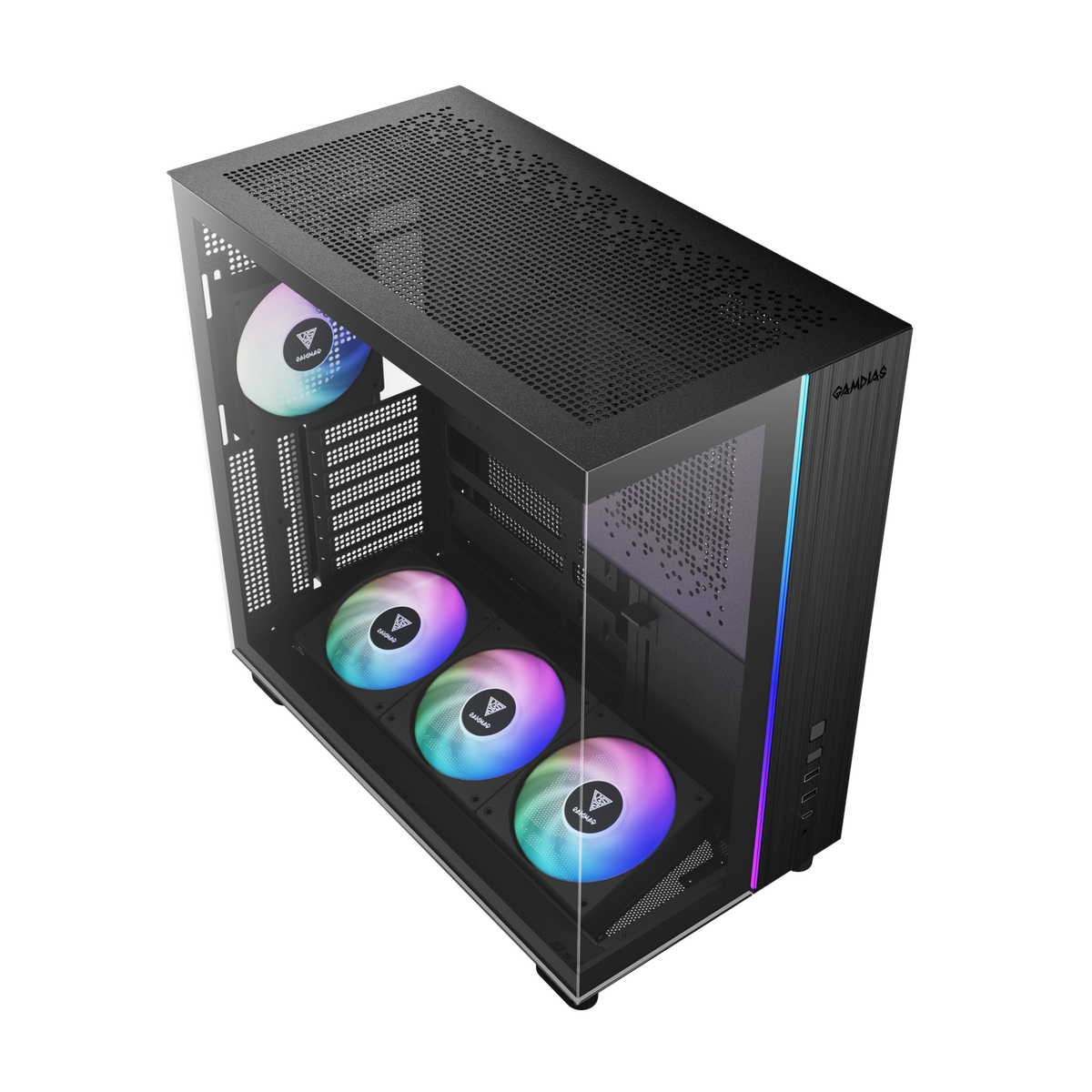

- 4 Built-in 120mm NOTUS M1 ARGB Fans
- Natural Chimney-Style Ventilation
- Front-Mounted PSU Design

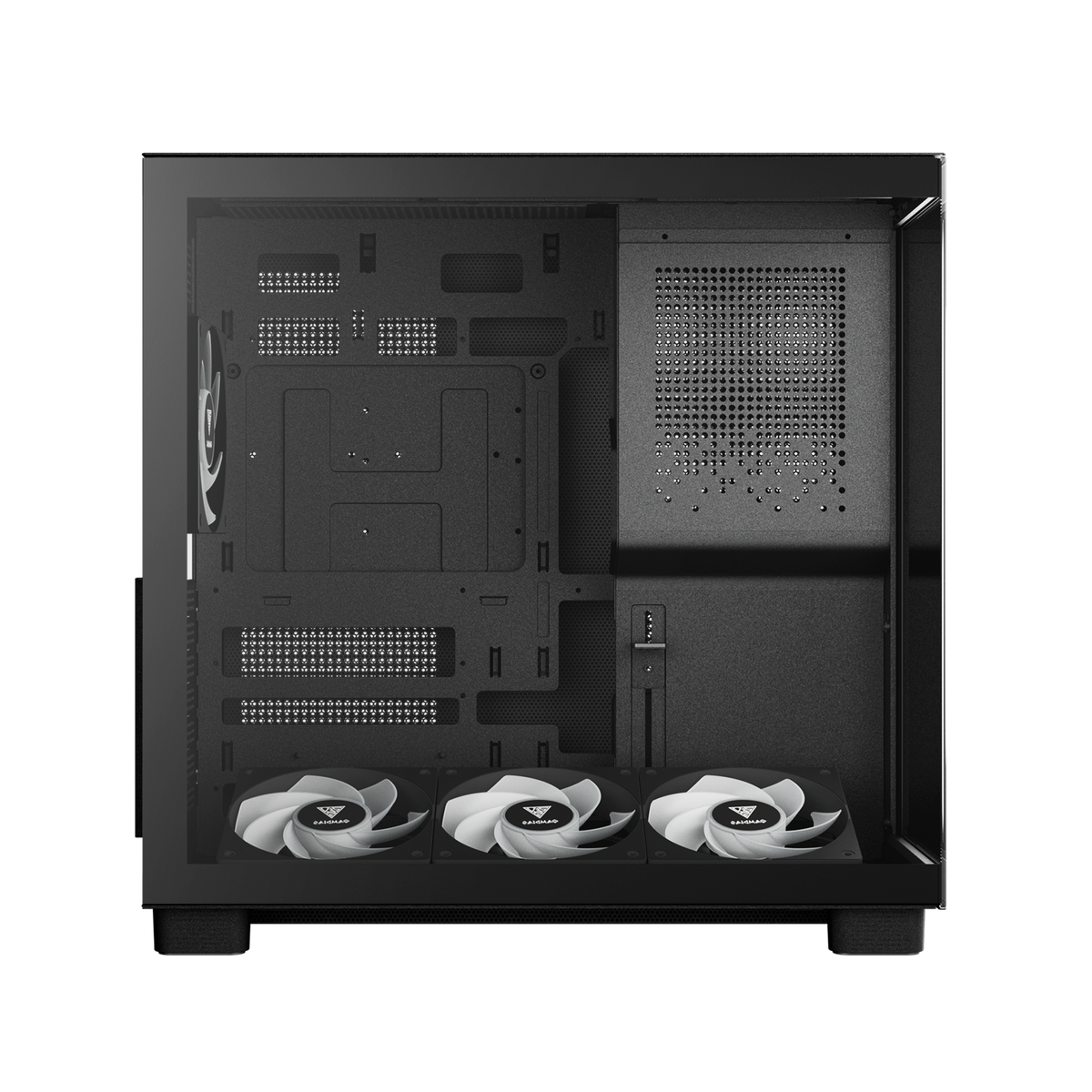

- Adjustable Bottom Cooling System

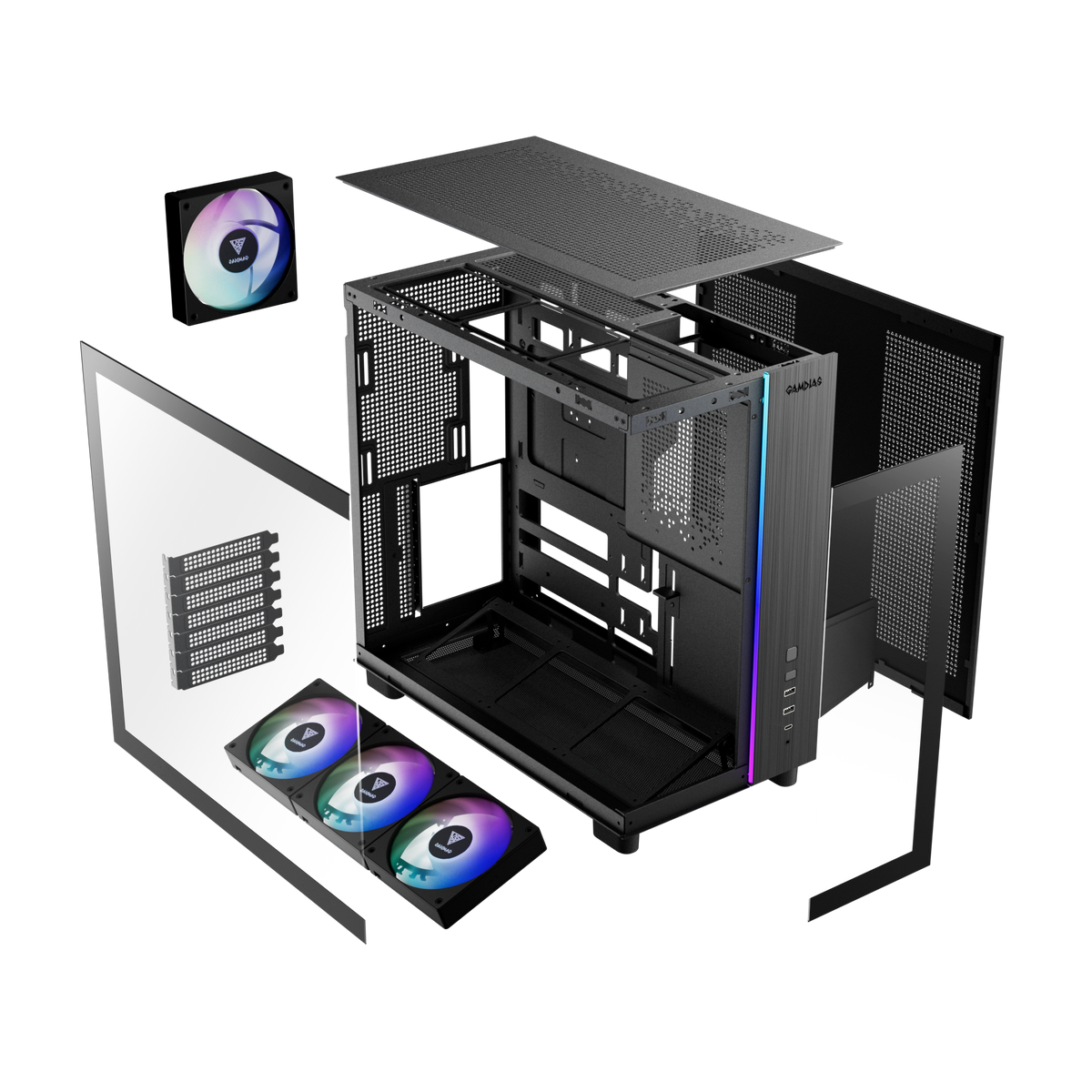

- Modular Tool-free Installation
- Supports Connector-hidden Motherboards
- Fits Mini-ITX, Micro-ATX, and ATX motherboards
- Pre-Installed Anti-sag Bracket for GPU up to 425mm
- Gen 2 Type-C Port Ready
- Magnetic Dust Filter
Pickup available at Mastex Corporation
Usually ready in 24 hours
GAMDIAS ATLAS M4 ATX Mid-Tower PC CASE with 4 ARGB Fans
Mastex Corporation
Pickup available, Usually ready in 24 hours
Unit 12, 163-179 Forster Road
Mount Waverley VIC 3149
Australia
Choose options
GAMDIAS ATLAS M4 ATX Mid-Tower PC CASE with 4 ARGB Fans
Sale price$129.00
IMMERSIVE VISUALS, DYNAMIC AIRFLOW

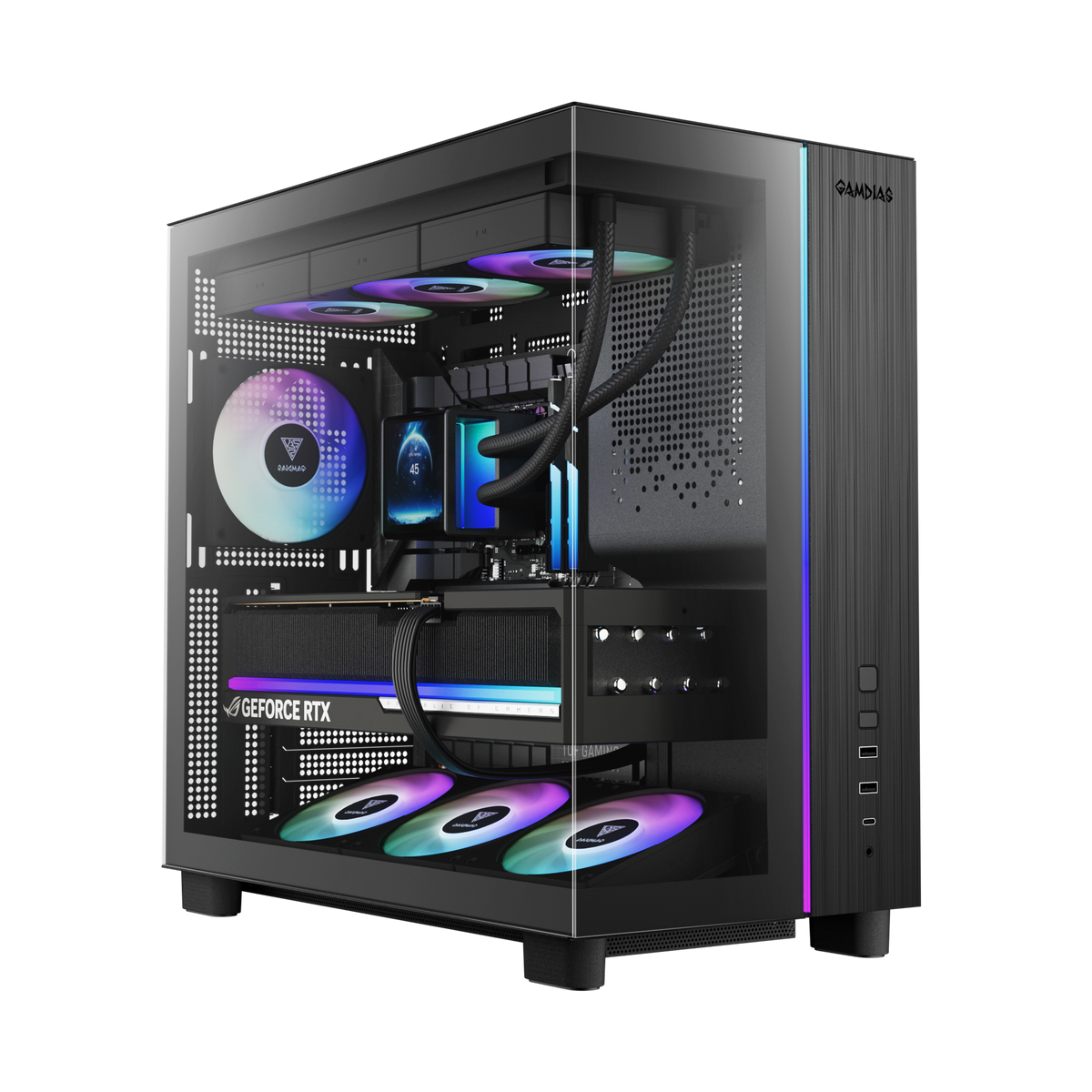

The ATLAS M4 delivers a fully immersive showcase with seamless tempered glass panels from bottom to top. Its front-mounted PSU design not only opens a complete panoramic view of your build but also enables chimney-style ventilation for optimal thermal performance. With four built-in NOTUS M1 ARGB fans and an adjustable bottom cooling system, the ATLAS M4 combines striking visuals with powerful cooling efficiency.
SPECIFICATIONS
| Model | ATLAS M4 |
|---|---|
| Case Type | Mid Tower |
| Motherboard Support | ATX / Micro-ATX / Mini-ITX |
| Motherboard Synchronisation | 5V 3-Pin Addressable Header |
| Case Colour | Black |
| Expansion Slots | 7 |
| Material | SPCC, ABS, Tempered Glass |

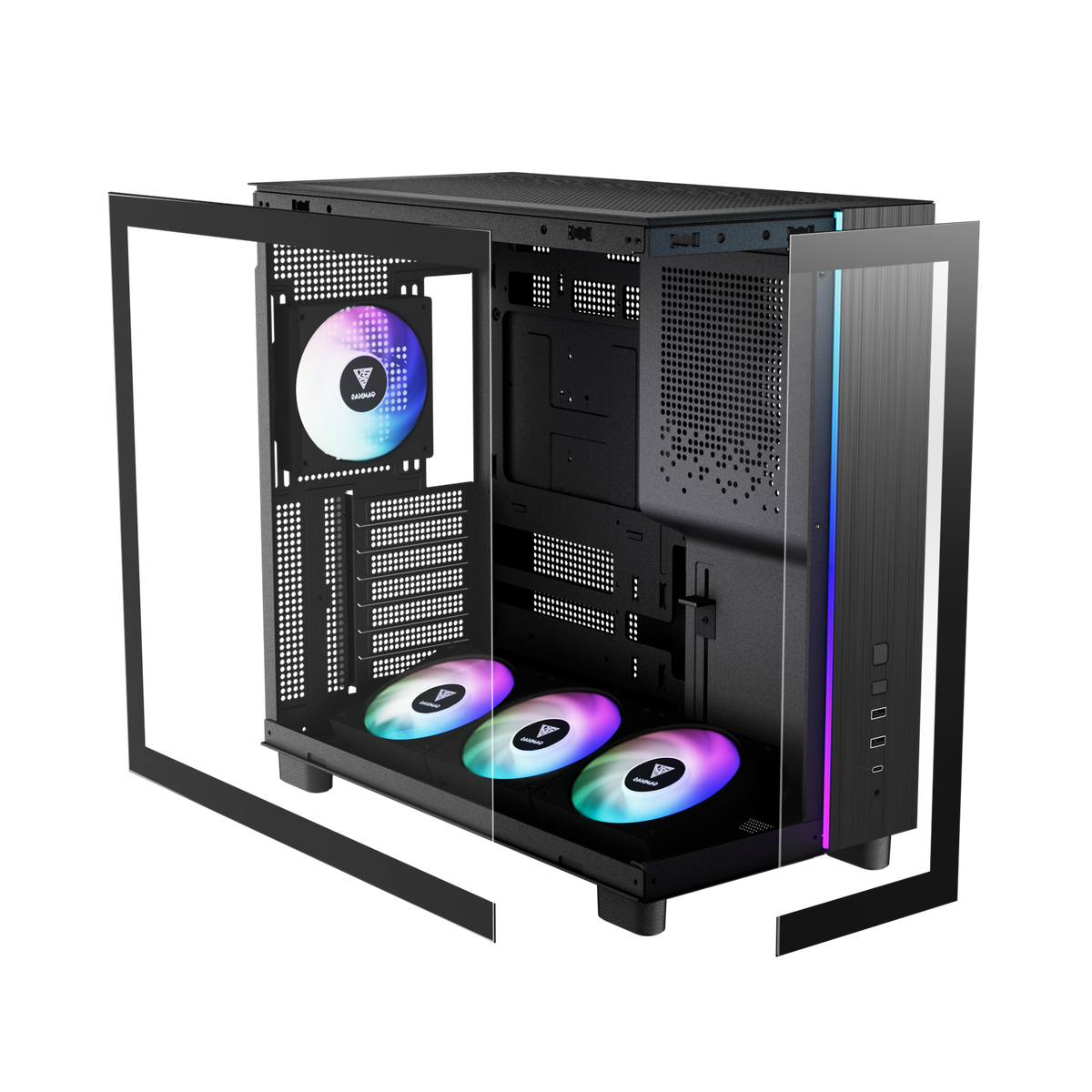

| Tempered Glass Panels | Front and Left Side |
| Radiator Support | Top: 360mm Rear: 120mm |
| Fan Support | Top: 3 × 120mm Rear: 1 × 120mm / 1 × 140mm Bottom: 3 × 120mm |
| Pre-installed Fans | Rear: 1 × 120mm PWM ARGB Fan Bottom: 3 × 120mm PWM ARGB Fans |
| Fan & ARGB Hub | 8-Port PWM ARGB Fan Hub (4 Ports Used) |
| Drive Bays | 1 × 3.5" + 1 × 2.5" or 2 × 2.5" |
| I/O Ports | 1 × USB 3.2 Gen 2 Type-C 2 × USB 3.0 1 × HD Audio 1 × LED Control |
| CPU Cooler Clearance | 175mm (Max.) |
| GPU Clearance | 425mm (Max.) |
| PSU Clearance | 160mm (Max.) |
| Dimensions (L × W × H) | 430 × 235 × 434mm |
FREQUENTLY ASKED QUESTIONS
1. What motherboard sizes are compatible with the ATLAS M4?
The GAMDIAS ATLAS M4 supports ATX, Micro-ATX, and Mini-ITX motherboards. It also supports compatible connector-hidden motherboard designs for cleaner cable management.
2. How many fans are included with the ATLAS M4?
The ATLAS M4 comes with four pre-installed 120mm NOTUS M1 PWM ARGB fans: three at the bottom and one at the rear. An 8-port PWM ARGB fan hub is also included.
3. Does the ATLAS M4 support liquid cooling?
Yes. The ATLAS M4 supports up to a 360mm radiator at the top and a 120mm radiator at the rear, providing flexible liquid cooling options.
4. What is the maximum graphics card length supported?
The ATLAS M4 supports graphics cards up to 425mm in length. It also includes a pre-installed anti-sag GPU bracket for additional support.
5. Does the ATLAS M4 include a USB Type-C port and ARGB lighting control?
Yes. The case features a USB 3.2 Gen 2 Type-C port with speeds up to 10Gbps, two USB 3.0 ports, an HD audio connection, and an LED control button. The included ARGB fan hub supports compatible motherboard lighting synchronisation.
