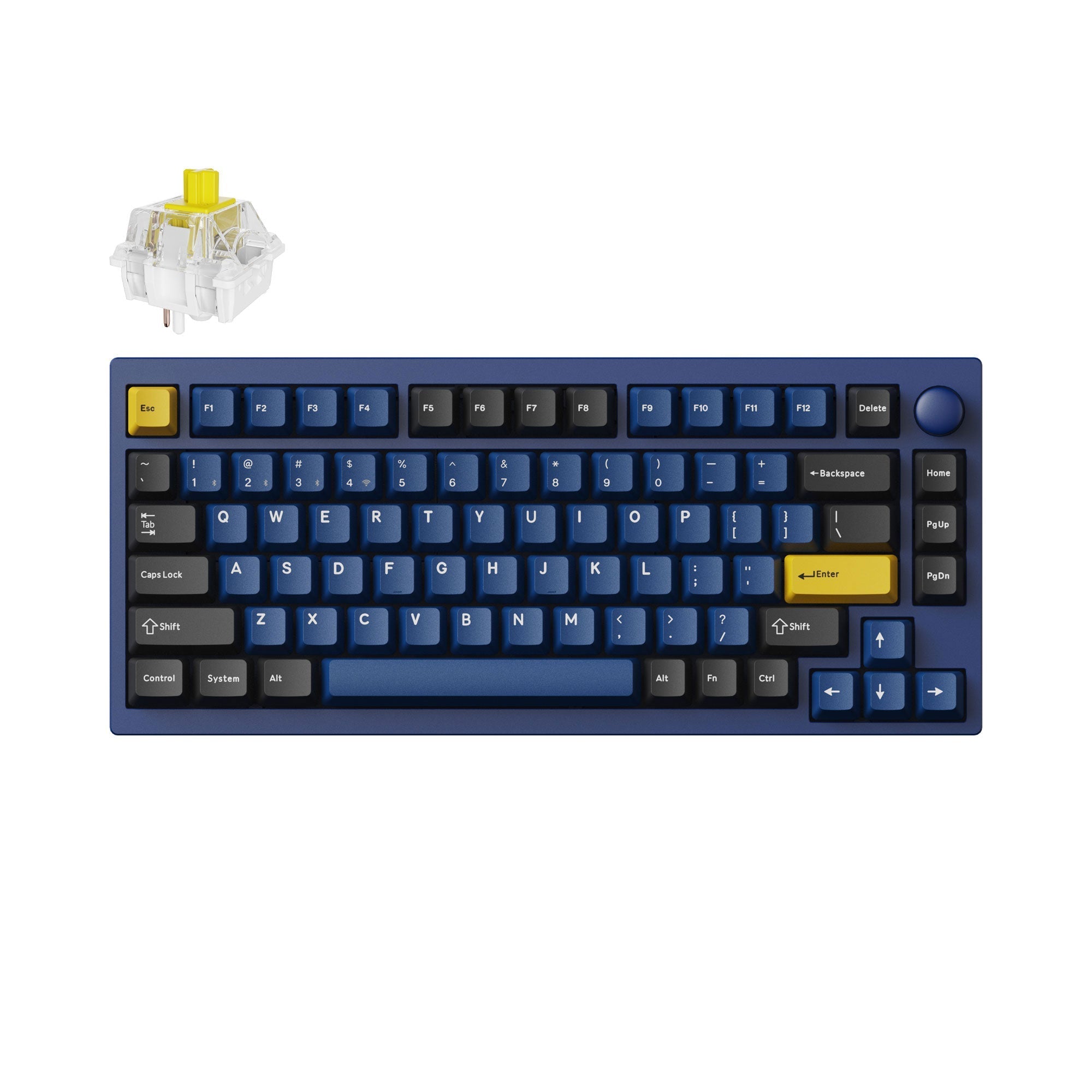

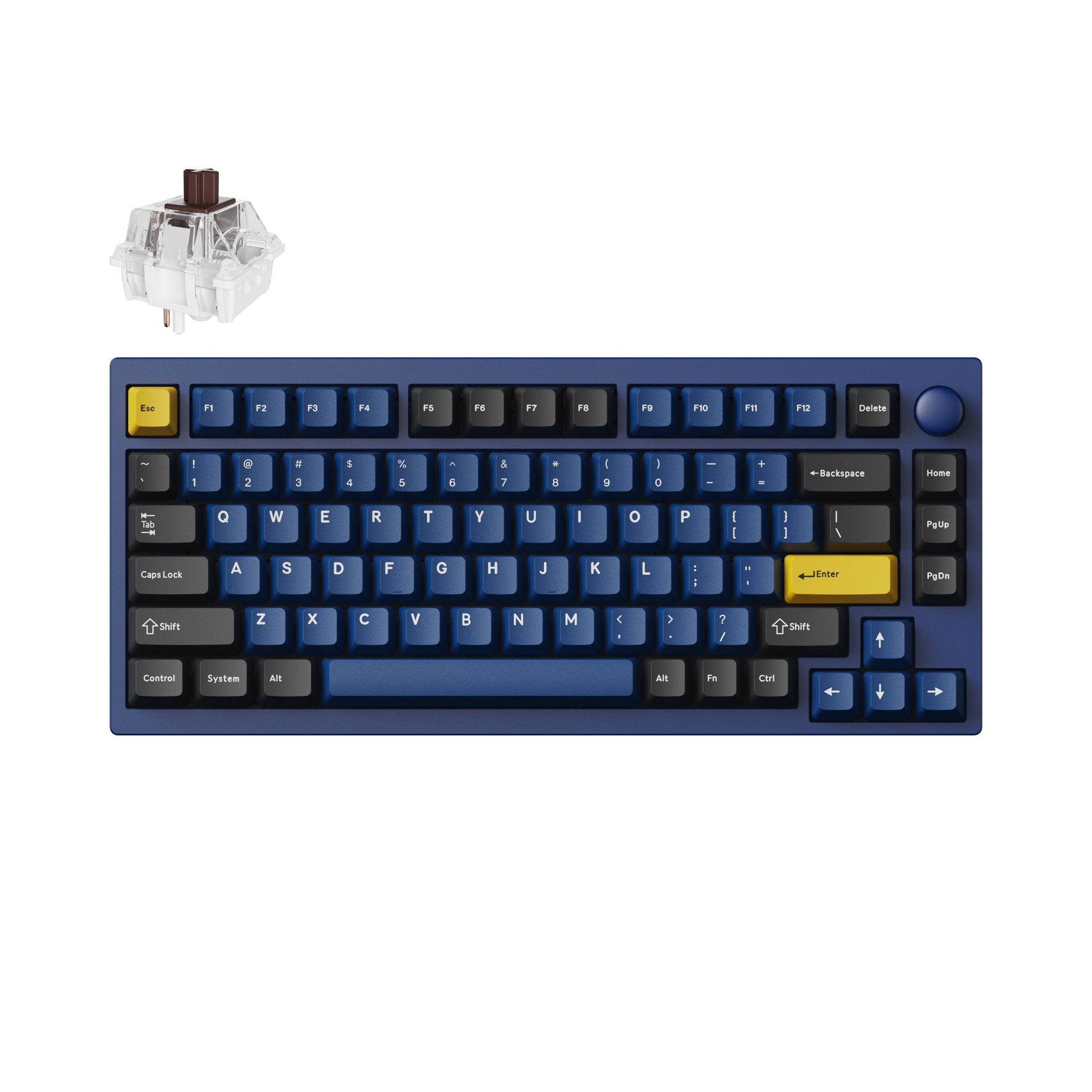

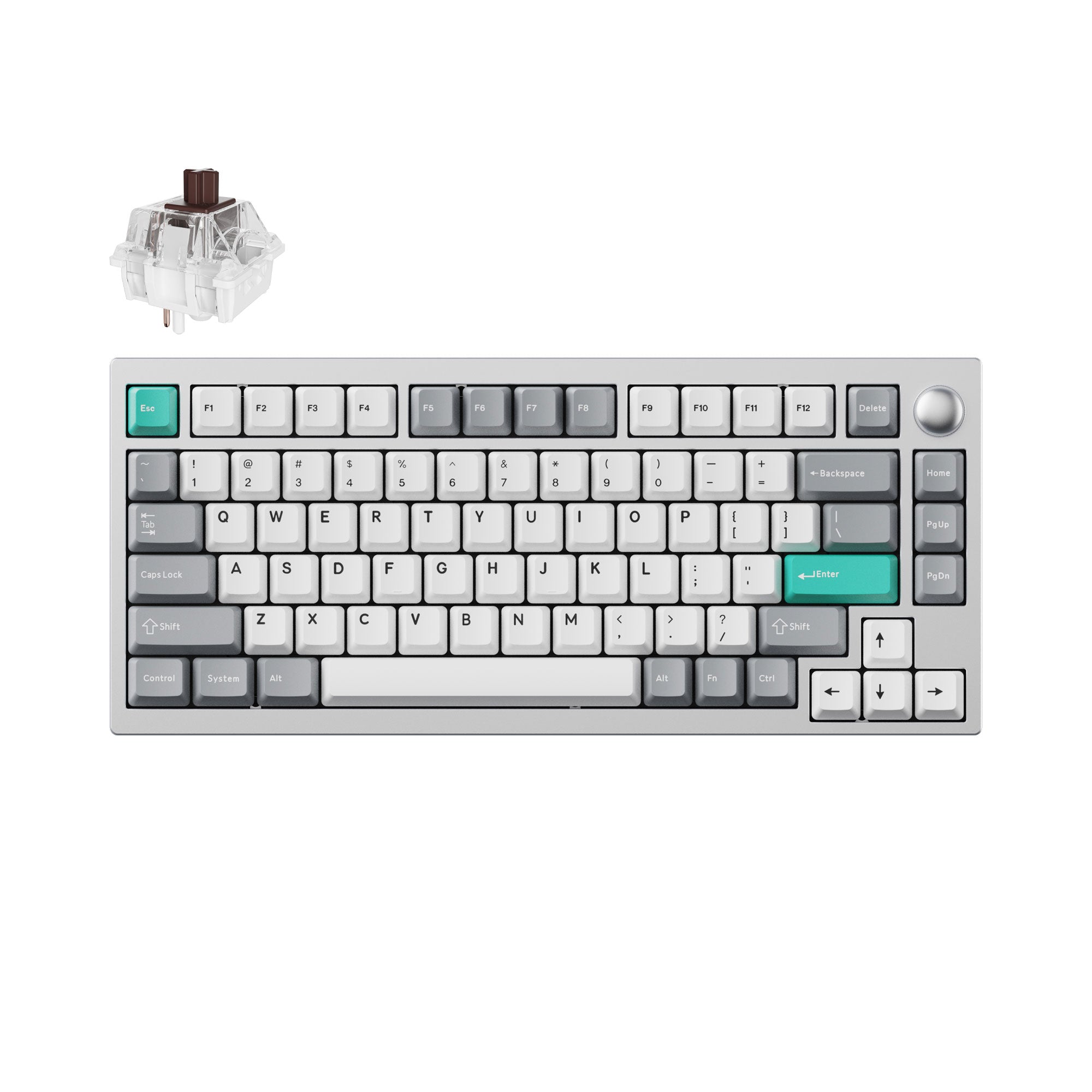

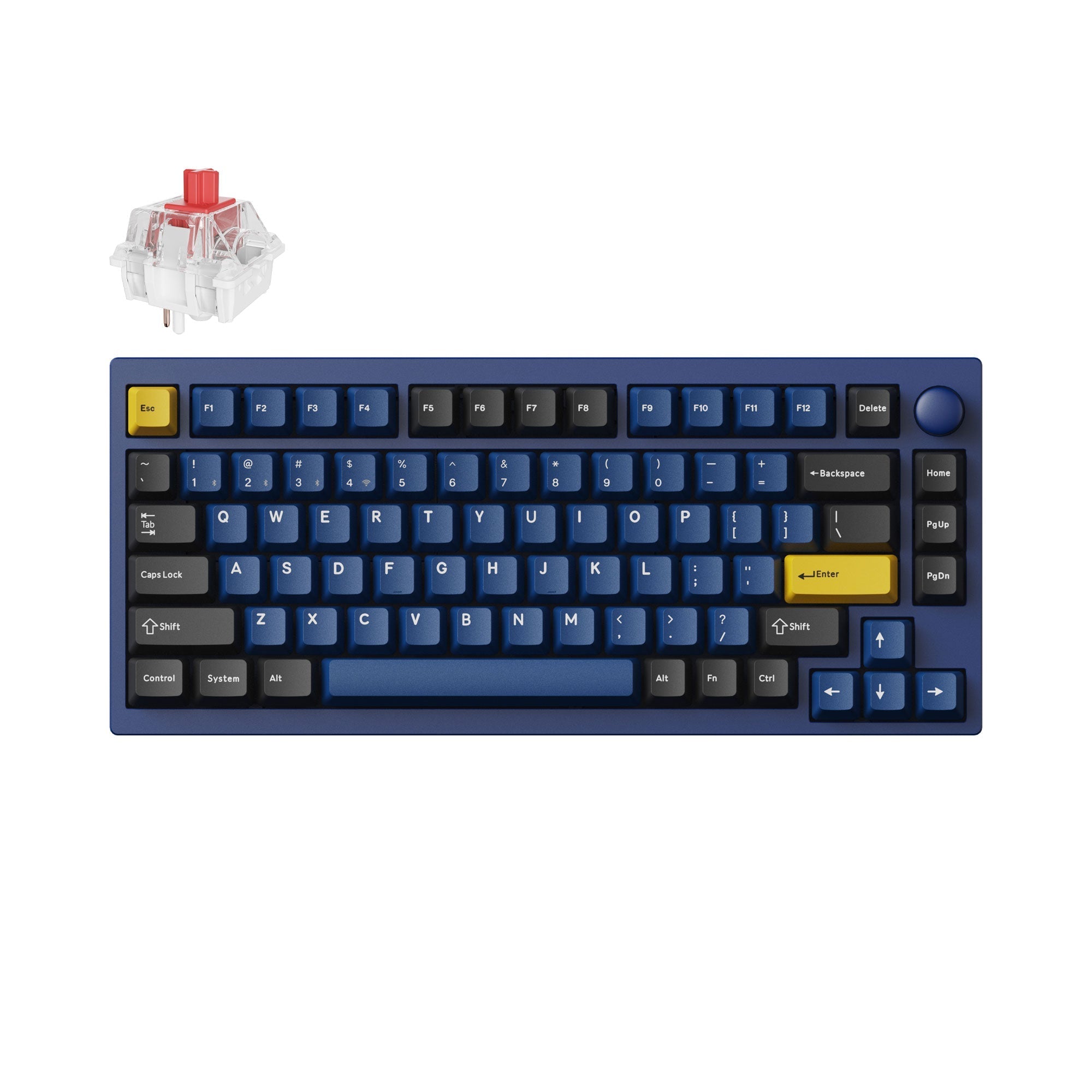

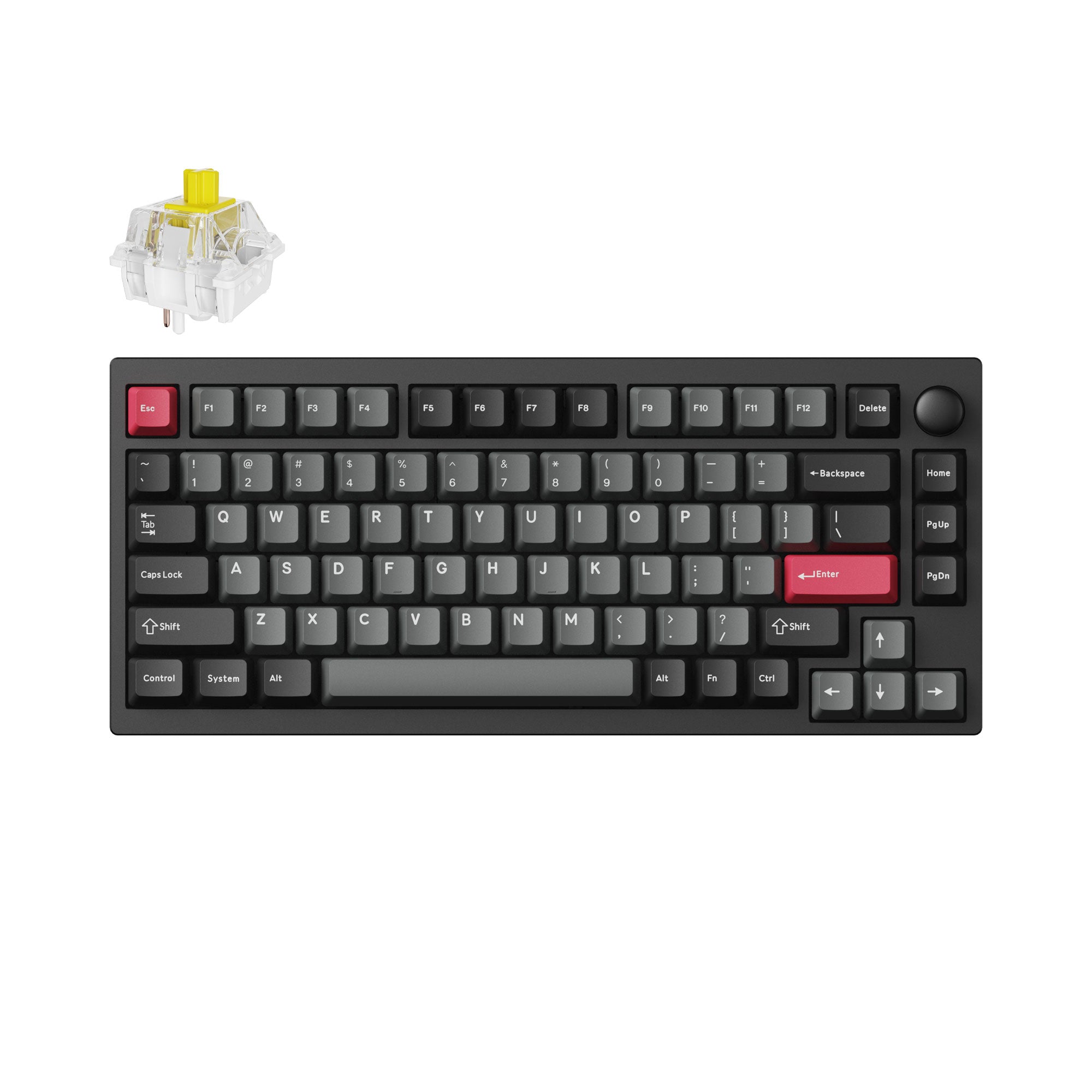

Lemokey P1 QMK/VIA Custom Gaming Mechanical Keyboard

(0.0)
Sale price$199.00

Type:
Color:Navy Blue
Switches:



The Fully Assembled version includes:
  • The keyboard PCB, the case, and the PC plate.
  • Keycaps (included Mac & Windows keycaps).
  • Switches.

P1 Pro: Wireless Version (2.4 GHz, Bluetooth, and Wired)
P1: Wired Version (Type-C Cable)

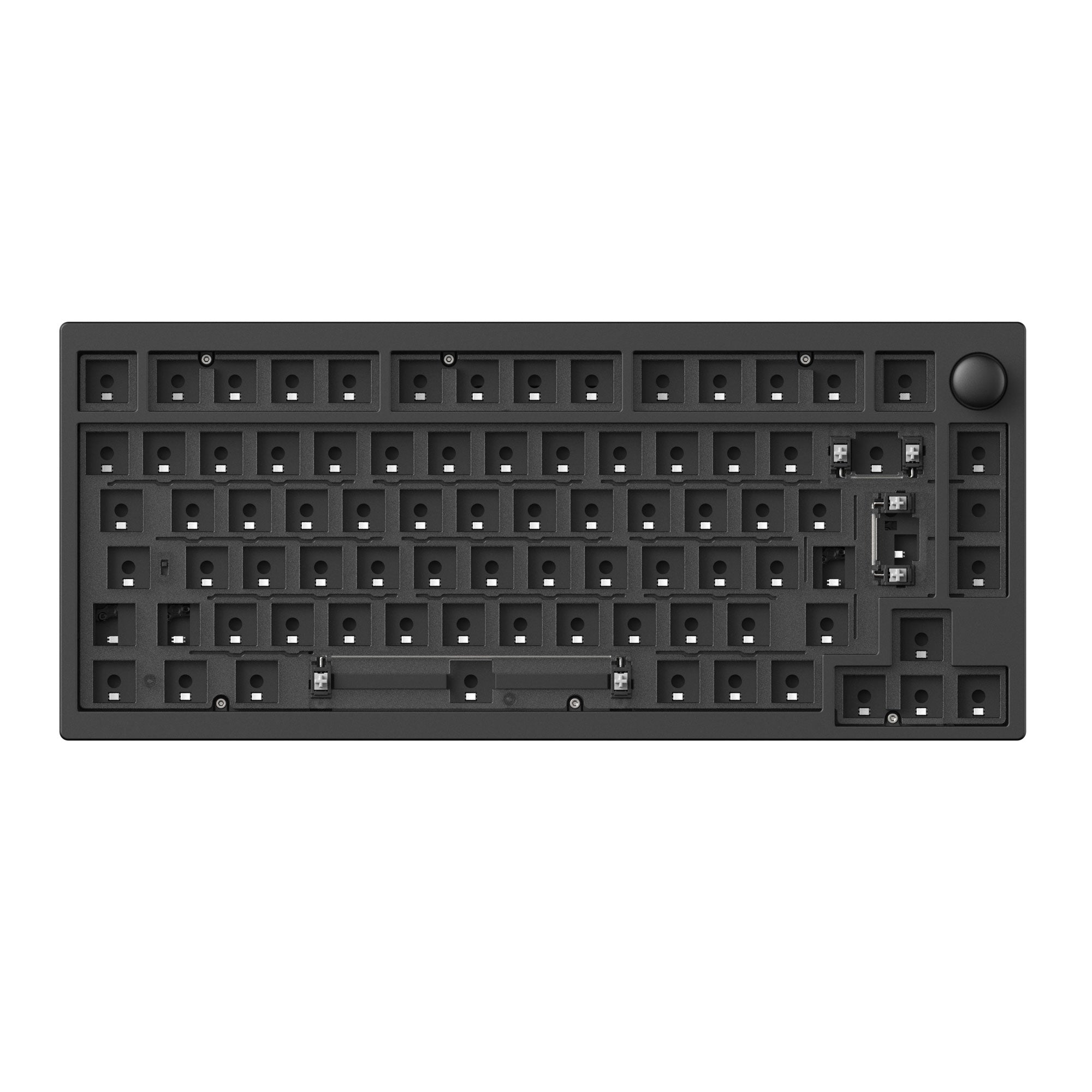

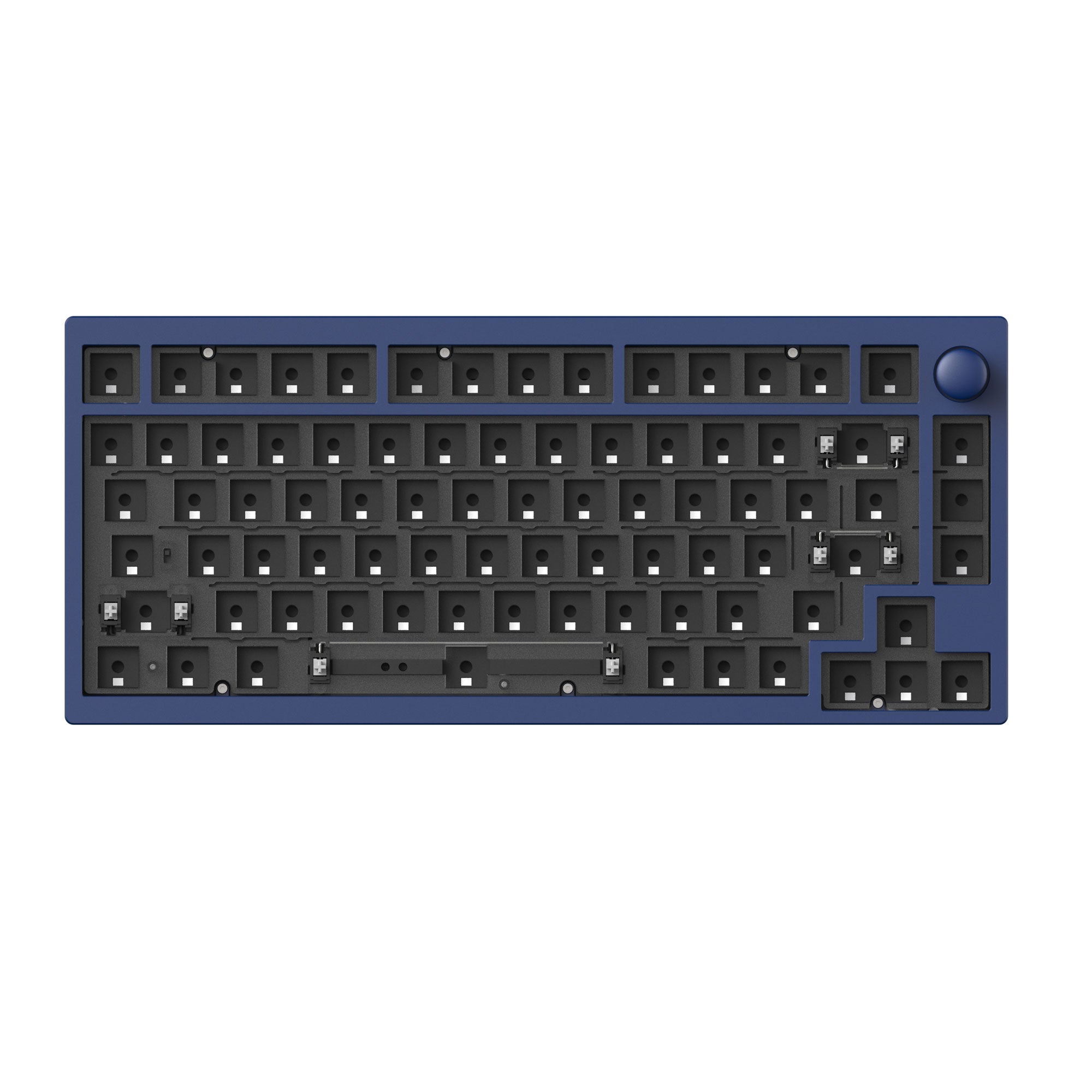

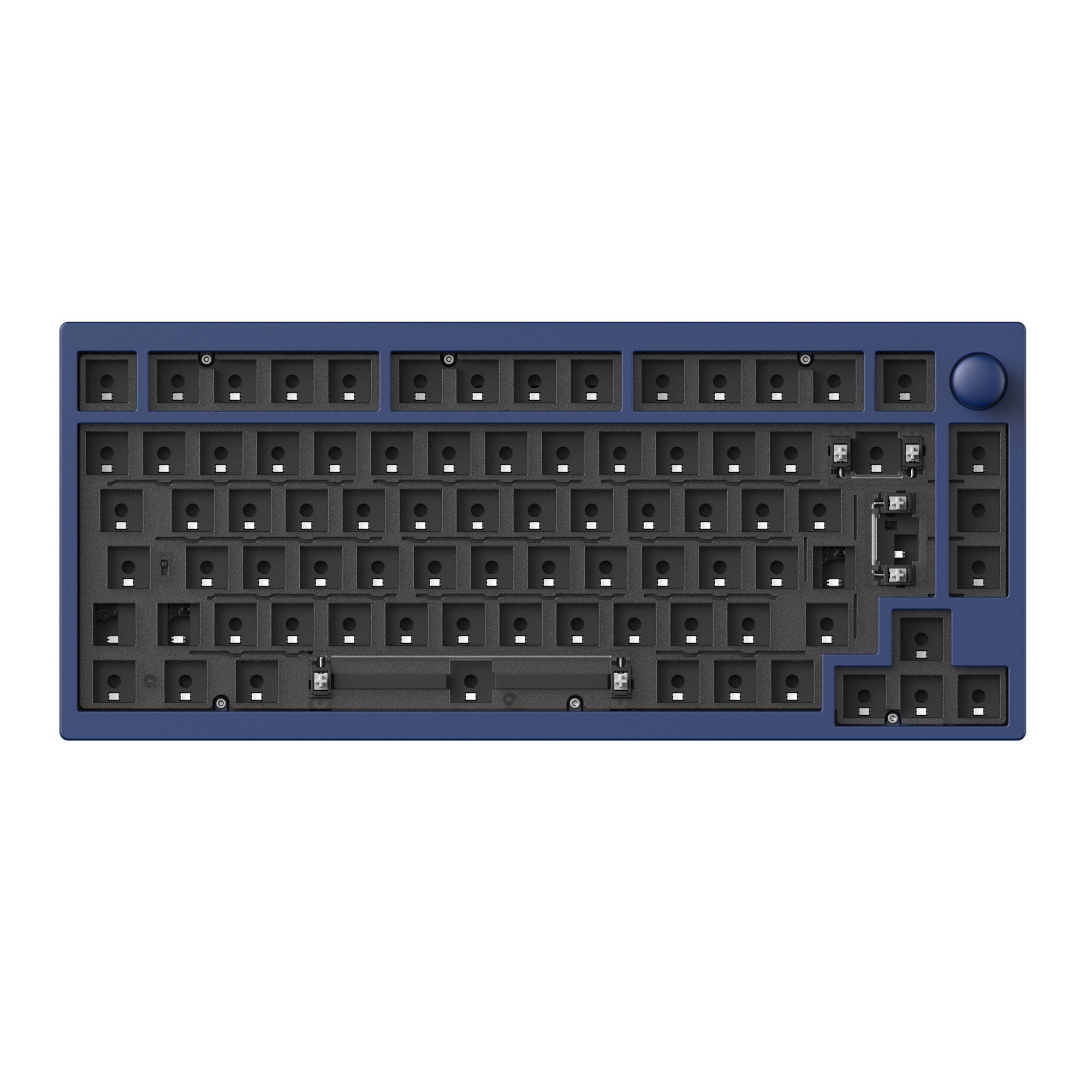

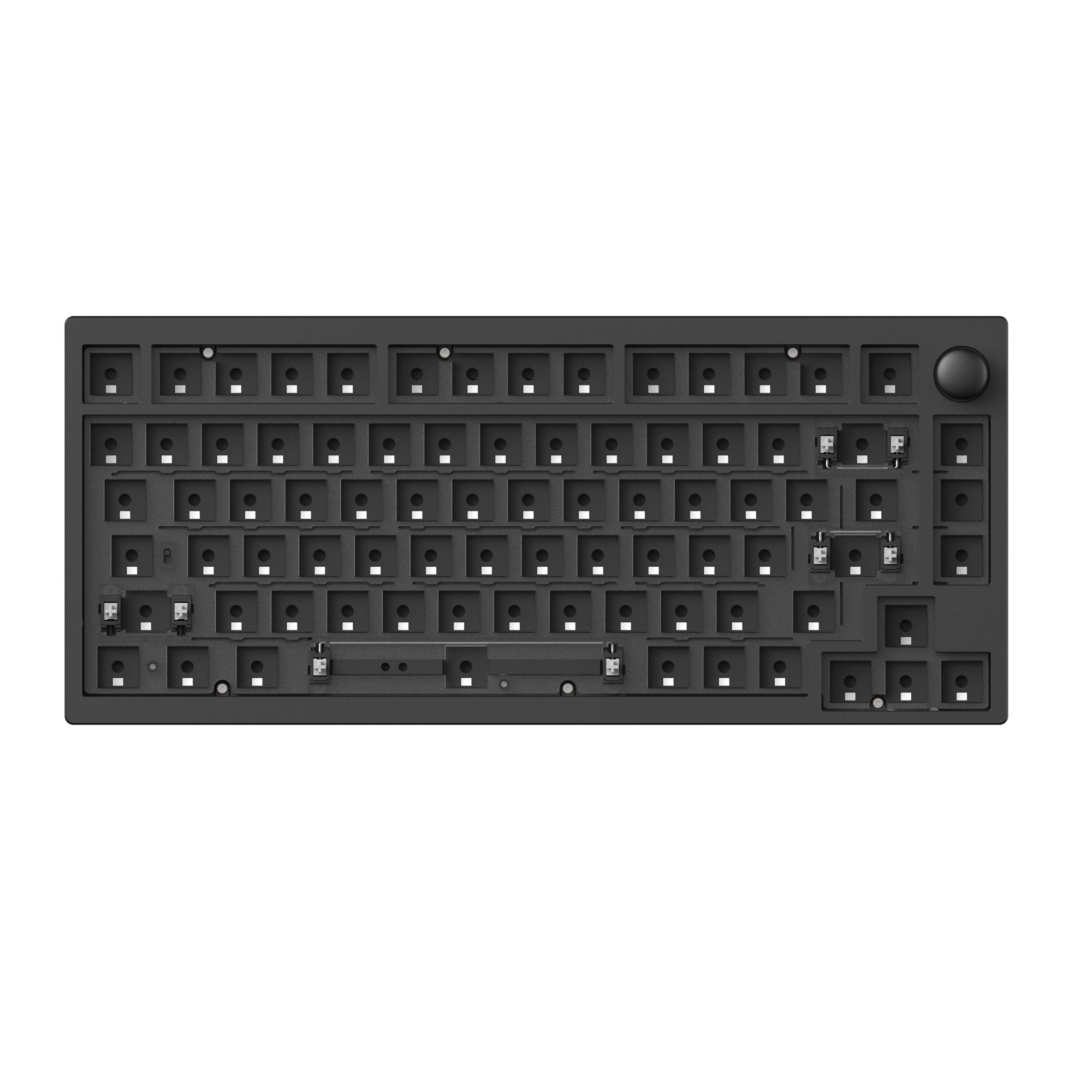

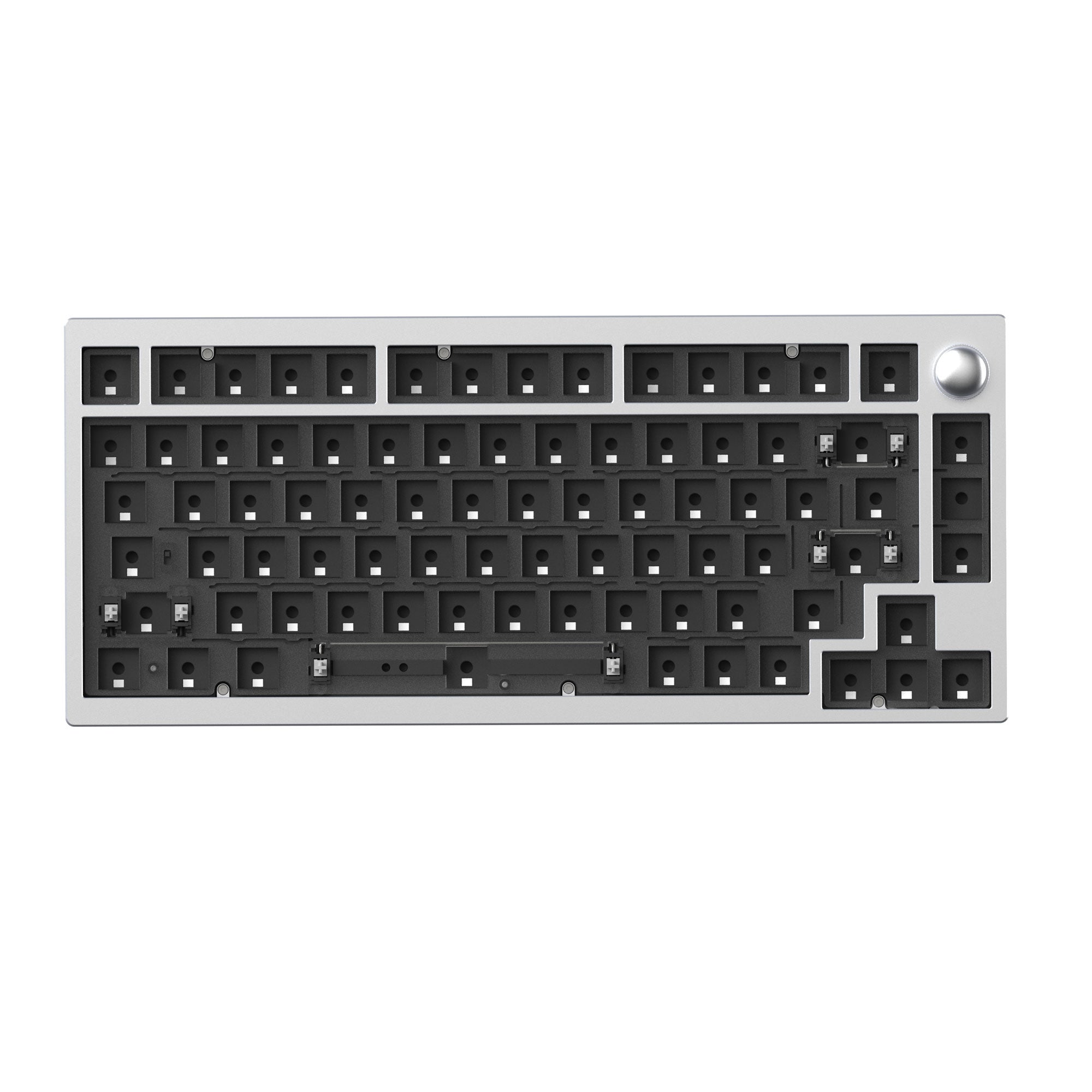

The Barebone version does not include the keycaps and switches.
No discount codes can be used for P1 and P1 Pro versions.



This is a pre-order product, and we plan to start shipping in June 2024.

Lemokey-P1-black-aluminum-frame.jpg__PID:d6e2bcd2-2434-4cfa-be34-99f15a359b24

LEMOKEY P1

Meet the Lemokey P1, a 75% layout QMK custom gaming keyboard with a CNC machined aluminum body. Packed with many pro-grade features of a lightning-fast 1000 Hz polling rate, knob design, gasket structure, upgraded acoustic foam, and Cherry PBT keycaps, the Lemokey P1 is ready to take you to dominate the game.

Lemokey-P1-Silver-04.jpg__PID:8893c870-55b5-483c-9cf7-59441386f82eLemokey-P1-Blue-03.jpg__PID:c87055b5-883c-4cf7-9944-1386f82ecc6b

Lemokey P1 is the best for those seeking the ultimate gaming and typing experience! As a brand of Keychron, the P1 is highly customizable, and you can assemble any part to suit your typing and gaming habits perfectly. The exclusive Keychron Super switch delivers a highly sensitive and accurate typing experience.

Features-of-Lemokey-P1-Pro.jpg__PID:bcd29b1d-8398-4263-bf9c-a10ac3e9755d
Customize Your P1

Choose the keycaps, switches, and more accessories for your P1.

Two Types of P1 To Choose From

Lemokey P1 is available in two connection mode versions: wired (P1) and wireless (P1 Pro) with Bluetooth 5.1, 2.4GHz wireless, and USB options, providing users with the versatility, convenience, and flexibility needed to use their devices in all types of situations. They share the features and functions except for the following distinctions:

Differences.jpg__PID:88812f9e-c953-4443-9542-51ae86446e8b

P1 Pro (Wireless Version)

ULTRA-LOW LATENCY CONNECTION

2.4 GHz Wireless With 1000 Hz Polling Rate

Designed with pro-grade 2.4 GHz wireless connectivity and a 1000 Hz polling rate, the P1 Pro offers ultra-low latency performance and fast response, crucial for gaming and real-time applications. Plus, it can support up to 3 device wireless connections with on-the-fly switching under Bluetooth mode for a seamless gaming experience that will keep you ahead of the competition.

Lemokey-P1-Black Aluminum-Custom-Gaming-Keyboard.jpg__PID:bebe02a6-c05d-4d94-832e-e1d6d45b8ef3

PLUG AND PLAY

Detachable Type-C USB Cable

Comes with a detachable Type-A to Type-C USB cable, the P1 provides a wired connectivity boasting a rapid 1000Hz polling rate with almost no lag for maximum stability. Just plug in the USB cable and start your gaming journey.

PLUG-AND-PLAY.jpg__PID:02a6c05d-7d94-432e-a1d6-d45b8ef32c92

CNC ALUMINUM FRAME

Robust And Refine Art Piece

Crafted from 6063 aluminum and completed through more than 24 manufacturing stages, including CNC machined, polished, anodized, and sandblasted, the P1 is a solid metal art on the desk. This premium material selection and elegant craftsmanship keep the keyboard structurally sound and stable even during intense gaming, providing a steady, assured base for every keystroke.

Lemokey-P1-Black-03.jpg__PID:39658893-c870-45b5-883c-9cf759441386

MIRROR POLISH FINISH

The back of the keyboard is decorated with a mirror-polished strip which is a highly reflective, smooth finish with a scratch-free appearance.

Lemokey-P1-Mirror-Polish-Strip-Finish.jpg__PID:3c8ab9df-dc8a-4689-9433-6feaf823df67

ENHANCED ACOUSTIC FOAMS

Dampened Sound

A combination of premium acoustic foams such as IXPE, PET, and absorbing foam has been added to enhance your typing experience further. This design can significantly reduce the vibration created from keystrokes and dampen sound at the same time, providing a more satisfying sound and feel.

Structure-of-the-P1.jpg__PID:6fcacd14-0f42-40b5-a859-2a656479911d
Structure-of-the-P1 mobile.jpg__PID:cd140f42-30b5-4859-aa65-6479911d9b7c
Hot-Swappable.jpg__PID:cf7590e6-d5e2-4bdb-849c-99563622bc64

HOT-SWAPPABLE

Customize Your Typing Experience

The P1 features hot-swappable switch sockets, which allow you to customize your typing experience. With the hot-swappable feature, you can plug in or change every switch on the P1 with almost all of the 3-pin or 5-pin MX-style mechanical switches on the market (including Cherry, Gateron, Kailh, Panda, etc.) without soldering required.

GASKET MOUNT DESIGN

Comfortable Typing Experience

We adopt a gasket mount design on the keyboard PCB to reduce acoustic resonance. This mounting method increases the keyboard's flexibility and provides a cushioned feel, making P1 more comfortable and consistent for extended typing and gaming sessions.

P1-gasket-mount.jpg__PID:b3d29776-1442-4cb3-90a4-a987f394727d
An-Epic-Core.jpg__PID:91ce093c-9c6a-4190-ad74-c6ee9f1827fa

EPIC CORE

Powerful Chip (MCU) With 256K Flash

A brand new powerful ultra-low-power Arm chip (MCU) that is armed with 256K Flash to provide more flexibility for developers. The polling rate is 1000 Hz on 2.4GHz and wired modes right out of the box, which makes latency non-existent for the competitive gamer.

DOUBLE-SHOT PBT KEYCAPS

Greater Durability

Durable keycaps are crucial for gaming keyboards and will impact your keystroke experience. The P1 is equipped with premium non-shine through double-shot Cherry PBT Keycaps that are durable, anti-oil, and wear-resistant for optimal gaming performance throughout the keyboard's life.

Lemokey-P1-Silver-Keycaps.jpg__PID:4e9cb867-93ed-41cf-b590-e6d5e27bdb84
Cherry Double-Shot PBT Keycaps

Programmable

KNOB & MACRO COLUMN

Upgrade your gaming experience with the additional macro keys and aluminum rotary encoder. It allows you easily customize the knob to your desired key or macro commands like zooming in/out, adjusting screen brightness, or volume, etc

Knob & Macro Column of Lemokey L3
Lemokey-P1-Silver.jpg__PID:98788fcd-eedb-40c3-8ed6-c8297baf444d
Lemokey-P1-Silver.jpg__PID:98788fcd-eedb-40c3-8ed6-c8297baf444d

LEMOKEY LAUNCHER WEB APP

Remap Any Of Your Desired Key

Based on QMK firmware, the P1 can support VIA software and our Lemokey Launcher web app. With the Lemokey web app, you can effortlessly remap each key and knob function, customize any macro command, shortcuts, or key combinations to unlock many more options, and make complex actions simple to enhance gaming or work efficiency. Take control and optimize your productivity like never before.

LEMOKEY LAUNCHER WEB APP.jpg__PID:c8297baf-444d-4878-a7ec-c8d8b6d9417c

Connect the P1 to your device with a cable, open our Lemokey web app, and then you can remap any key you want on any system (macOS, Windows, or Linux). It’s never been so intuitive to personalize your very own keymap.

Get the P1 keymap working on VIA

Since the VIA code for the P1 is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file (ANSI or ISO) below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the P1 keymap working on VIA.

For Mac and Even More

EXTRA COMPLIMENTARY KEYCAPS

For every L3 Fully Assembled version, we will give away 11 complimentary extra keycaps.  We want to offer you the ability to customize your L3 even more.

For Carbon Black Frame

For Space Silver Frame

For Navy Blue Frame

SOUTH-FACING RGB

Unlock Dynamic Backlit Control

It comes with 22 preset RGB backlight settings. You can further fine-tune the RGB hue, saturation, brightness, effect speed, and different modes and create more of your own unique style by remapping these keys to unlock vivid dynamic RGB lighting control. The south-facing RGB is designed to better illuminate the backlight from the typist's perspective when the non-shine-through PBT keycaps are installed.

EXCLUSIVE KEYCHRON SUPER SWITCH

More Precise And Smoother

Our exclusive Keychron Super switch adopts a new mold with unparalleled precision. Its red switch and banana switch are engineered with a double-stage spring that reduces the tolerance of spring force and delivers a consistent typing experience. All switches' socket dome on the bottom housing is equipped with a mini hole to minimize air resistance for a smoother touch when pressing. The circular arched light affection structure on the transparent top housing has high light transmittance, making light more consistent and brighter.

Keychron-Super-Switch-Structure.jpg__PID:b625b87e-92ec-4040-8774-023a5e57b0c4

The Keychron Super Switch is built to last with a lifespan of 50 million clicks and provides great reliability and high performance for fast typing and competitive gaming.

Keychron-Super-Switch-Features.jpg__PID:bd87b757-7fc8-4bfa-8ace-badc0b9990ec

SCREW-IN STABILIZER

Smooth And Stable

The built-in PCB-mounted screw-in stabilizer minimizes the rattle and wobble of larger keys such as the space bar, shift, enter, and backspace keys. It ensures large keys operate consistently no matter where you press for a smooth typing experience.

PCB screw-in stabilizers of Lemokey L3
PCB screw-in stabilizers of Lemokey L3

Looking for ISO Layout?

The L3 ISO collection comes with fully assembled keyboards with 🇬🇧UK, 🇩🇪German, 🇩🇰🇫🇮🇳🇴🇸🇪Nordic,  and🇨🇭Swiss layout, and the “Barebone ISO" option is suitable for all ISO countries (e.g.: 🇮🇹Italy, 🇵🇹Portuguese, 🇭🇺Hungary, etc.) to build their keyboard with keycaps in their preferred languages and switches.

UK-ISO-Layout.jpg__PID:a0f22030-f012-4cf9-87bf-7bb2e2b21d45

What's in the box?

P1-Full-Assembled-Package-List.jpg__PID:ae86446e-8b37-4cdc-94a3-57c83e84367a
P1-Barebone-Package-List.jpeg__PID:10360427-b6dc-48f8-aea5-664a2e05cd7c

Specs

Dimension322 x 140 mm (12,68 x 5.51 inches)
Number of Keys81
LayoutANSI (US) Fully Asssembled and Barebone/ISO (EU) Barebone
Angle5.5°
Front Height19.22 mm (without keycaps)
Back Height31.43 mm (without keycaps)
Weight (Fully Assembled version)P1 Pro: 1650±50 g
P1: 1720±50 g
Frame MaterialFull CNC machined aluminum
Plate MaterialPC
KeycapCherry double-shot PBT keycaps (Non-backlight shine through)
SwitchKeychron Super mechanical (Fully Assembled version)
StabilizerScrew-in PCB stabilizer
Switch FaceSouth-facing RGB
Backlight22 types of RGB backlight options plus endless possibilities
Hot-swappableYes. Compatible with most of the 3 pin & 5 pin MX mechanical switches such as Gateron, Cherry MX and Kailh, etc.
MCUWB32F3G71RCT6 (256KB Flash)
Cable Length1.8 m
Polling Rate1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
N-Key Rollover (NKRO)Yes for both wireless and wired modes
Operating Environment-10 to 50℃
Battery4000 mAh Rechargeable li-polymer battery
BT Working Time (Backlit off)Up to 200 hours (Lab test result may vary by actual use)
BT Working Time (RGB)Up to 100 hours (Lowest brightness)
Charging TimeAround 5 hours
Charging PortUSB type-C
Bluetooth Version5.1
Compatible SystemWindows/ macOS/ Linux
ConnectivityP1 Pro: 2.4 GHz/Bluetooth/wired

P1: Wired
Bluetooth Device NameLemokey P1 Pro
Bluetooth Operating DistanceWithin 10 meters (Open space)

Learn more about the Lemokey P1 / P1 Pro such as the shortcuts, assembling guide, factory reset, and more in the FAQ section.
