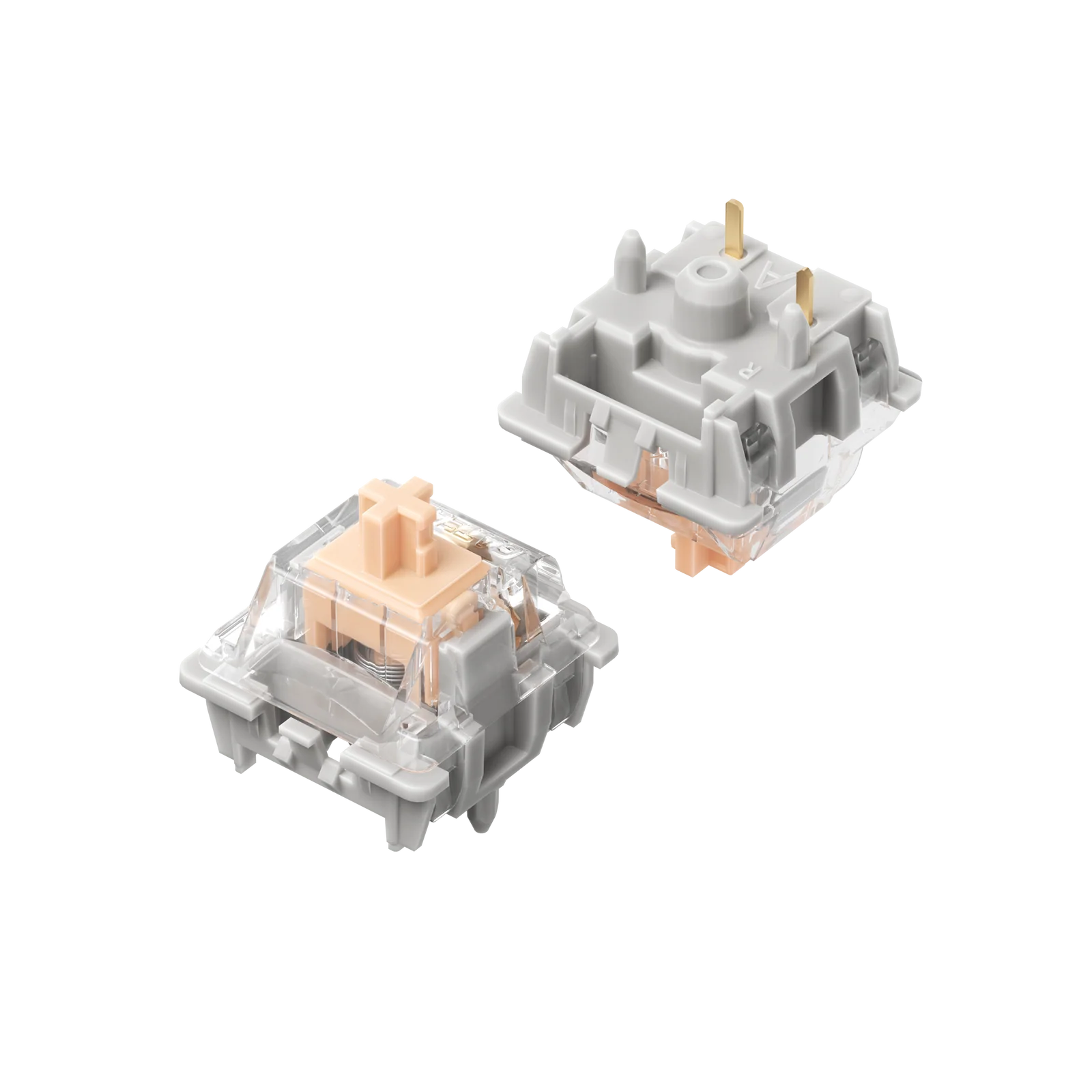

NuPhy Max Switches

Compatibility for NuPhy Keyboards
Halo75 V2/ Halo96 V2
Gem80
Kick75

Compatibility
Cherry MX and MX-style keyboards

type
linear

travel distance
pre-travel: 1.8±0.4mm
total travel: 3.4+0.2mm

force
operating force: 45±15gf
end force: 58±5gf

mounting pins
5-pin

materials
stem: ly
top housing: pom
bottom housing: nylon pa66

spring
21mm single-stage spring

factory lube
yes

type
tactile

travel distance
pre-travel: 1.8±0.4mm
total travel: 3.4+0.2mm

force
operating force: 50±15gf
end force: 65±5gf

mounting pins
5-pin

materials
stem: ly
top housing: pom
bottom housing: nylon pa66

spring
21mm single-stage spring

factory lube
yes

type
linear

travel distance
pre-travel: 1.2±0.4mm
total travel: 3.4+0.2mm

force
operating force: 37±15gf
end force: 45±5gf

mounting pins
5-pin

materials
stem: y3
top housing: pom
bottom housing: nylon pa66

spring
21mm double-stage spring

factory lube
yes

type
linear

travel distance
pre-travel: 2.0±0.4mm
total travel: 3.8+0.2mm

force
operating force: 42±15gf
end force: 55±5gf

mounting pins
5-pin

materials
stem: pom
top housing: pc
bottom housing: nylon pa66

spring
20.5 mm single-stage spring

factory lube
yes
