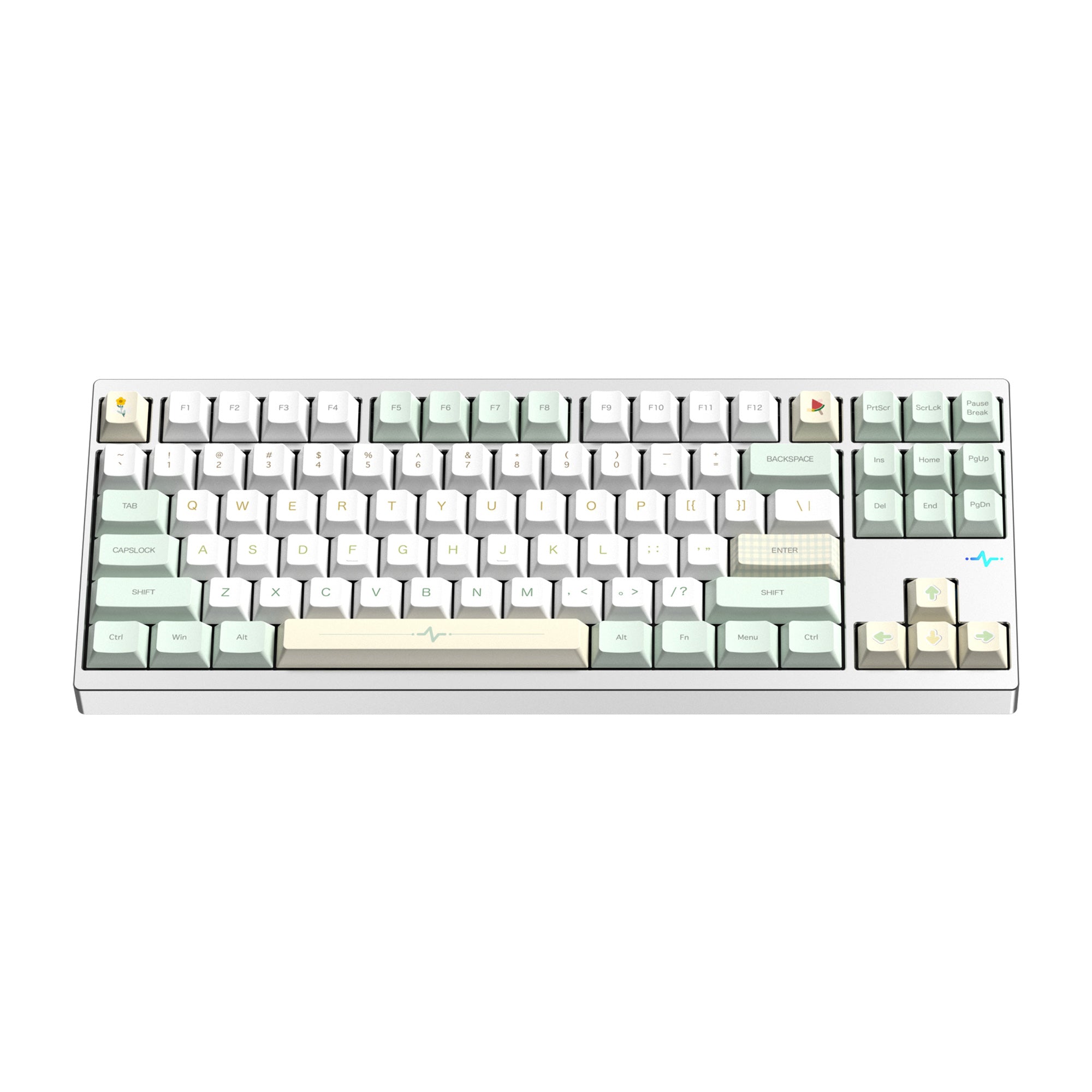

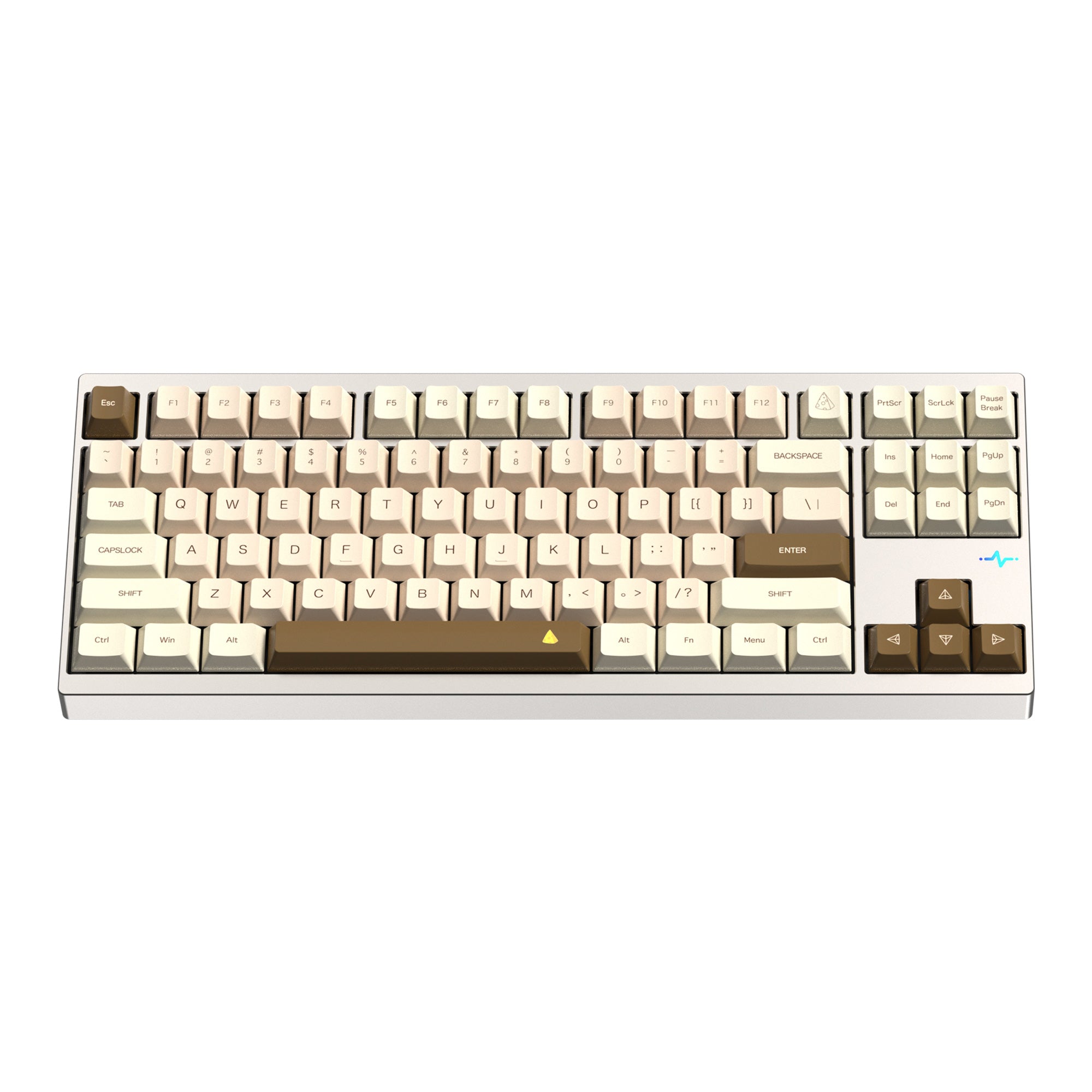

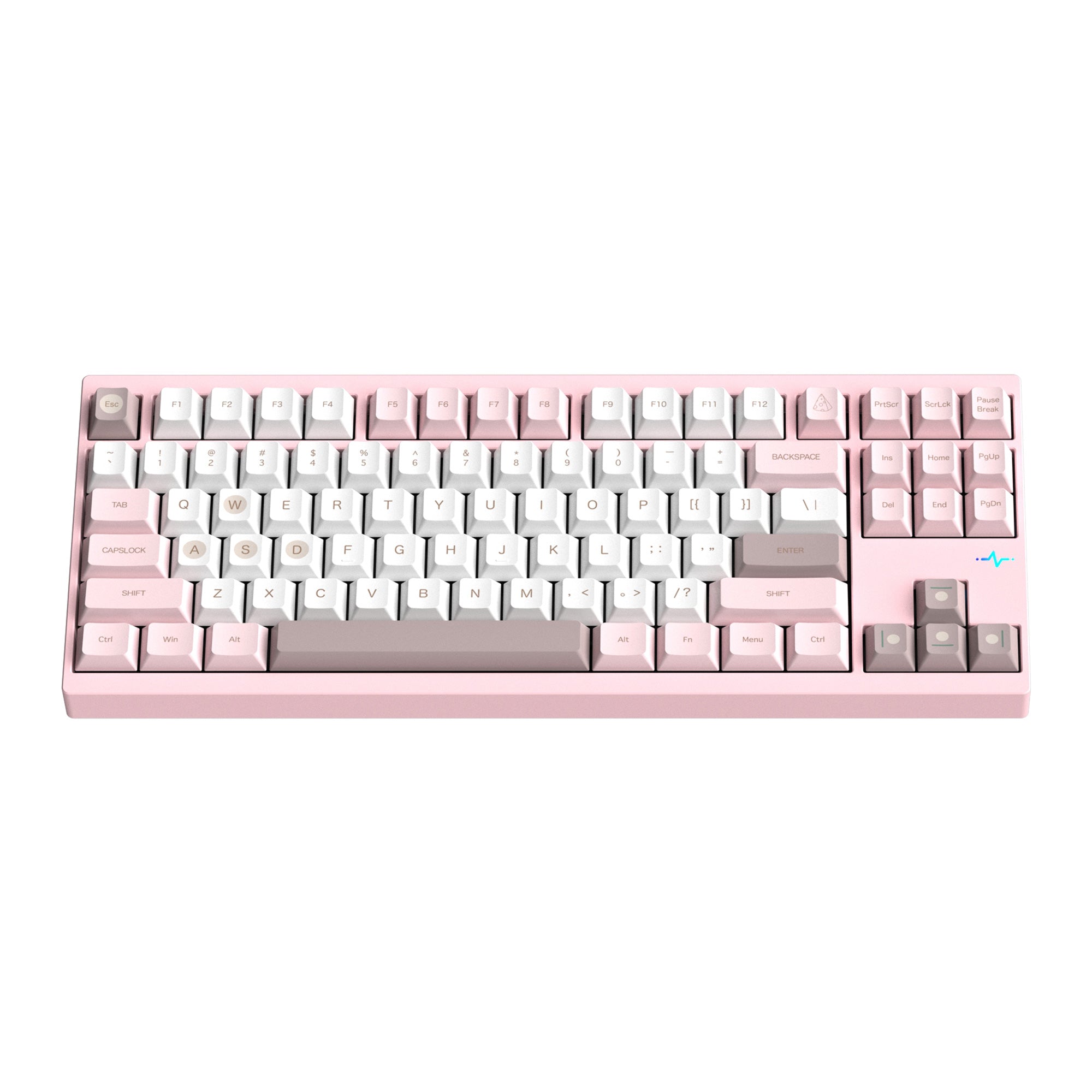

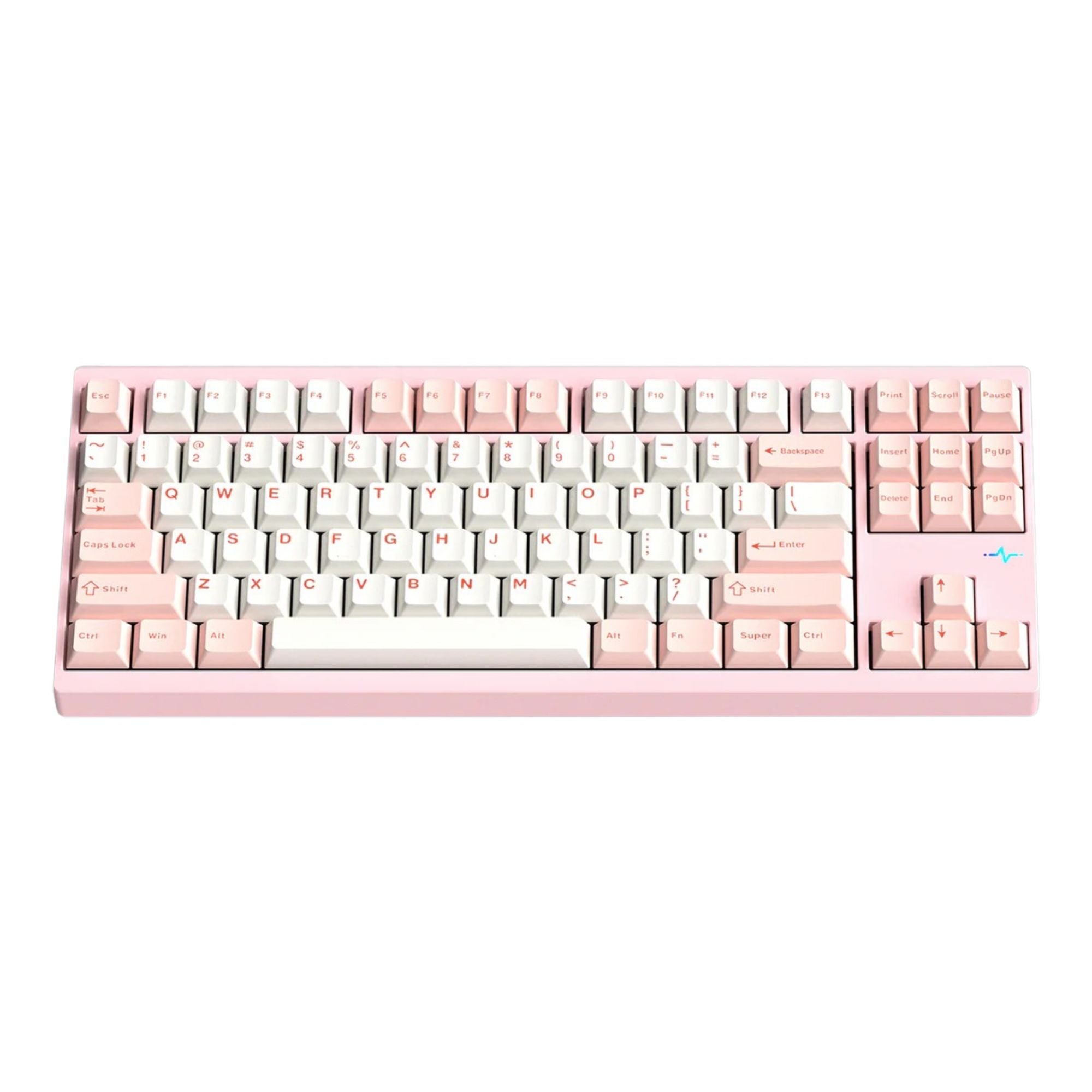

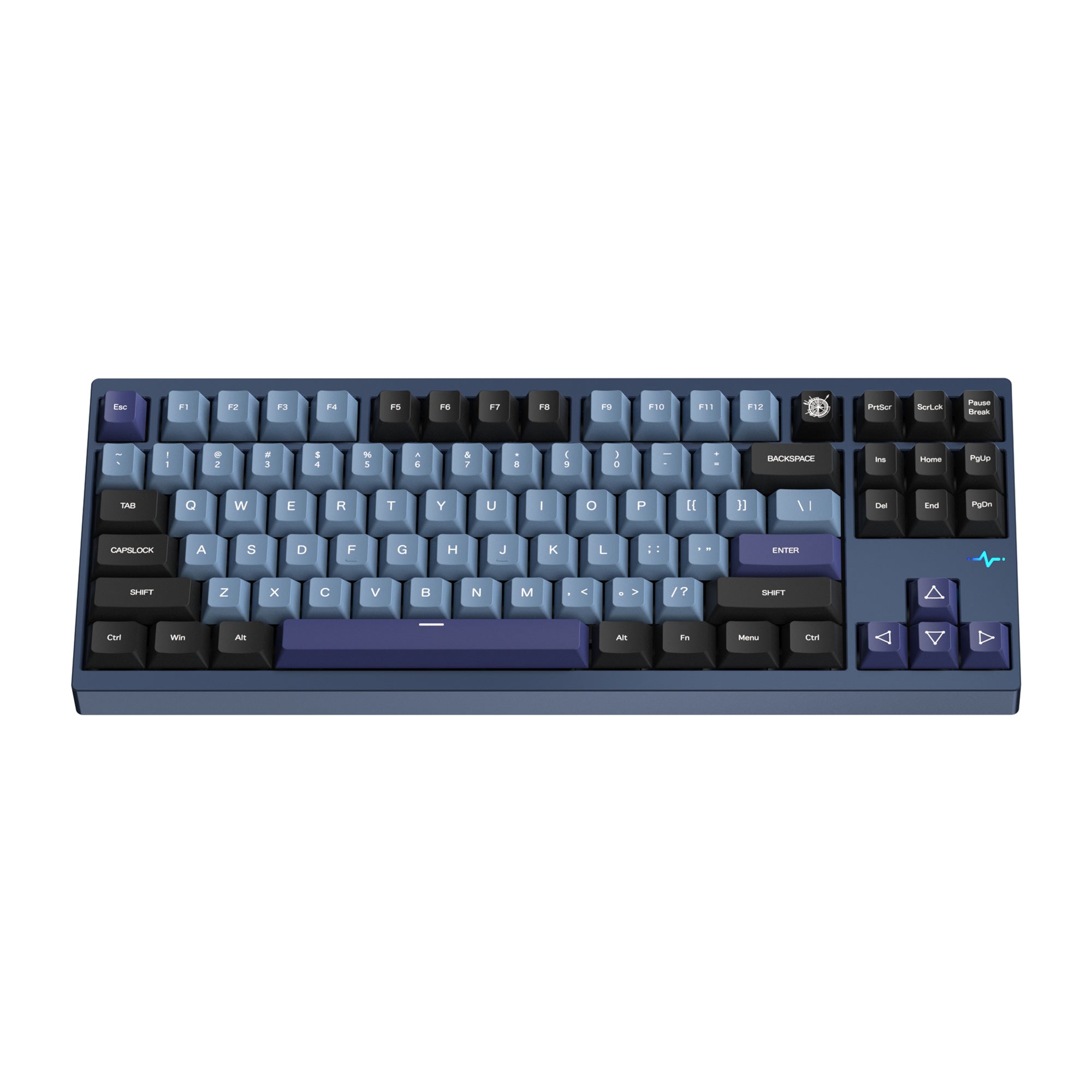

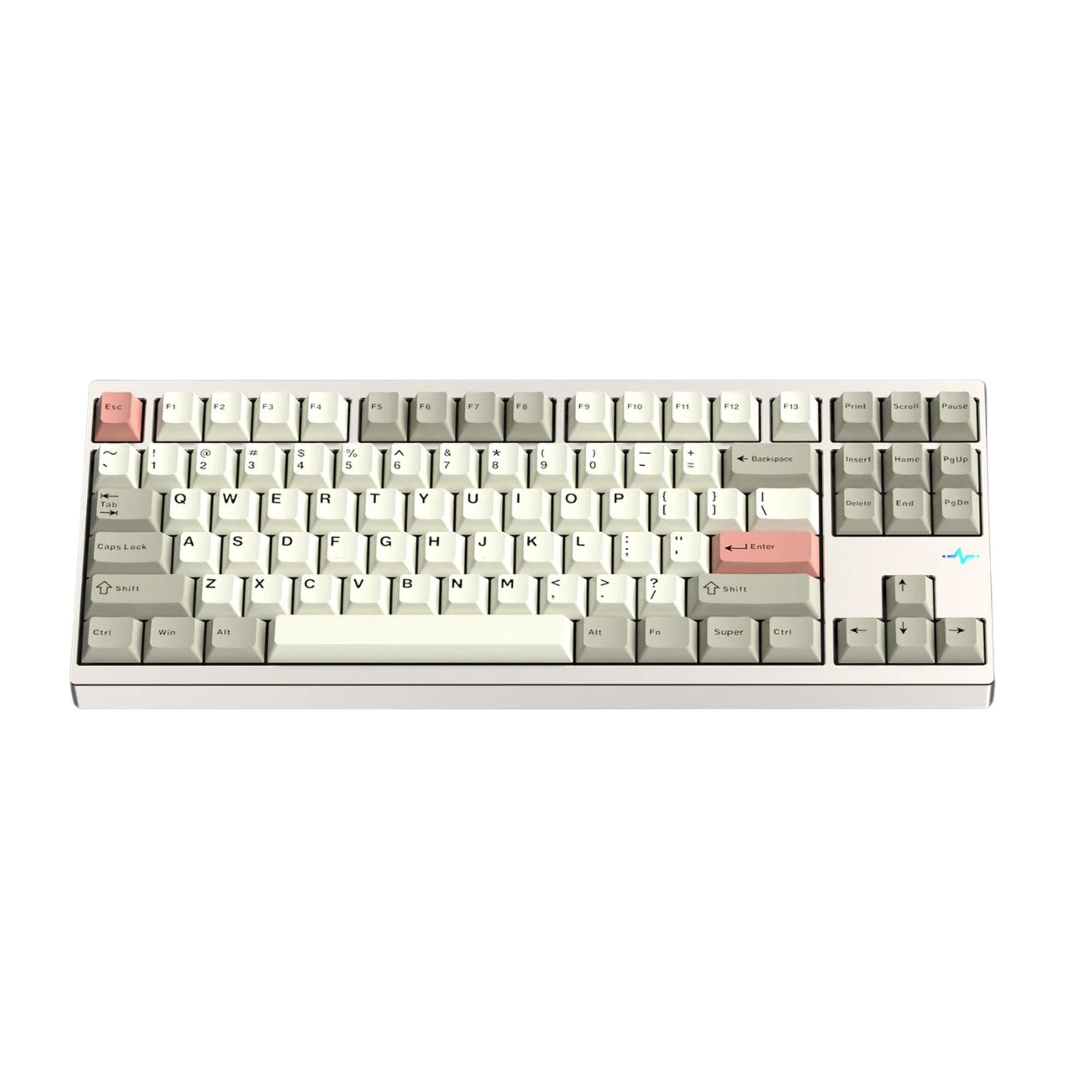

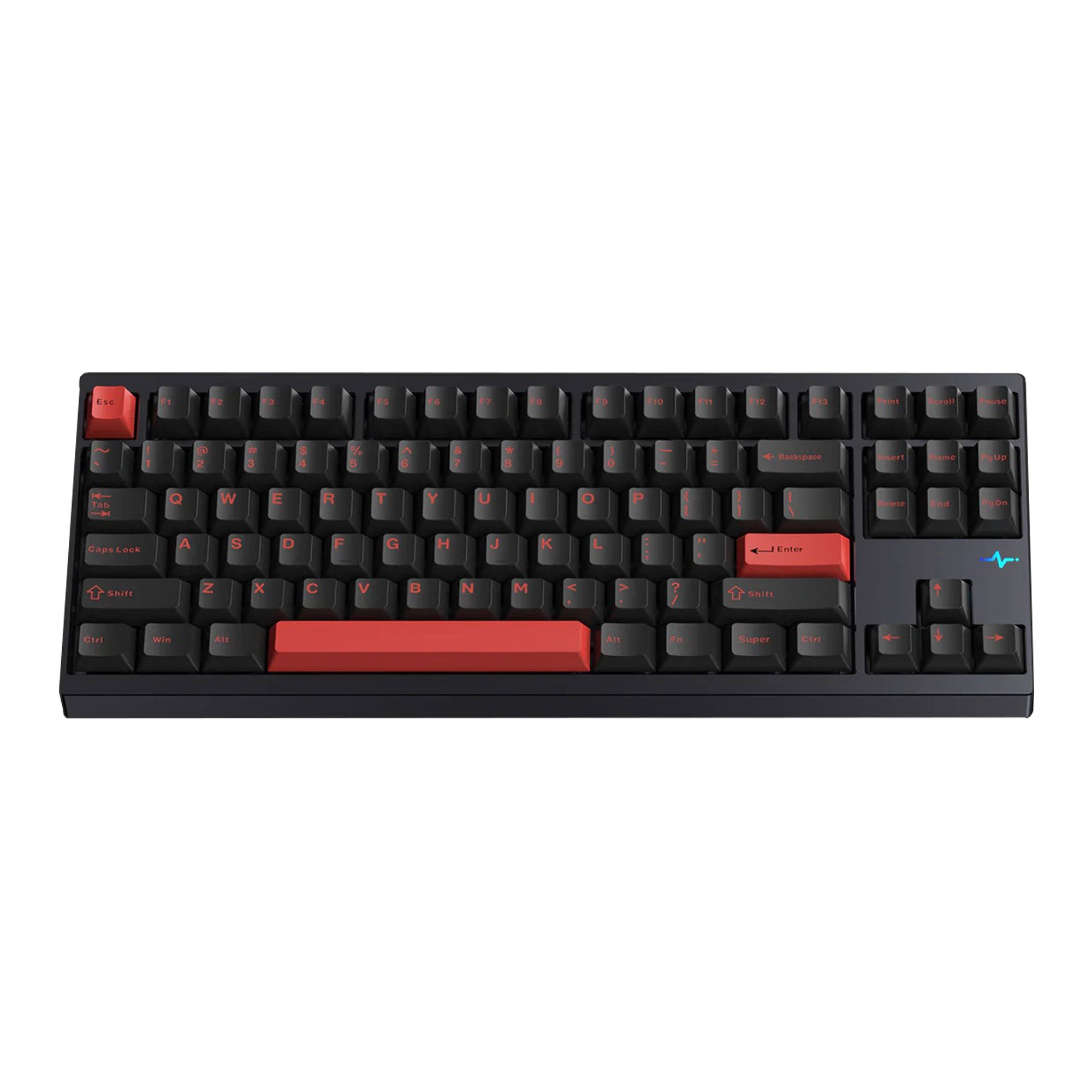

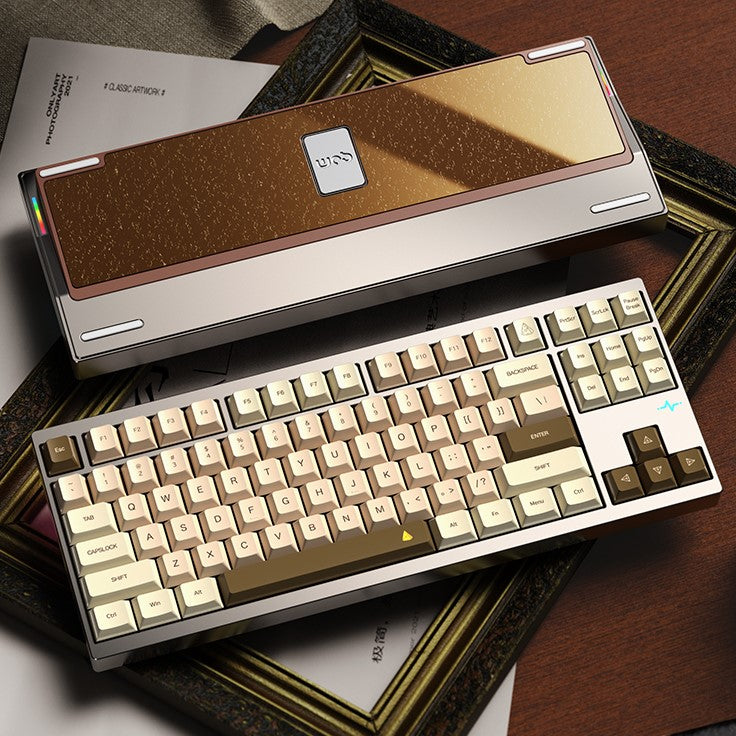

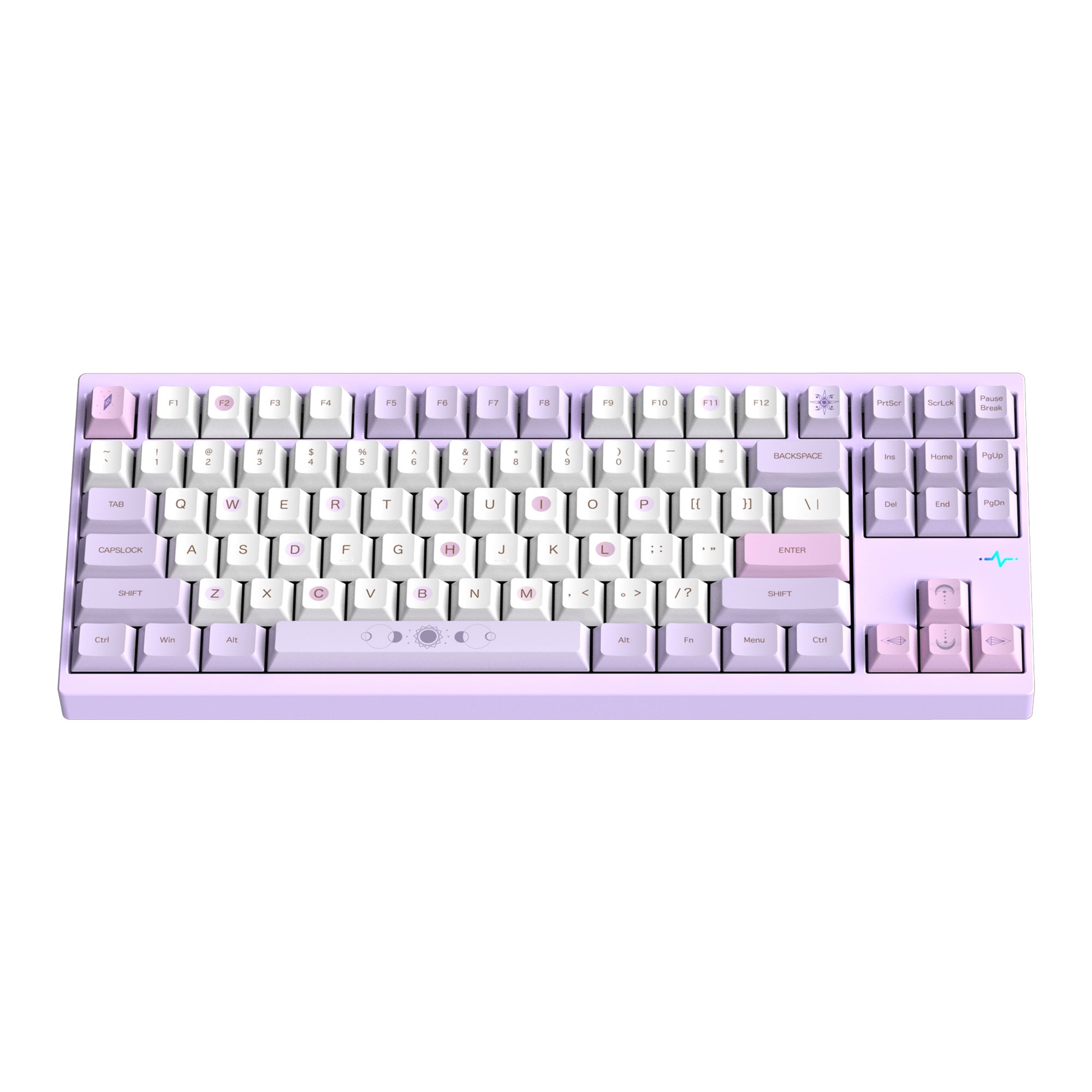

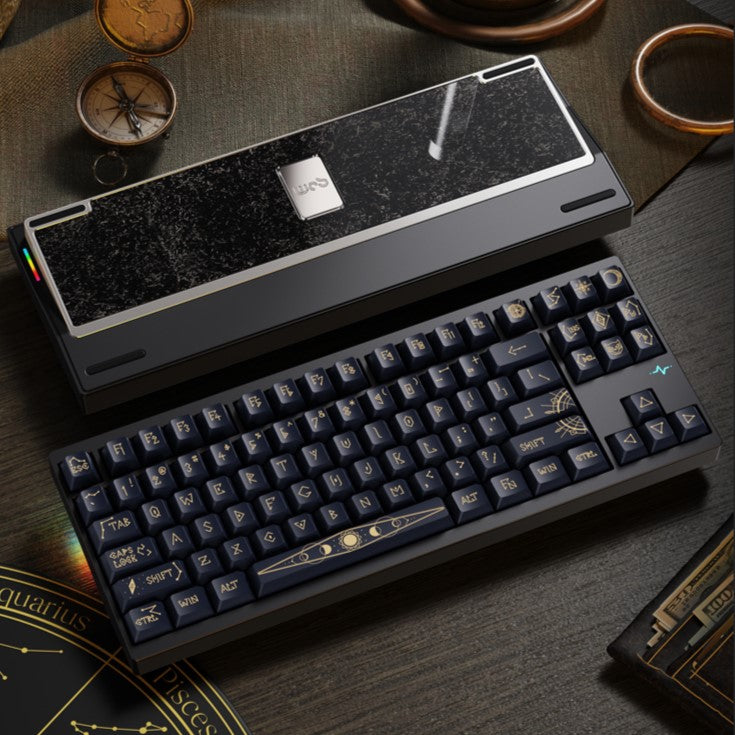

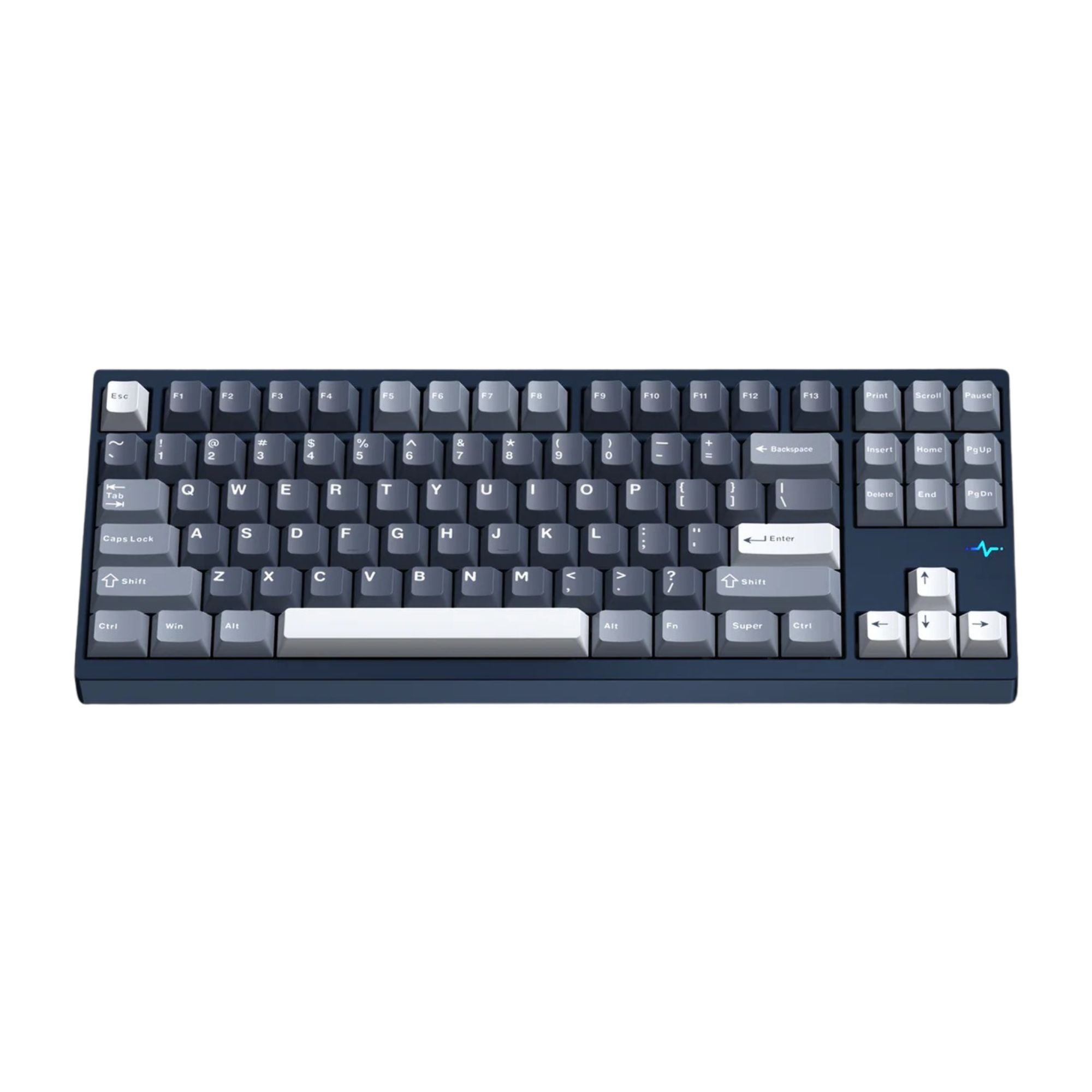

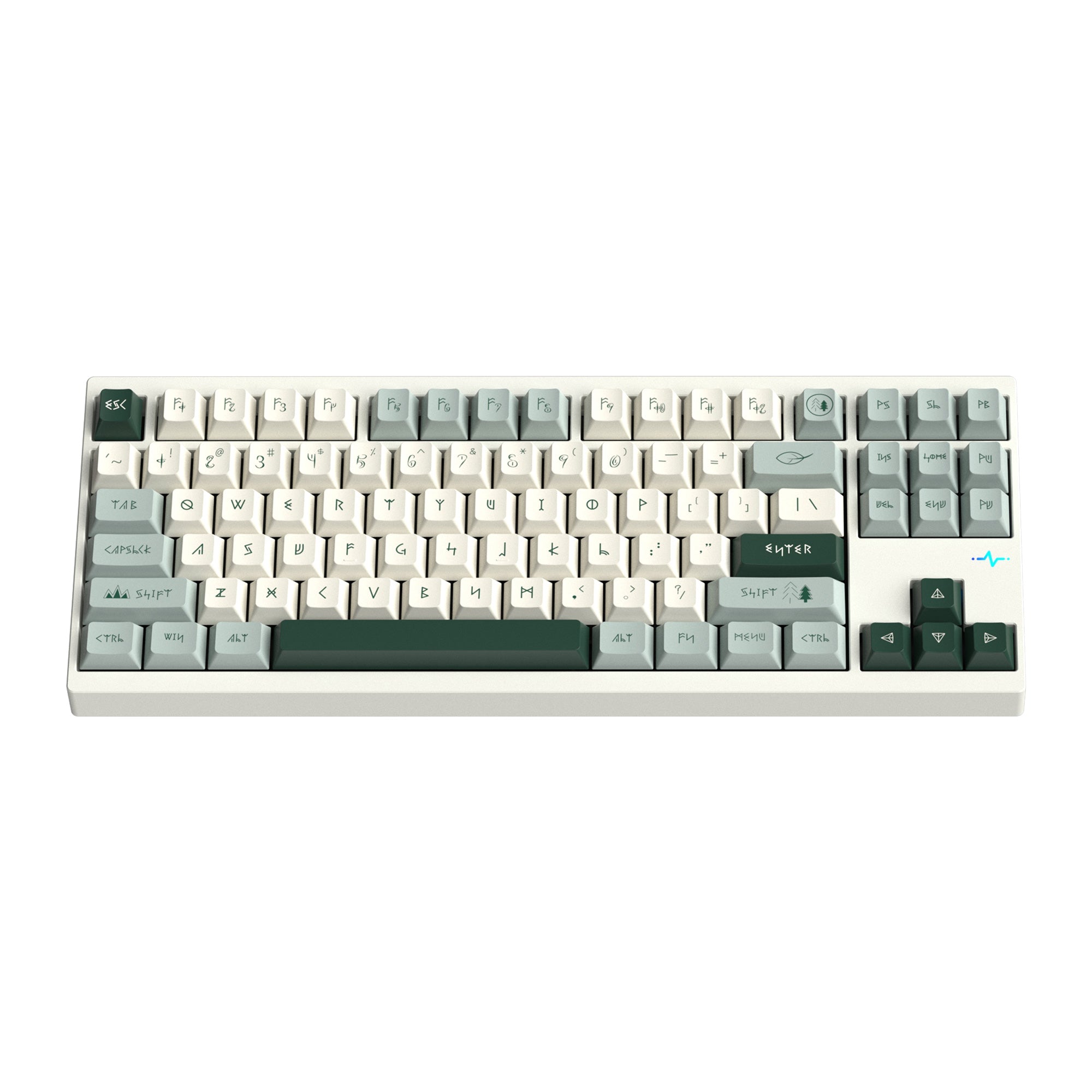

WOBKEY Crush80 Reboot Pro Wireless Mechanical Keyboard
Manual:
Download JSON for VIA Below
Crush 80 Reboot Pro JSON
Specifications
- Hot Swappable PCB & 7500mAh battery
- CNC 6063 aluminum case with a ball-catch quick release design for a fast and toolless disassembly
- Magnetic POGO battery pin for connecting the battery and PCB for a wire-free configuration
- Connect 3 ways- wired with USB-C cable or wirelessly with Bluetooth 5.0 and 2.4 GHz
- Programmable with VIA
- Poron case foam layers with poron plate foam, PET switch film and IXPE switch pads for enhanced acoustics
- Double Shot / Dye Sub PBT keycaps
- Dedicated magnetic receiver storage on the backplate
- South facing + Polar Ocean Switch
- Comes with a custom carrying case
- Black hotswap RGB PCB with FR4 plate
Choose options
Upgraded 5-Sec Quick Release
Magnetic ball-catch structure for fast disassembly.
Toolless design gives you the satisfying signature click when you reinstall the top frame. Extra silicone padding prevents scratching on the upper frame.
Hot Swappable PCB & Battery
Take your PCB out with elegance and no more fiddling with flex cables.
Crush 80 uses magnetic POGO pins to connect your PCB to the battery compartment sandwitched between 2 pieces of backplates.
Dedicated magnetic receiver storage
Keep your receiver safe, and with style. Magnetic storage prevents your receiver from rattling while stored.

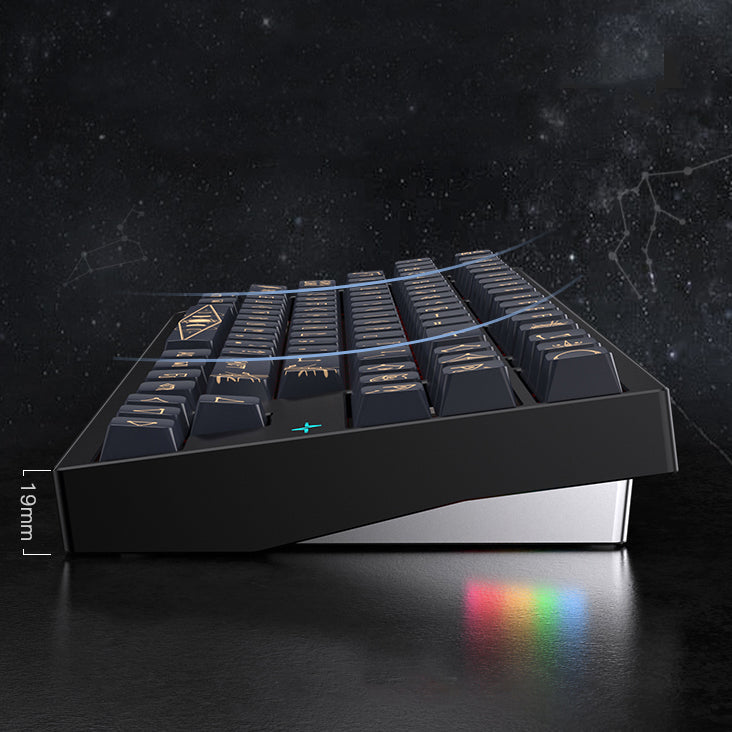

Stealthy Side RGB
RGB lights create atmospheric glow on the sides of your keyboard, which can be toggled on an off to your wish.
New Sound Profile
Crush 80 Reboot is designed with the aim of a new sound profile that sounds more firm and crisp.
Additional poron case foam and Re-optimized foam layering
Additional PCB film - To create a more consistent sound for the wider keys.
Crush80 Reboot carried over most praised features from its predecessor, Rainy75:
• CNC aluminum body

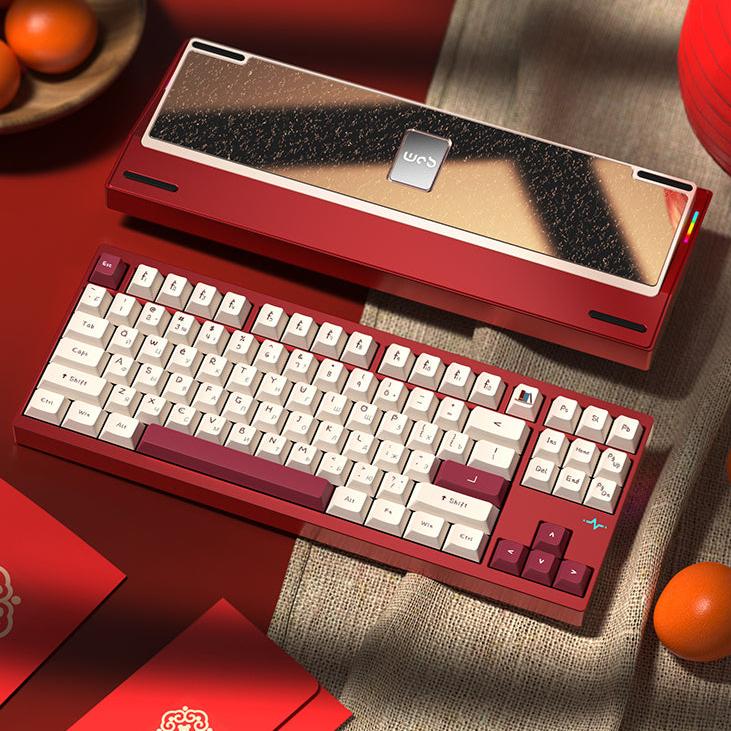

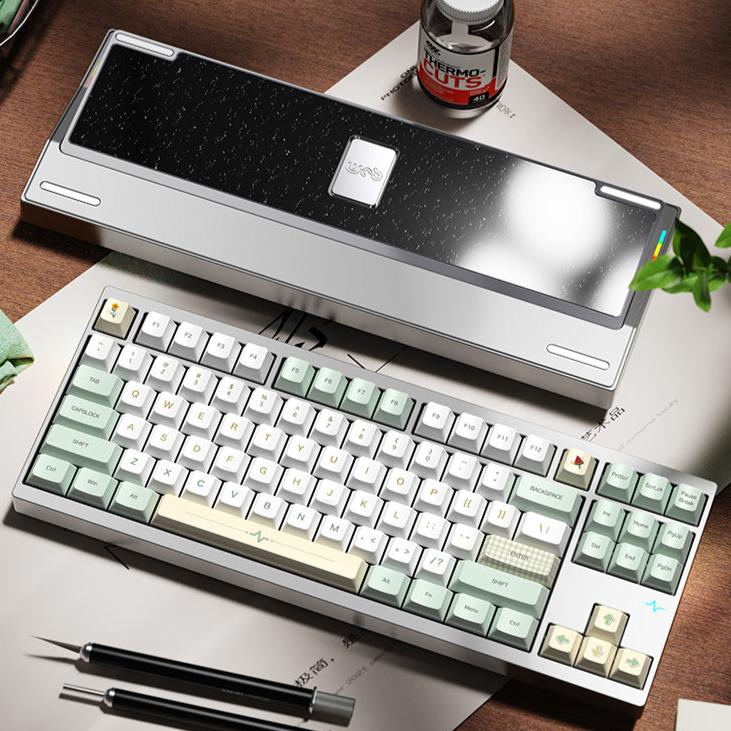

• Glittering backweight
• Vibrant colors
• High PCB compatiblity (split space/stepped caps/iso layout)
Polar Ocean Switch
1. Contact Resistance: 500mω Max.
2. Operating Temperature: -25℃ to +85℃
3. Operating Life: More than 50000000 Cycle
4. Operation: 45±5gf.
5. Paragraph: 50±5gf.
6. Conduction Strpke (PT): 2.0±0.40mm
7. The Whole Trip (OP): 3.6±0.4mm
8. CK Value: 50% - 80%
